Bakon BK946S Preheating Station – 400 W

Bakon BK946S Preheating Station – 400 W

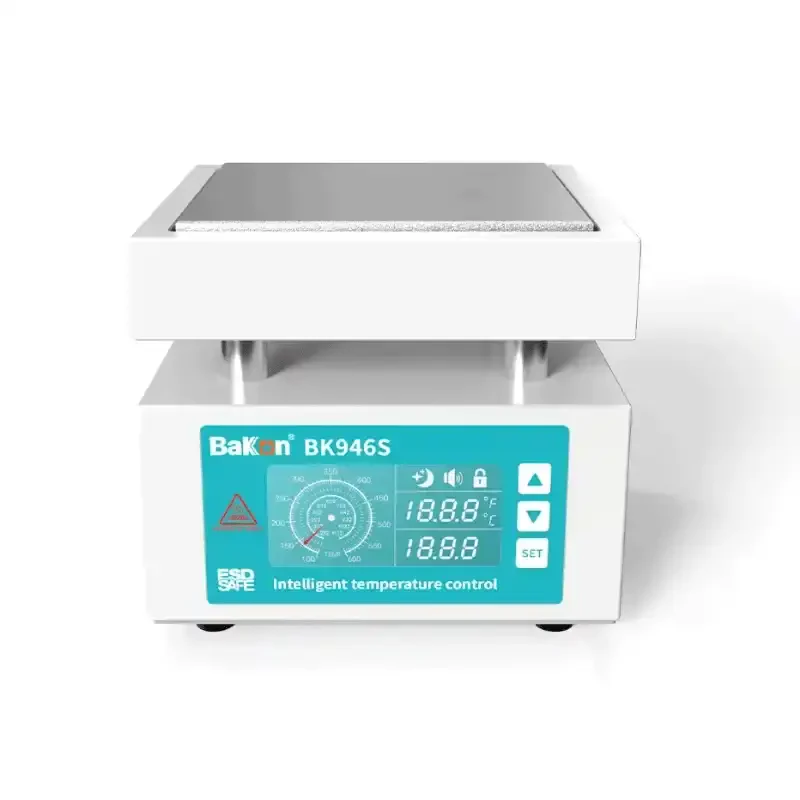

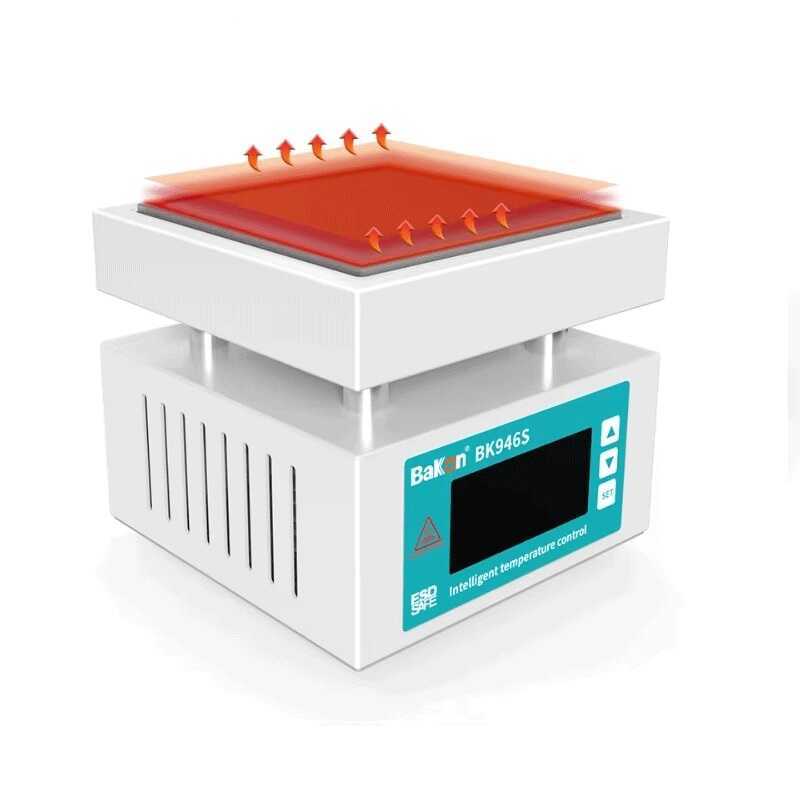

The Bakon BK946S is an advanced preheating station used in professional electronics repair and production processes, featuring a compact design and a high-performance 400 W heating capacity. By preheating small and medium-sized PCBs, it enables safer and more stable results for soldering, SMD removal/installation, repair, and modification operations. It minimizes thermal stress issues commonly encountered on multilayer PCBs and helps protect sensitive components.

Thanks to its aluminum alloy heating plate and special tubular heating technology, it provides fast and balanced heat transfer. Its wide temperature range of 100–380°C ensures versatile use. The advanced LED display clearly shows real-time temperature data. With its built-in temperature sensor and special IC control circuit, temperature stability is significantly improved.

With its safety-focused design, the BK946S makes the working environment more reliable. Protective edges help prevent contact-related accidents, while the combination of radiation and air circulation ensures effective heat distribution. Its structure extends the lifespan of the heating element and chips, offering high durability during long-term use.

Bakon BK946S Preheating Station Technical Specifications:

• Brand: Bakon

• Model: BK946S

• Product Code: 12.02.09.48

• Operating Voltage: AC 220V

• Power: 400 W

• Display: LED

• Platform Size: 100 × 100 mm

• Temperature Control Range: 50°C – 350°C

• Constant Temperature Stability: ±2°C

• Dimensions: 120 × 120 × 120 mm

• Total Weight: 1.3 kg

• Package Size: 175 × 175 × 175 mm

• Gross Weight: 1.5 kg

Package Contents:

• 1 × Main Unit

• 1 × Power Cable

• 1 × User Manual

• 1 × Warranty Certificate

• 1 × Technical Service Form

Useful Links / Documents:

• Bakon 946 Series Preheating Station User Manual
