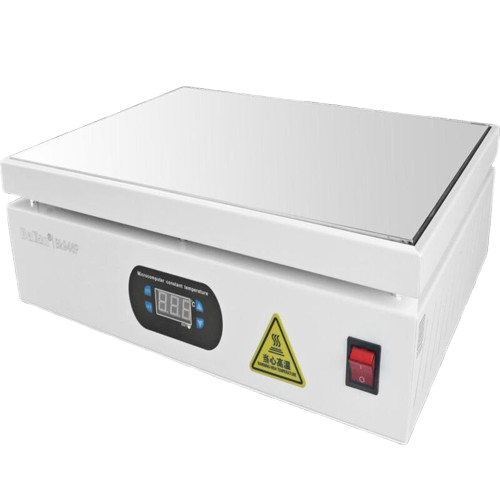

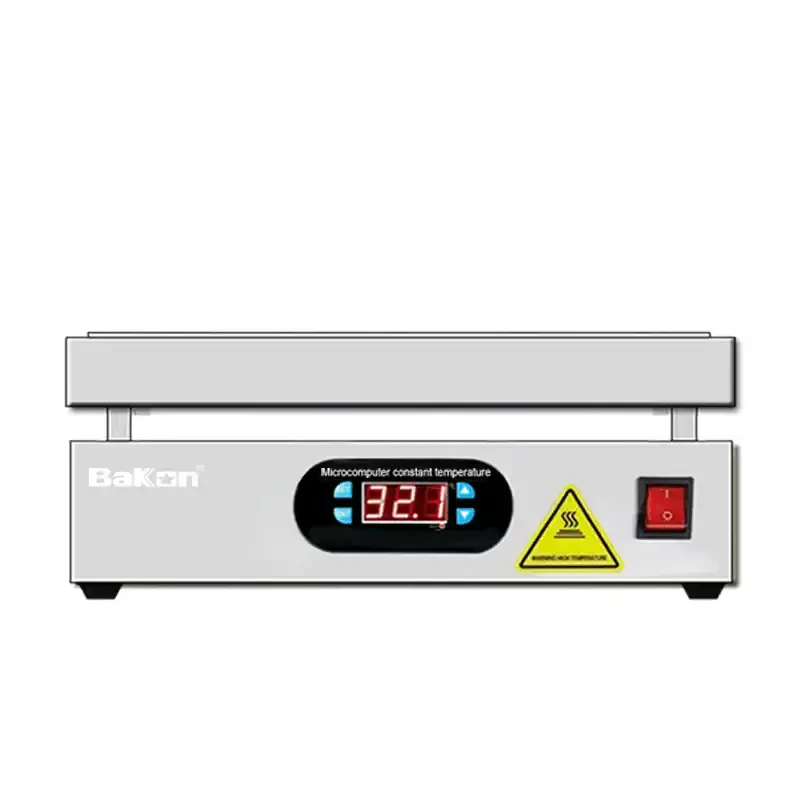

Bakon BK946P Preheating Station – 2100 W

Bakon BK946P Preheating Station – 2100 W

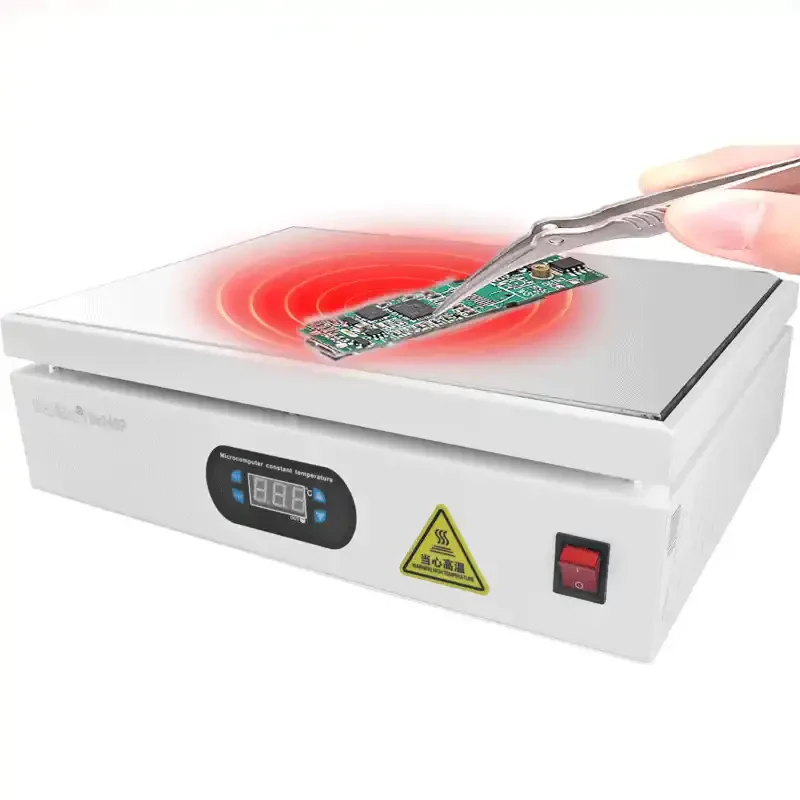

The Bakon BK946P is an industrial-grade solution developed for users looking for a high-power professional preheating station. With up to 2100 W output, infrared quartz heating technology, and a wide heating surface, it ensures even preheating of large PCBs, thick multilayer boards, and industrial circuit modules before repair, maintenance, and soldering operations. This balanced heat distribution significantly reduces risks such as board warping, solder cracking, and component damage caused by thermal stress.

The device provides precise temperature management with a special IC control system that prevents deviations within the 100°C–380°C range. Thanks to the integrated LCD screen, temperature values can be displayed clearly and in real time. The built-in sensor performs simultaneous temperature measurement to ensure homogeneous heat distribution across the heating surface. In addition, the BK946P offers an ideal solution for evenly heating entire circuit boards or specific areas.

With its safety-focused design, the device is reinforced with protective edges to prevent accidental contact. Thanks to its three-way air circulation system, heat distribution is optimized, the device’s service life is extended, and stable temperature is maintained. It features a durable structure suitable for intensive use in industrial production, laboratory work, maintenance and repair workshops, and training environments.

Bakon BK946P Preheating Station Technical Specifications:

• Brand: Bakon

• Model: BK946P

• Operating Voltage: AC 220V

• Power: 2100 W

• Display: LCD

• Platform Size: 300 × 300 mm

• Temperature Control Range: 50°C – 350°C

• Constant Temperature Stability: ±2°C

• Dimensions: 320 × 320 × 145 mm

• Total Weight: 8.5 kg

• Package Size: 400 × 400 × 230 mm

• Gross Weight: 9.5 kg

Package Contents:

• 1 × Main Unit

• 1 × Power Cable

• 1 × User Manual

• 1 × Warranty Certificate

• 1 × Technical Service Form
