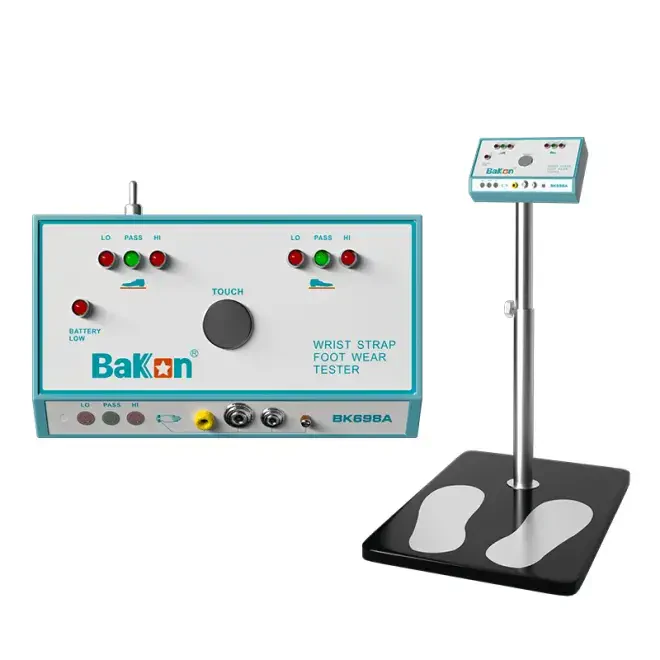

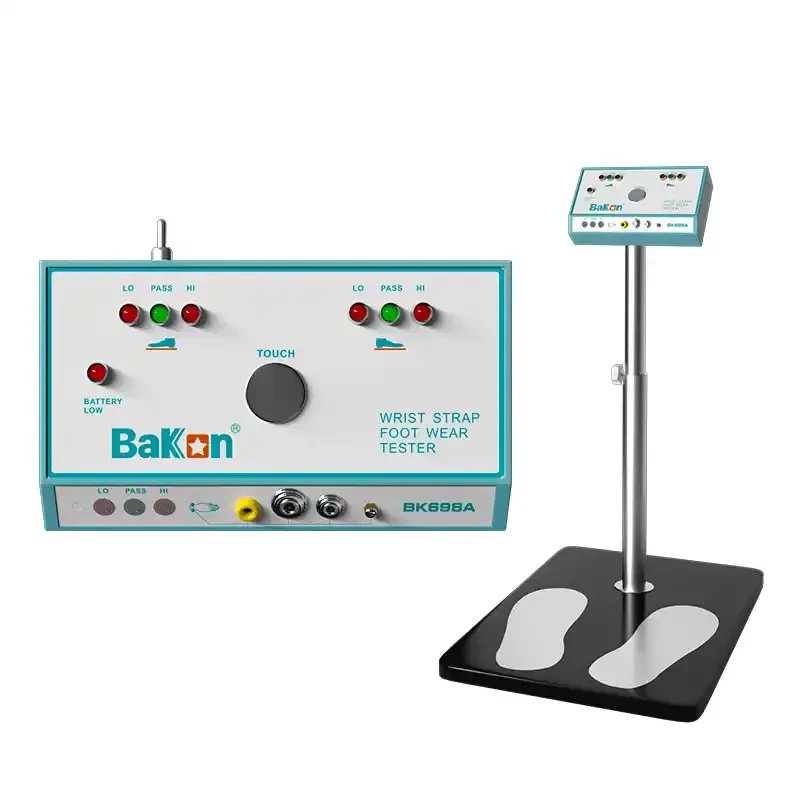

Bakon BK698A ESD Wrist Strap and Heel Strap Tester

Bakon BK698A ESD Wrist Strap and Heel Strap Tester

The Bakon BK698A ESD wrist strap and heel strap tester is a multi-test station developed to check whether ESD protection equipment is functioning correctly. The device can simultaneously test three independent functions: left shoe, right shoe, and wrist strap. This ensures that users are properly grounded and helps create a safe working environment in production, maintenance, laboratory, and quality control areas.

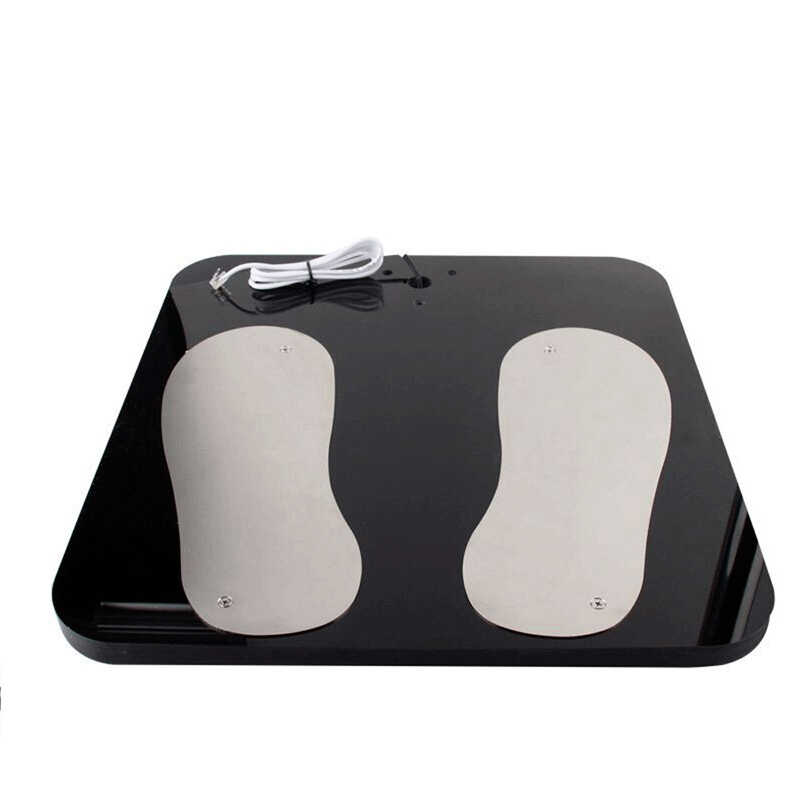

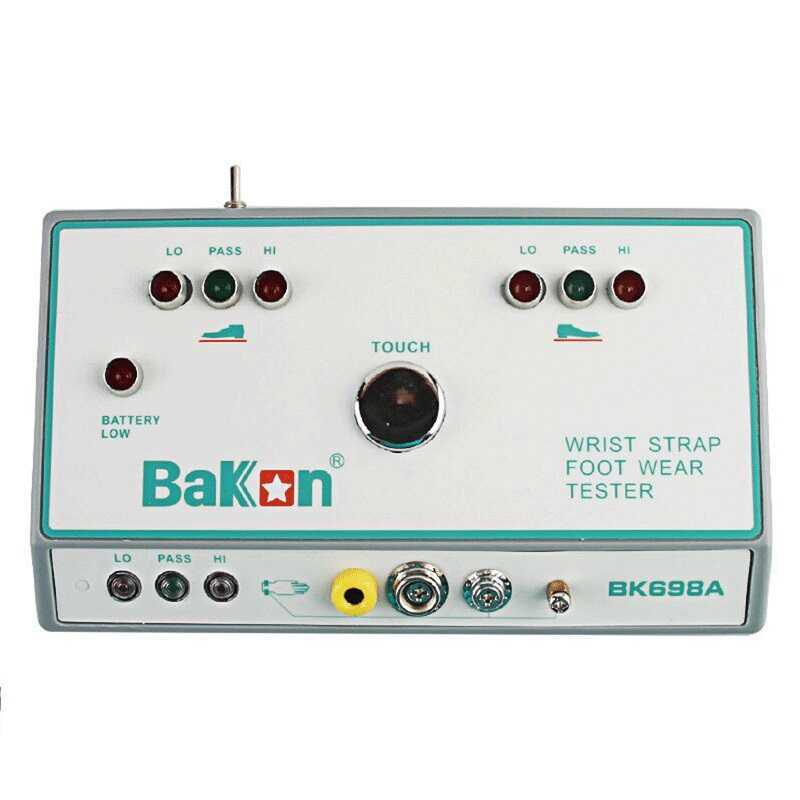

Standard wrist straps can be tested with a single button, and the device operates with the 9V battery included in the package. The LOW – PASS – HIGH LED indicators provide instant test results to the user. In addition, the device can optionally be used with an AC adapter. With its heel strap test plate and durable white stand designed for fume extraction systems, it offers long-lasting use. Regular annual calibration is recommended.

The device stand should be placed on a dry surface, and the test pedal should be kept clean. This ensures more accurate and reliable measurements.

Bakon BK698A ESD Wrist Strap and Heel Strap Tester Technical Specifications:

• Device Dimensions: 96 × 166 × 40 mm

• Panel Dimensions: 400 × 300 × 20 mm

• Adjustable Holder Distance: >150 mm

• Left Shoe Set Value: 750 kΩ – 100 kΩ

• Right Shoe Set Value: 750 kΩ – 100 kΩ

• Wrist Strap Set Value: 750 kΩ – 100 kΩ

• Test Accuracy: ±10%

• Total Weight: 6.5 kg

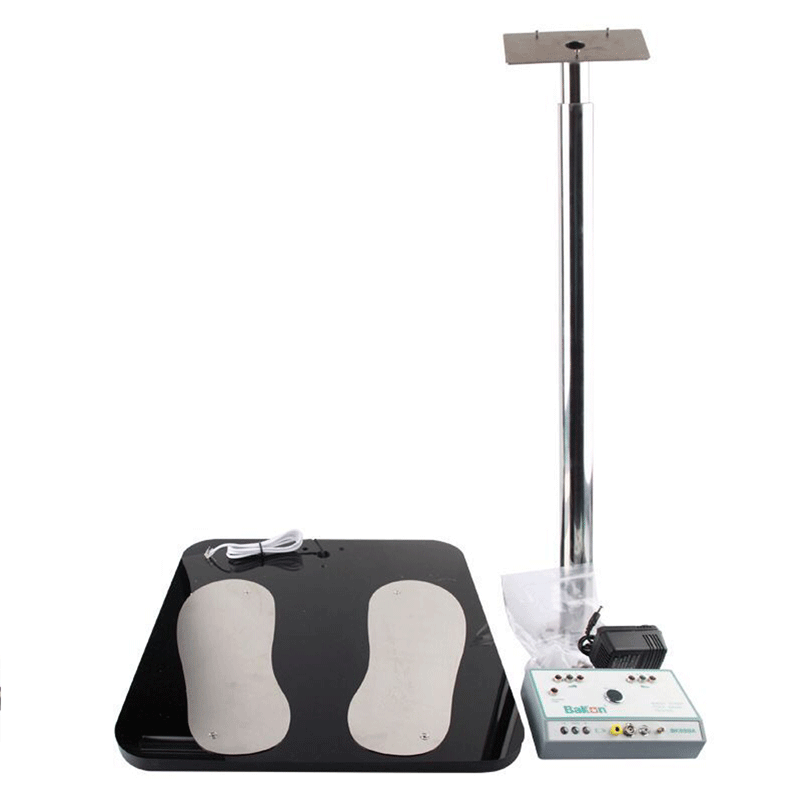

Package Contents:

• 1 × Power Supply (9V – 1000 mA)

• 3 Sets of Holder Mounting Screws (M8 × 30 mm)

• 2 Sets of Machine Fixing Screws (M3 × 15 mm)

• 2 × Holder Lift and Locking Knobs

• 1 × Product Certificate

• 1 × User Manual

• 1 × Warranty Certificate

• 1 × Technical Service Form
