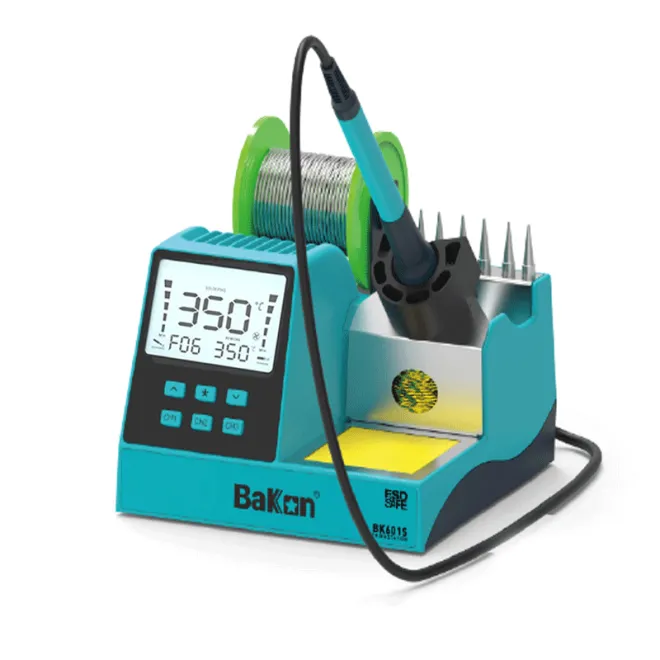

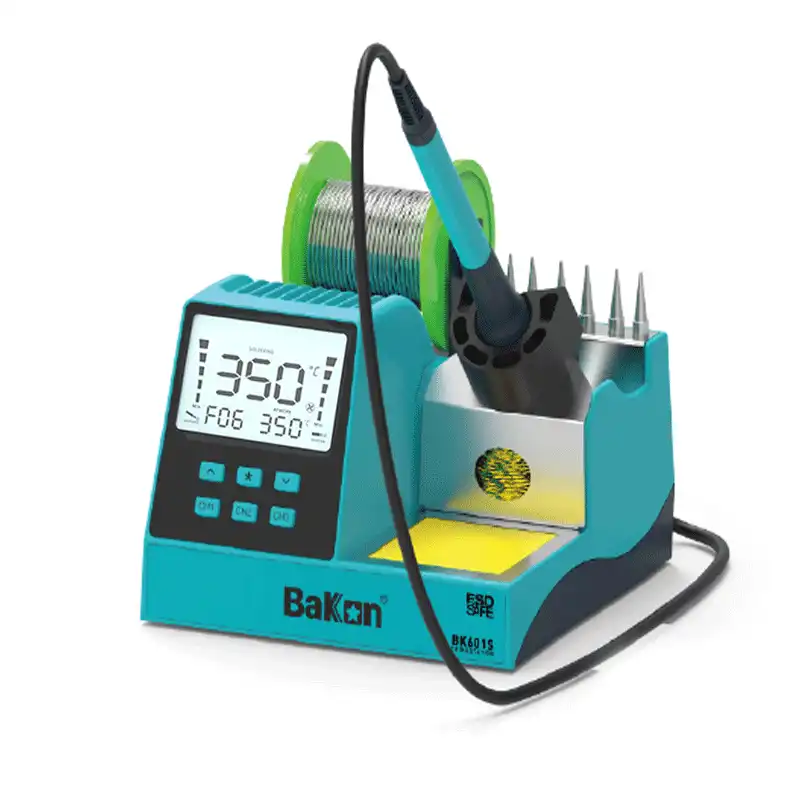

Notify me when its in stockBakon BK601 S Intelligent 90 Watt Digital Soldering Station
With its high-resolution large screen and compact body, the Bakon BK601S provides maximum work efficiency. Featuring a new driver circuit design, it offers fast heating and has a power output of 90 watts. Its ergonomic dimensions save space in your workspace, while the large LCD digital screen, ideal for professionals, allows for precise temperature monitoring. For your safety, it is equipped with a warning system, an automatic sleep function that prevents oxidation, password creation features, and a microcomputer-controlled system ensuring high temperature stability. Additionally, it allows you to set 3 different temperature presets for efficient work.
Application Areas:
Electronic Product Assembly
Product Development and Scientific Research Laboratories
Electronic Maintenance Products
Electrical Soldering Operations
Institutions, organizations, and schools providing skill training and performing all types of electronic manufacturing and repair
Mobile phone, PC repair, maintenance, and servicing
University, Technical Laboratories, and R&D Laboratories
Bakon BK601 S Intelligent 90 Watt Digital Soldering Station Technical Specifications:
Brand: Bakon | Storage Environment Temperature:-20~80 / -4~176 ℉ / 35%~60% | Programmable Sleep Mode: Yes | Soldering Iron Model: BK902S |
Model: BK601S |
Display: HD LCD Screen | Password Locking: Yes | Compatible Soldering Tip Models: 900 Series Soldering Tip Models |
Power Consumption: 90 Watts | Temperature Calibration: Digital Calibration | Celsius / Fahrenheit Conversion: Yes | Soldering Iron Resistance Model: BK1370 |
Temperature Range: 180°C ~ 480°C | Temperature Control Method: Microcomputer P.I.D. | Heating Resistance/Sensor/Fault Protection: Yes | Dimensions: 160×165×105 mm |
Temperature Stability: ±2°C | I/O Control System Connection: Sleep Signal/Alarm Output/Temperature "OK" Signal | Voltage (Grounding): ≤2mV | Weight: ≈0.75kg / ≈1.2kg |
Operating Ambient Temperature: 0~40 ℃ / 32~104 ℉ | Quick Settings: CH1 / CH2 / CH3 | Ground Resistance: ≤2Ω |
Package Contents:
1x BK601S Main Unit
1x Soldering Iron
1x Soldering Iron Stand
1x 220V Power Cable
1x User Manual
1x Warranty Certificate
1x Technical Service Form
