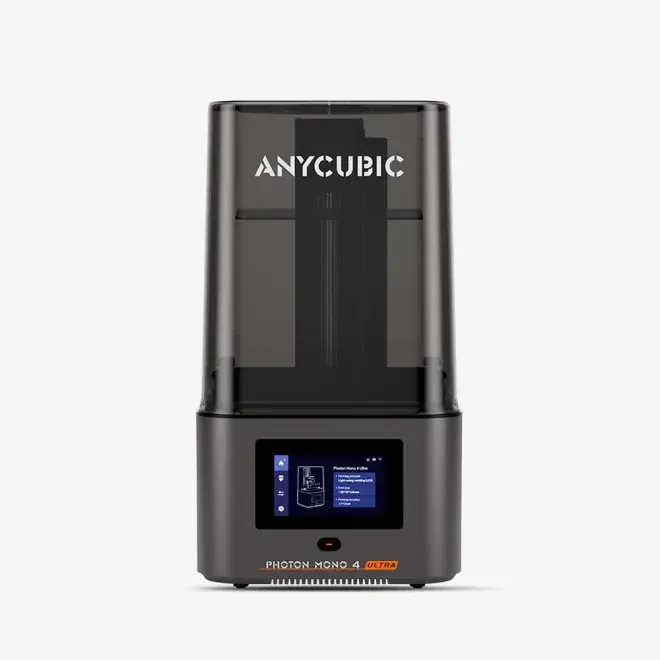

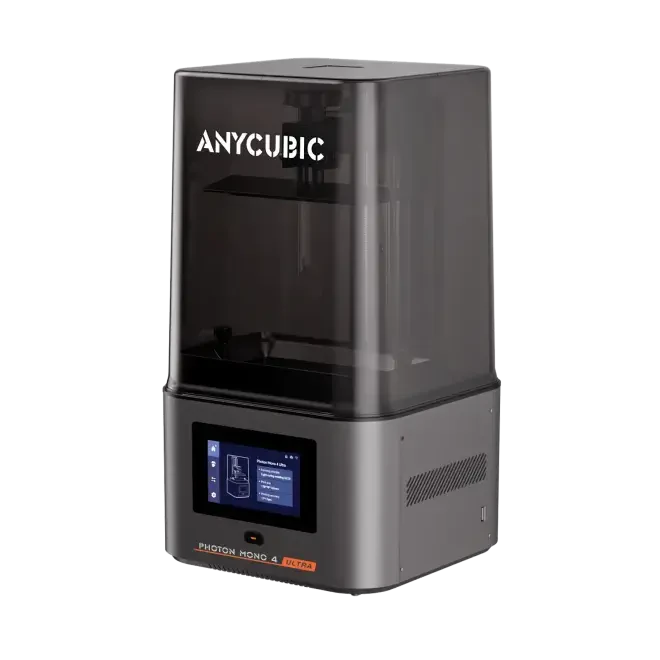

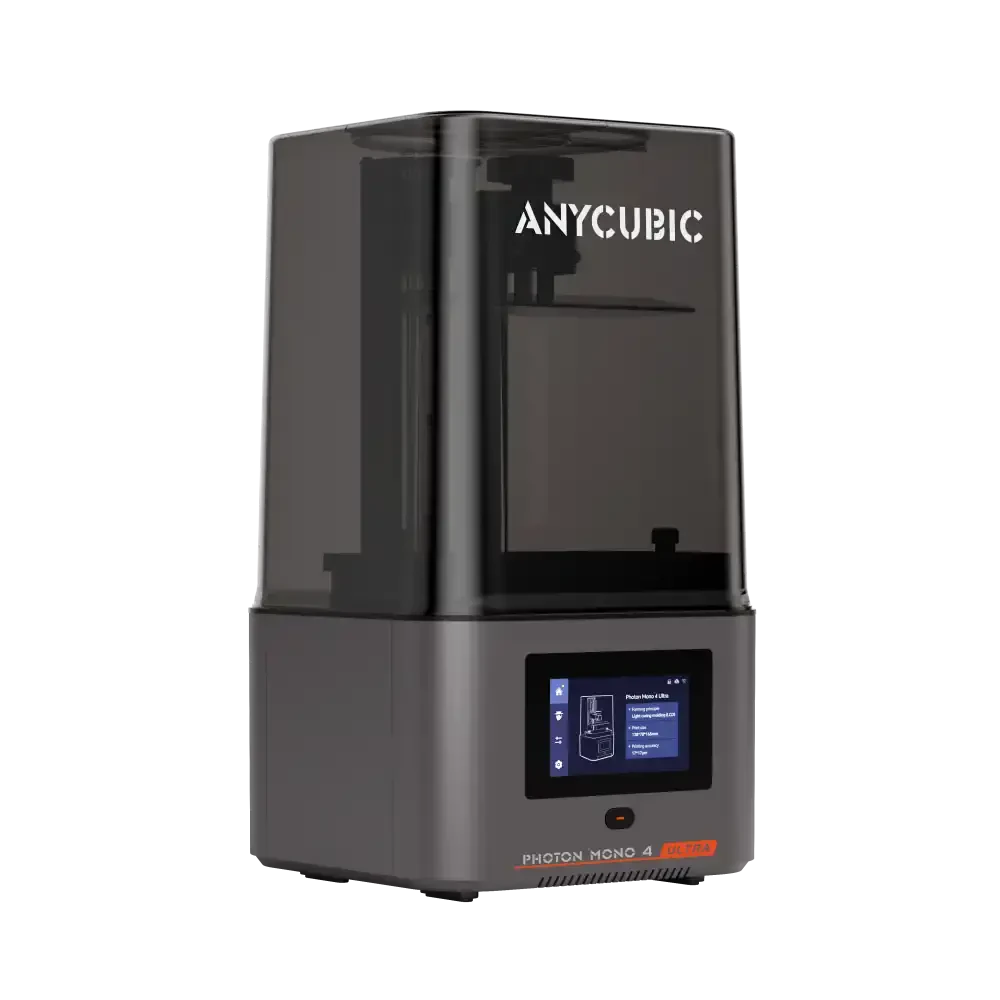

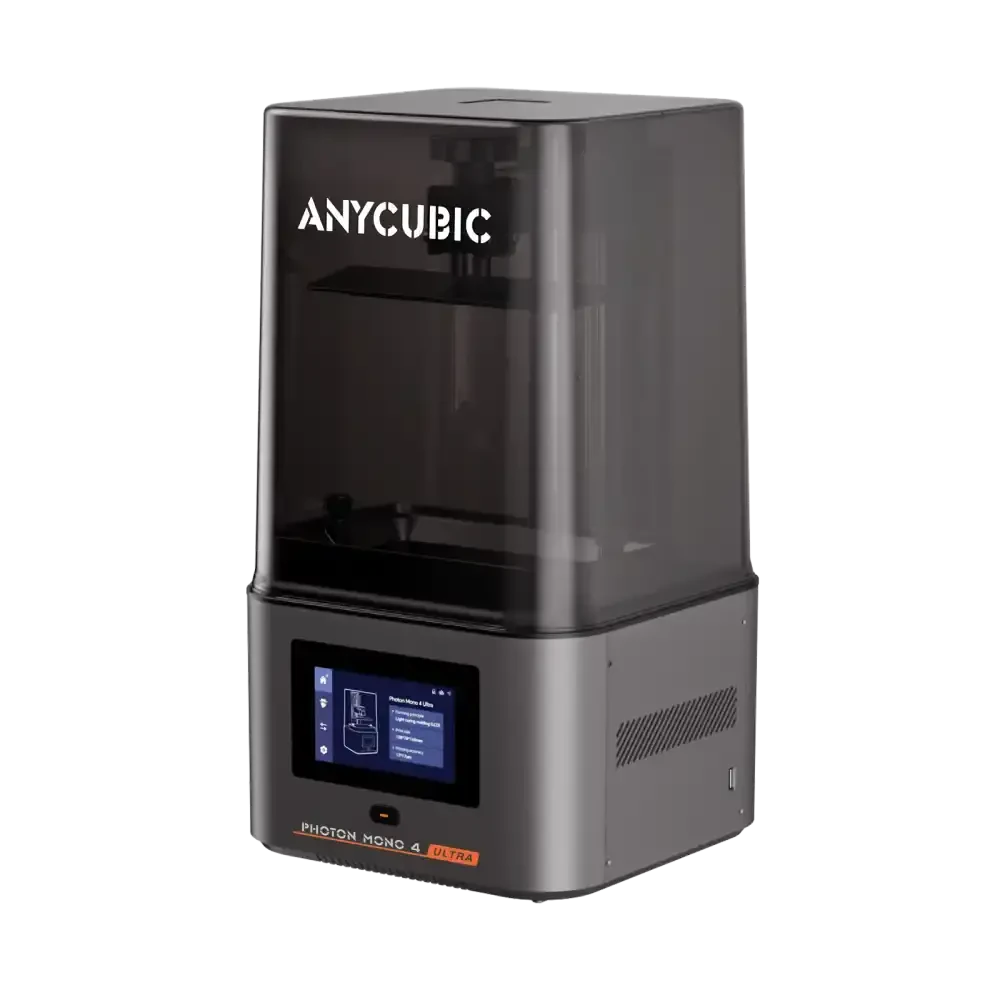

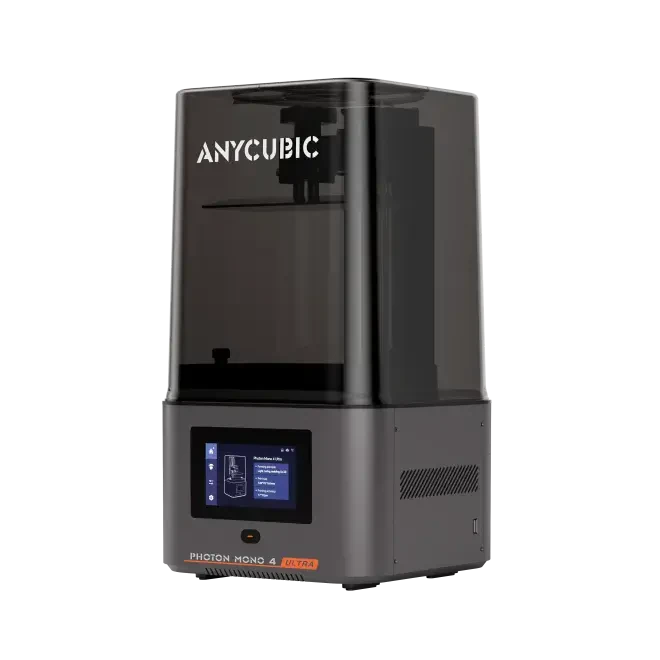

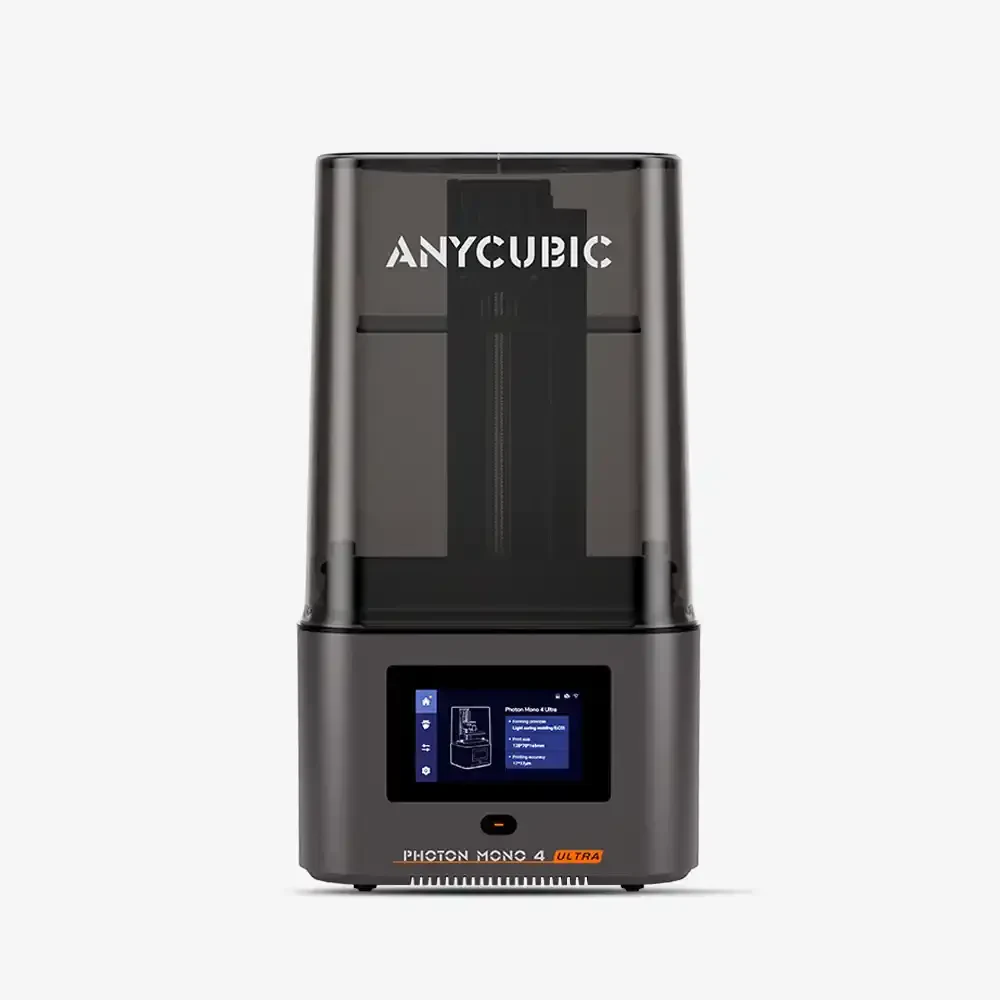

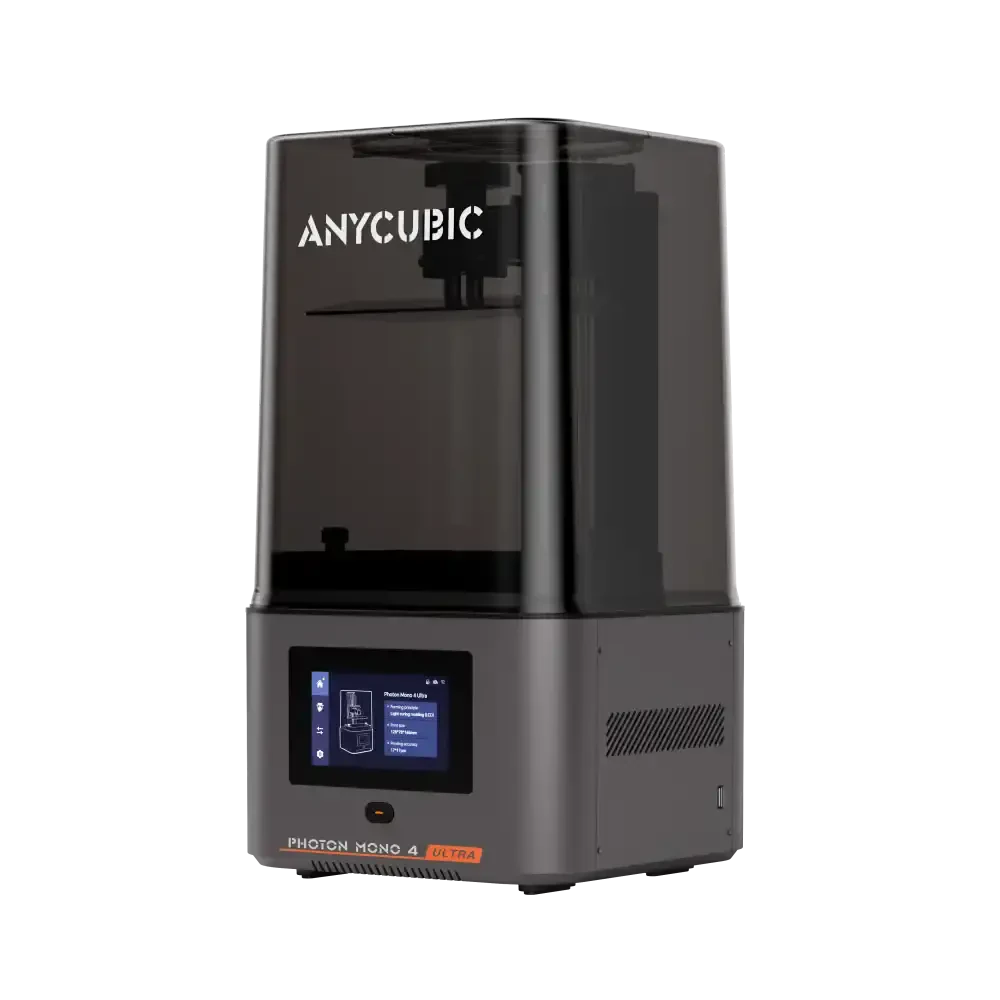

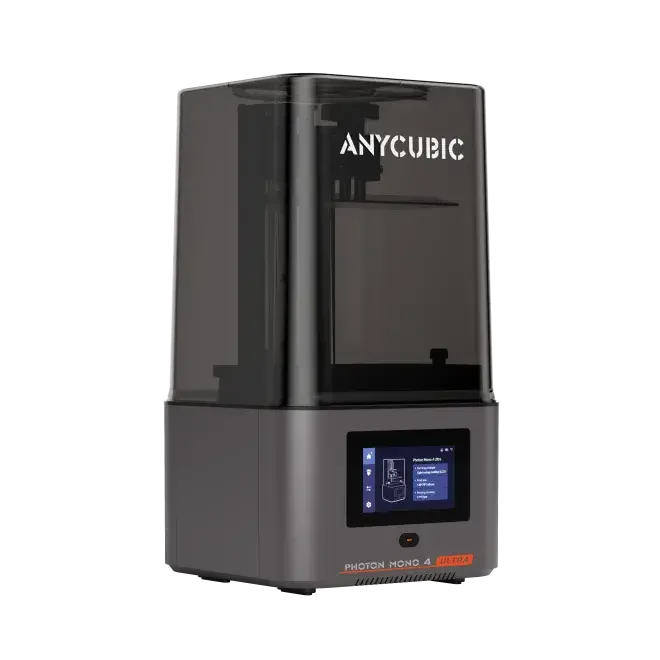

Anycubic PHOTON MONO 4 ULTRA 3D Printer
|
Compact Design, Powerful Performance
Despite its small size, the Anycubic PHOTON MONO 4 ULTRA offers outstanding printing performance. With a build volume of 153.4mm x 87mm x 165mm, it's ideal for desktop use and allows for highly detailed models at high resolution.
|
 |
 |

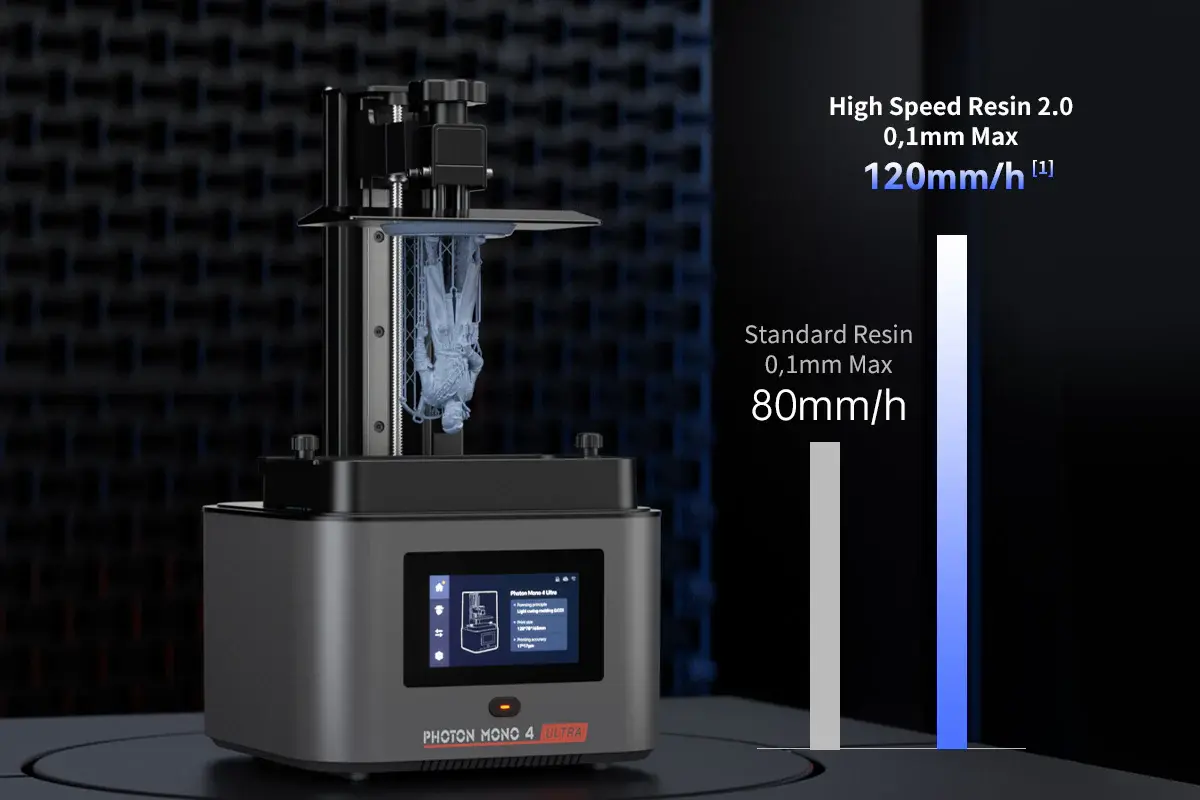

Fast and Precise Printing
Save time and boost your productivity with standard resin printing speeds up to 80mm/h at 0.1mm layer height, and up to 120mm/h with high-speed resin.
|
|

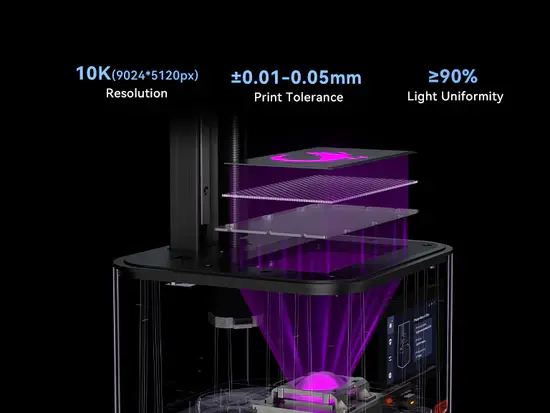

Advanced Light Technology
With a COB light source, Fresnel lens, and a light uniformity algorithm, the advanced lighting system ensures sharper and clearer prints with ≥90% light uniformity.
|
|
Anycubic PHOTON MONO 4 ULTRA Technical Specifications:
- Build Volume: 153.4mm x 87mm x 165mm
- Machine Dimensions: 231mm x 236mm x 430mm
- Printing Speed: 80mm/h (standard resin), 120mm/h (high-speed resin)
- Leveling: 4-point manual leveling
- LCD Screen: 7" 10K Mono
- Light Source: COB + Fresnel lens + uniformity algorithm
- XY Resolution: 17x17μm
- Control Screen: 4.3" TFT touchscreen
- Slicing Software: Photon Workshop
- Material Compatibility: Supports most resins (water-washable, bio, plant-based, etc.)
- File Transfer: USB, Wi-Fi, LAN
- Machine Weight: 5kg
- Light Uniformity: ≥90%
- Layer Height: 0.02–0.15mm
- Package Dimensions: 512mm x 300mm x 305mm
- Air Purifier: USB supported
- Anycubic App: Supported

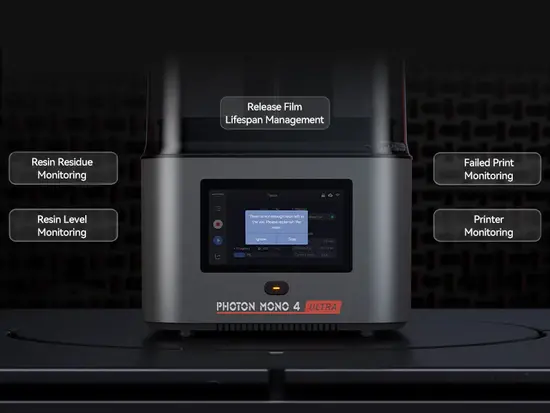

- Intelligent Assisted Printing System: Supported

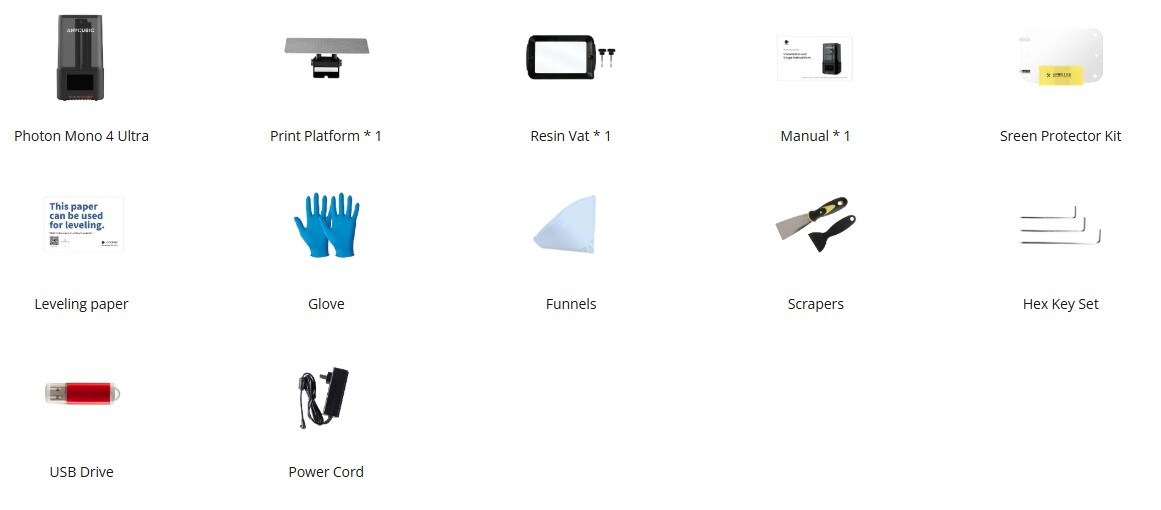

Package Contents:
