Antenna Home AHNG.200T 13.56MHz NFC/RFID PCB Antenna

Antenna Home AHNG.200T 13.56MHz NFC/RFID PCB Antenna

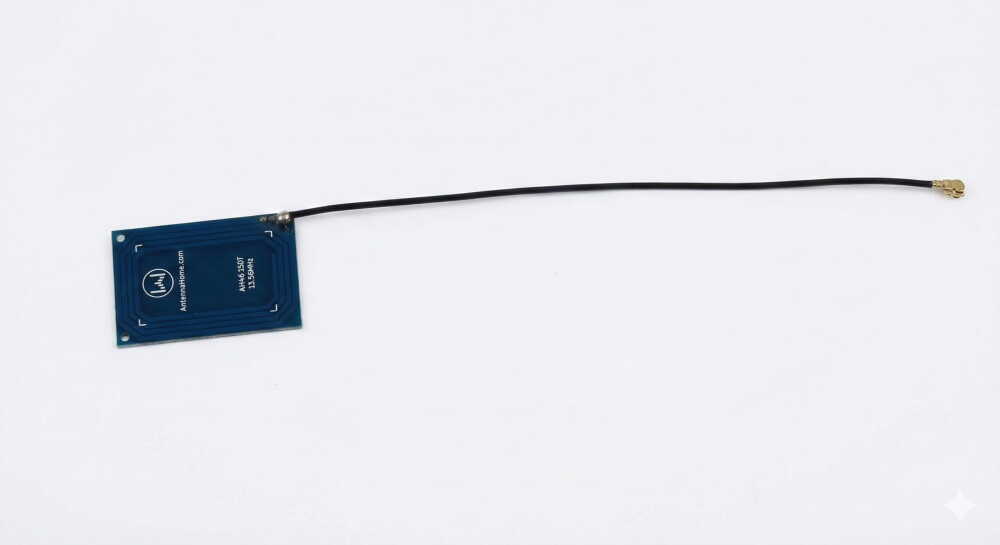

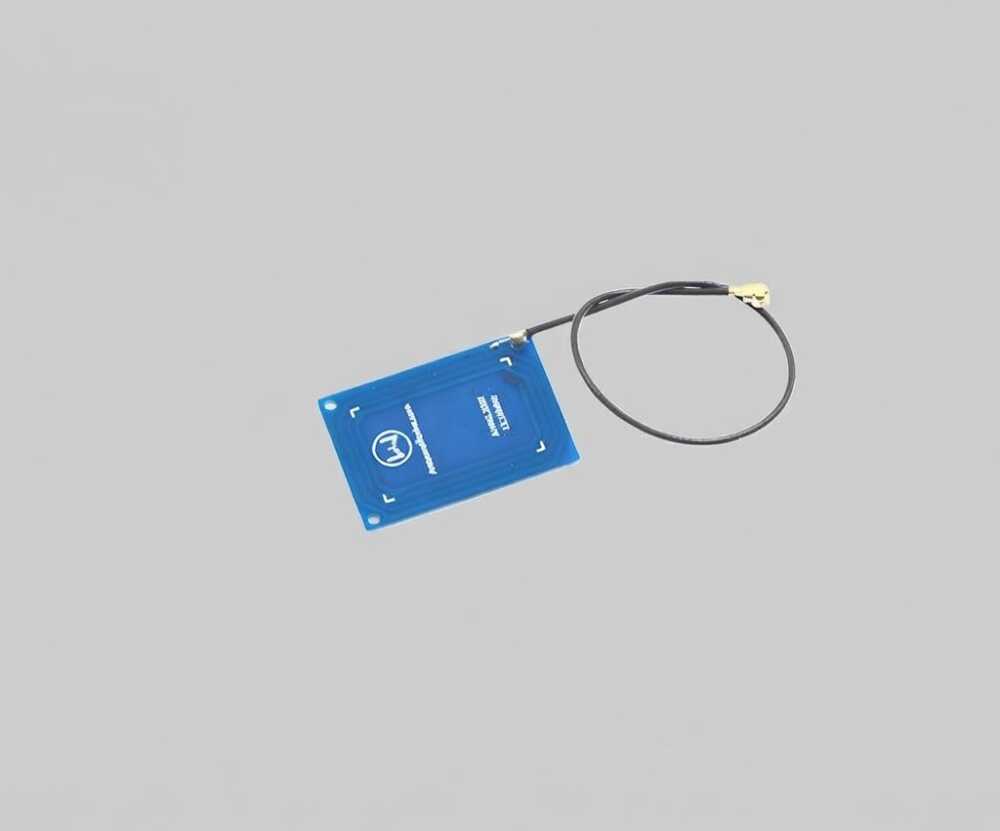

Antenna Home AHNG.200T is an internal PCB antenna designed for NFC and RFID applications operating at 13.56MHz. It delivers reliable performance for contactless card systems, access control solutions, and NFC-based IoT projects.

Thanks to its compact PCB structure and 1.13 mm cable with IPX (IPEX) connector, it can be easily integrated into devices. By eliminating the need for an external antenna, it helps save space in product designs. Its low VSWR ensures stable and balanced signal transmission.

Antenna Home AHNG.200T Technical Specifications:

• Operating Frequency: 13.56 MHz

• Application Area: NFC / RFID Systems

• Gain: 0 dBi

• VSWR: ≤ 2.0

• Impedance: Depends on RF IC

• Connector & Cable: PCB + 1.13 mm cable / IPX (IPEX)

• Antenna Type: Internal PCB Antenna

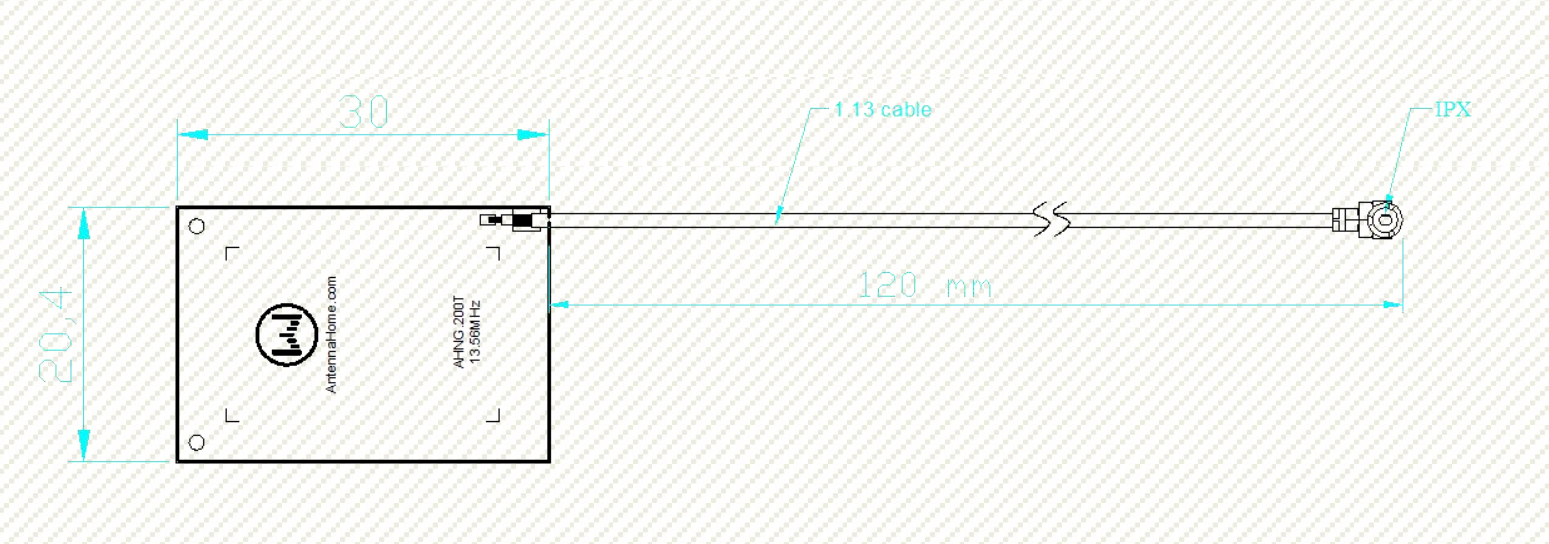

• Dimensions: 30 x 20 x 1.0 mm

• Weight: 1.5 g

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Product Technical Datasheet (PDF)
