Antenna Home AHGG.101 GPS/BD Boxed External Antenna SMA

Antenna Home AHGG.101 GPS/BD Boxed External Antenna SMA

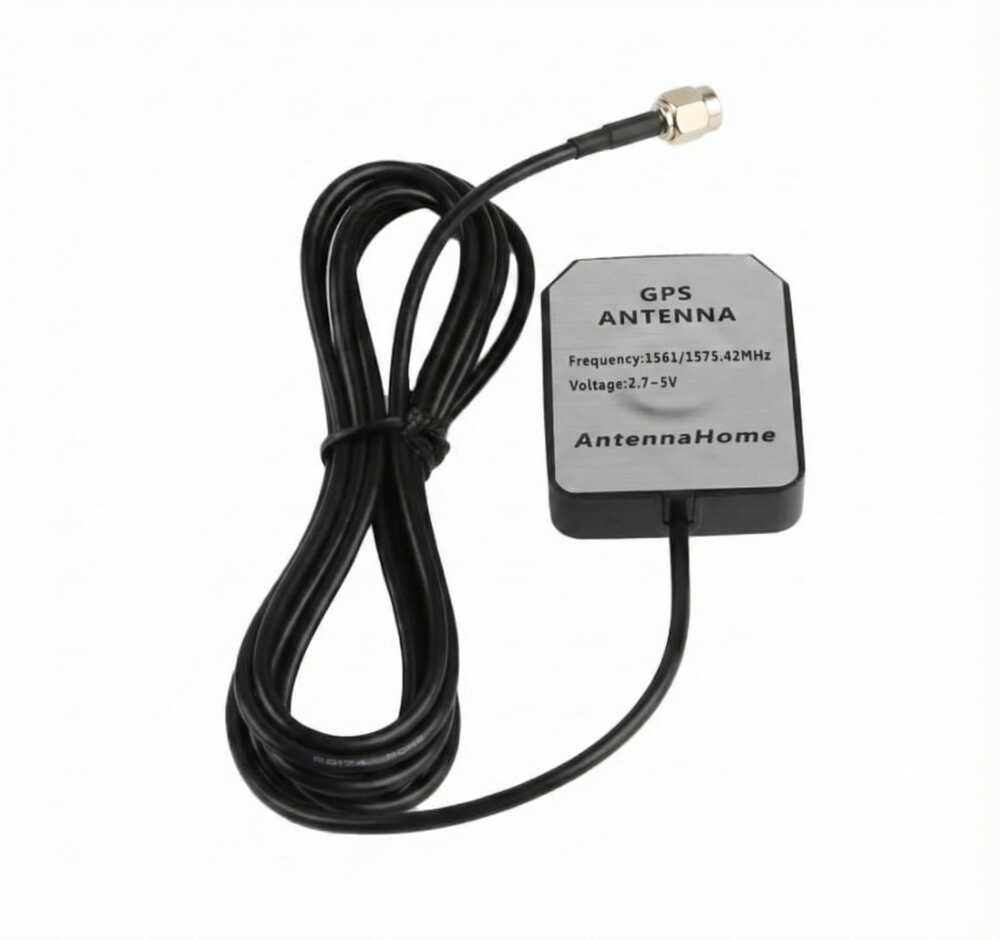

Antenna Home AHGG.101 is a high-precision boxed external GNSS antenna supporting GPS and BeiDou (BD) satellite systems. It is designed to provide reliable signal reception for navigation systems, vehicle tracking solutions, IoT applications, and industrial projects requiring accurate GNSS positioning.

Featuring an active gain of 28±2 dB and RHCP (Right Hand Circular Polarization), this antenna ensures stable and consistent satellite signal reception. It is suitable for external mounting with its SMA-J connector and 2-meter RG-174 cable. The durable ABS enclosure and wide operating temperature range make it ideal for long-term use in harsh outdoor environments.

Antenna Home AHGG.101 GPS/BD Boxed External Antenna SMA Technical Specifications:

• Supported systems: GPS / BeiDou (BD) / GNSS

• Frequencies: GPS 1575.42 MHz, BD 1561.02 MHz

• Impedance: 50Ω

• VSWR: ≤ 2.0

• Gain: 28±2 dB @ 3–5V (active)

• Polarization: RHCP (Right Hand Circular Polarization)

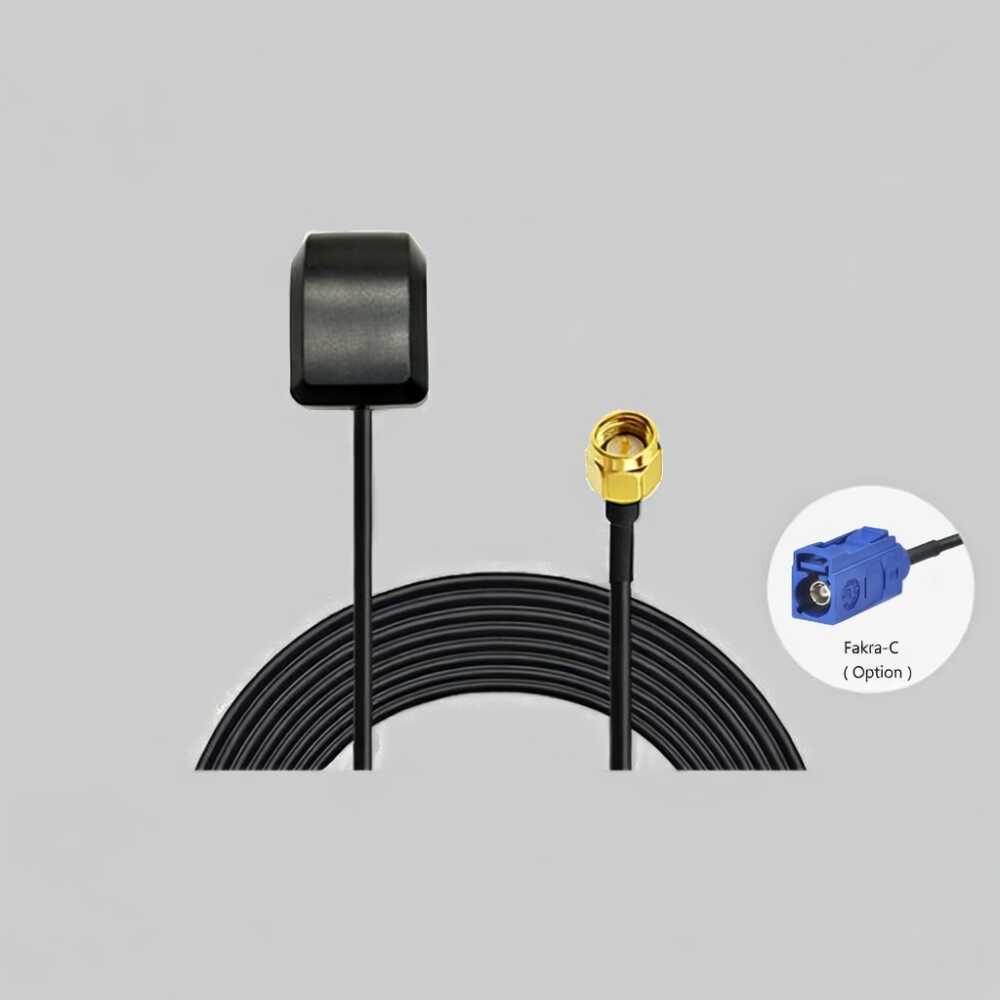

• Connector & Cable: SMA-J, RG-174, 2 m

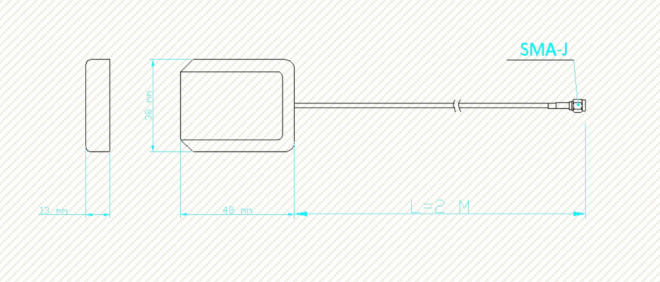

• Antenna dimensions: 48 x 38 x 13 mm

• Weight: 50 g

• Operating temperature: -40°C ~ +85°C

• Housing material: ABS / Copper

Useful Links / Documents:

• AHGG.101 Datasheet (PDF)
