Antenna Home AHGG.202 GPS/BD Internal Antenna 12cm IPX

Antenna Home AHGG.202 GPS/BD Internal Antenna 12cm IPX

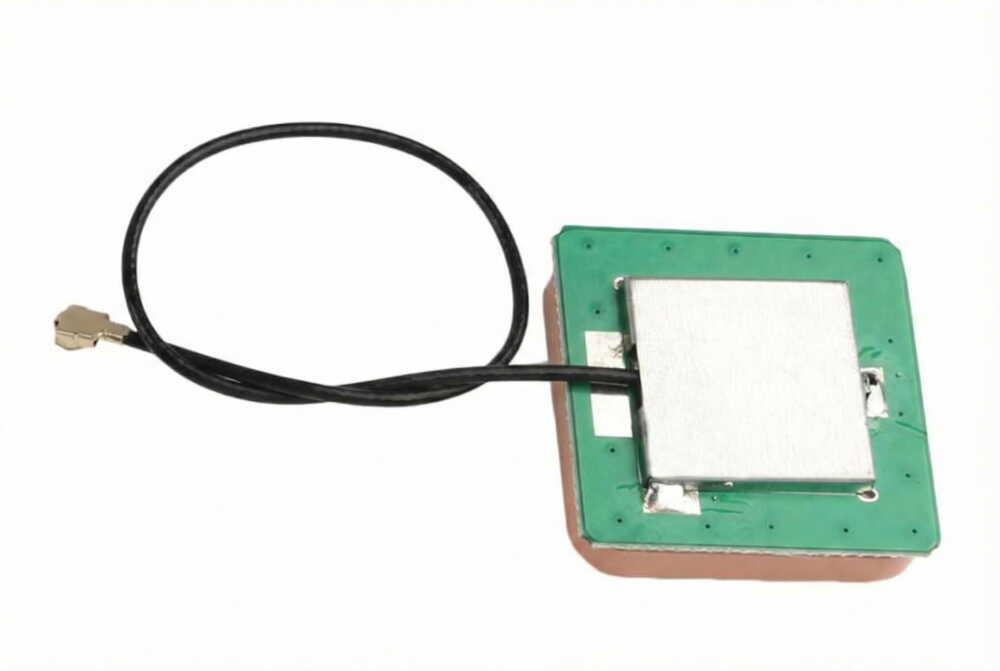

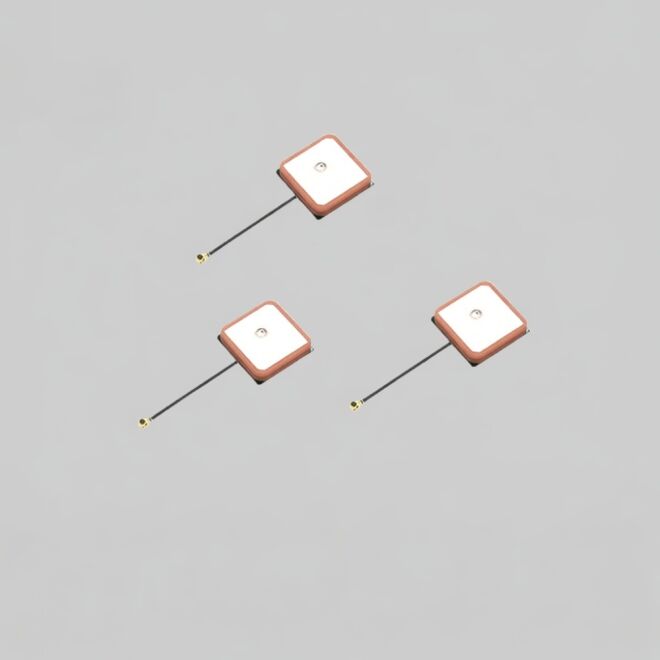

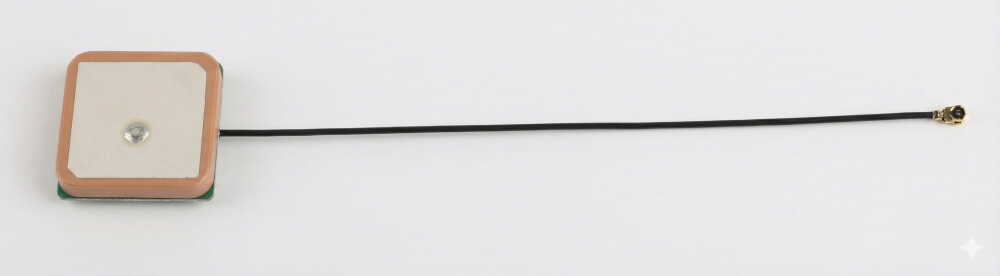

Antenna Home AHGG.202 is an active ceramic internal GNSS antenna supporting GPS and BeiDou (BD) satellite systems. Thanks to its compact size, it enables easy internal integration and is an ideal solution for IoT projects, tracking systems, industrial electronics, and portable devices that require precise GNSS positioning.

With an active gain of 18±2 dB and RHCP (Right Hand Circular Polarization), it receives satellite signals with strong and stable performance. Its IPX (I-PEX) connector and 12 cm cable provide a practical connection to GNSS modules. The ceramic antenna structure ensures low noise and high-sensitivity positioning performance.

Antenna Home AHGG.202 GPS/BD Internal Antenna 12cm IPX Technical Specifications:

• Supported systems: GPS / BeiDou (BD) / GNSS

• Frequencies: GPS 1575.42 MHz, BD 1561.02 MHz

• Impedance: 50Ω

• VSWR: ≤ 2.0

• Gain: 18±2 dB @ 2.7–3.3V (active)

• Polarization: RHCP (Right Hand Circular Polarization)

• Connector & Cable: IPX (I-PEX), RG113, 120 mm

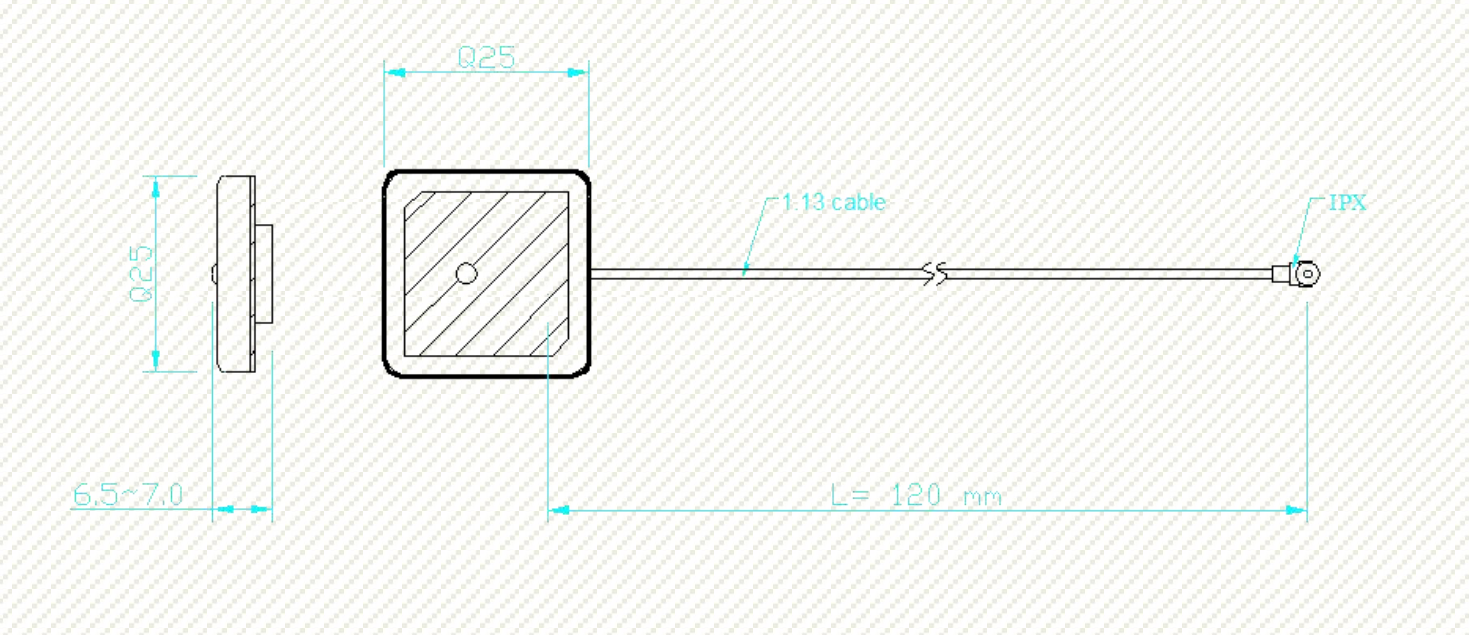

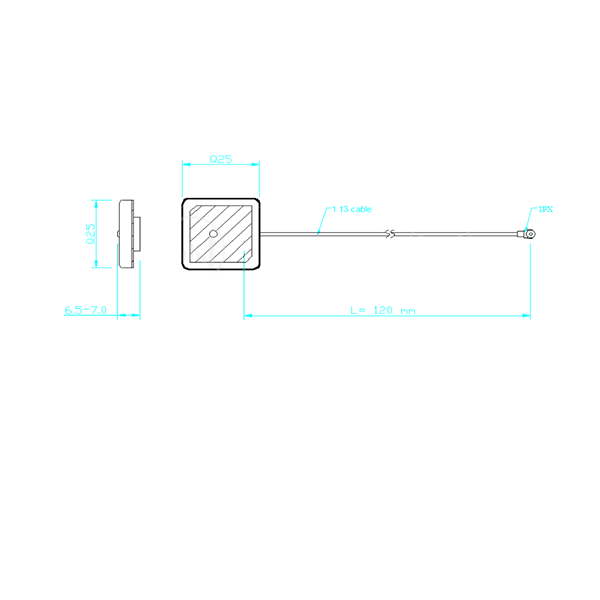

• Antenna dimensions: 25 x 25 x 6.5 mm

• Weight: 11 g

• Operating temperature: -40°C ~ +85°C

• Material: Ceramic / PCB

Useful Links / Documents:

• AHGG.202 Datasheet (PDF)
