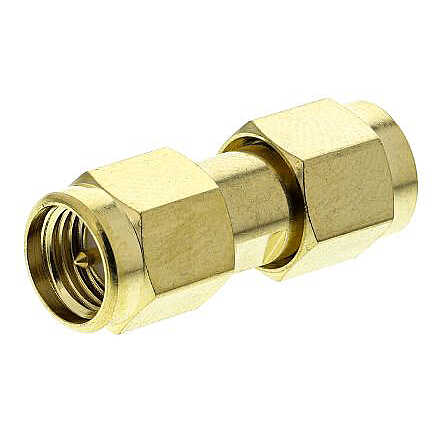

Antenna Home AHCG.212 SMA Male – SMA Male Adapter

Antenna Home AHCG.212 SMA Male – SMA Male Adapter

Antenna Home AHCG.212 is a high-quality RF adapter designed for SMA male to SMA male connection requirements. It provides reliable connectivity by minimizing signal loss in RF transmitter and receiver systems.

Its copper body structure ensures durable and long-lasting use. Supporting a wide frequency range from DC to 6 GHz, this adapter is suitable for a broad range of RF applications.

With low VSWR and low insertion loss values, it delivers high performance for wireless communication systems, antenna connections, RF modules, and test setups.

Antenna Home AHCG.212 Technical Specifications:

• Connector Type: SMA Male – SMA Male

• Frequency Range: DC – 6000 MHz

• Impedance: 50 Ohm

• VSWR: ≤ 1.3

• Insertion Loss: 0.25 dB

• Material: Copper

• Mounting Type: DIP

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Antenna Home AHCG.212 Technical Datasheet (PDF)
