Antenna Home AHCG.204 is an IPX (U.FL) G1 type SMD RF connector designed for compact RF transmitter and receiver communication systems. Its surface-mount (SMD) structure enables reliable and space-saving integration into modern PCB designs, especially where size and performance are critical.

Supporting a wide frequency range from DC to 6 GHz, this connector provides stable signal transmission with 50Ω impedance, low VSWR, and minimal insertion loss. Its lightweight and durable copper construction makes it an ideal solution for IoT devices, wireless modules, embedded systems, and high-frequency RF applications.

Antenna Home AHCG.204 IPX G1 SMD RF Connector Technical Specifications:

• Connector type: IPX (U.FL) G1

• Mounting type: SMD (Surface Mount)

• Frequency range: DC – 6000 MHz (6 GHz)

• Impedance: 50Ω

• VSWR: ≤ 1.3

• Insertion loss: 0.15 dB

• Material: Copper

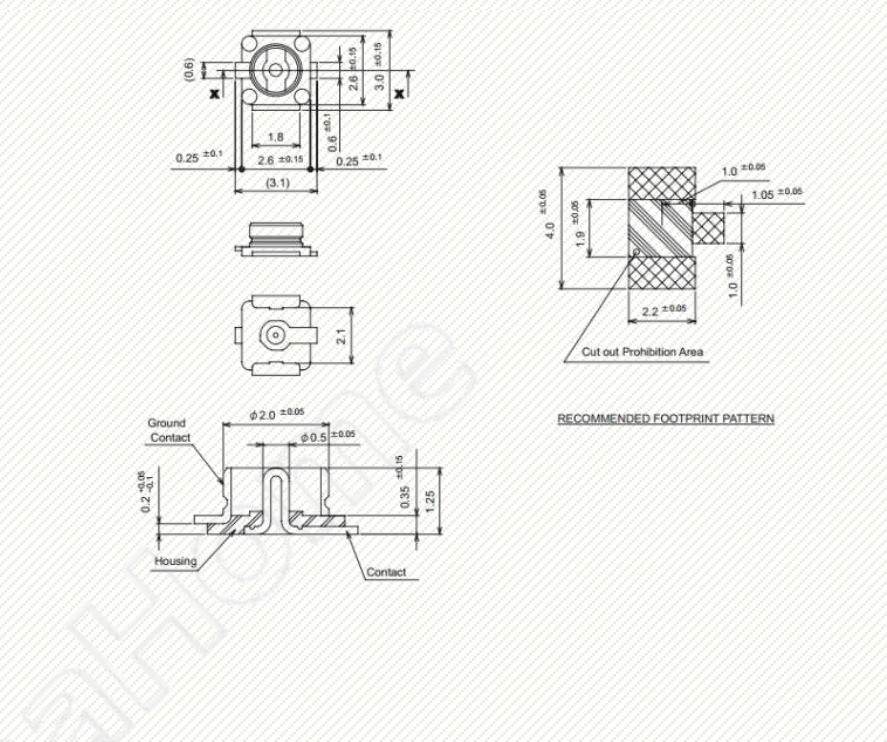

• Dimensions: Ø2.6 x 1.25 mm

• Weight: 0.02 g

• Operating temperature: -40°C ~ +85°C
