Antenna Home AHCG.202 SMA-K 90 Degree DIP Connector

Antenna Home AHCG.202 SMA-K 90 Degree DIP Connector

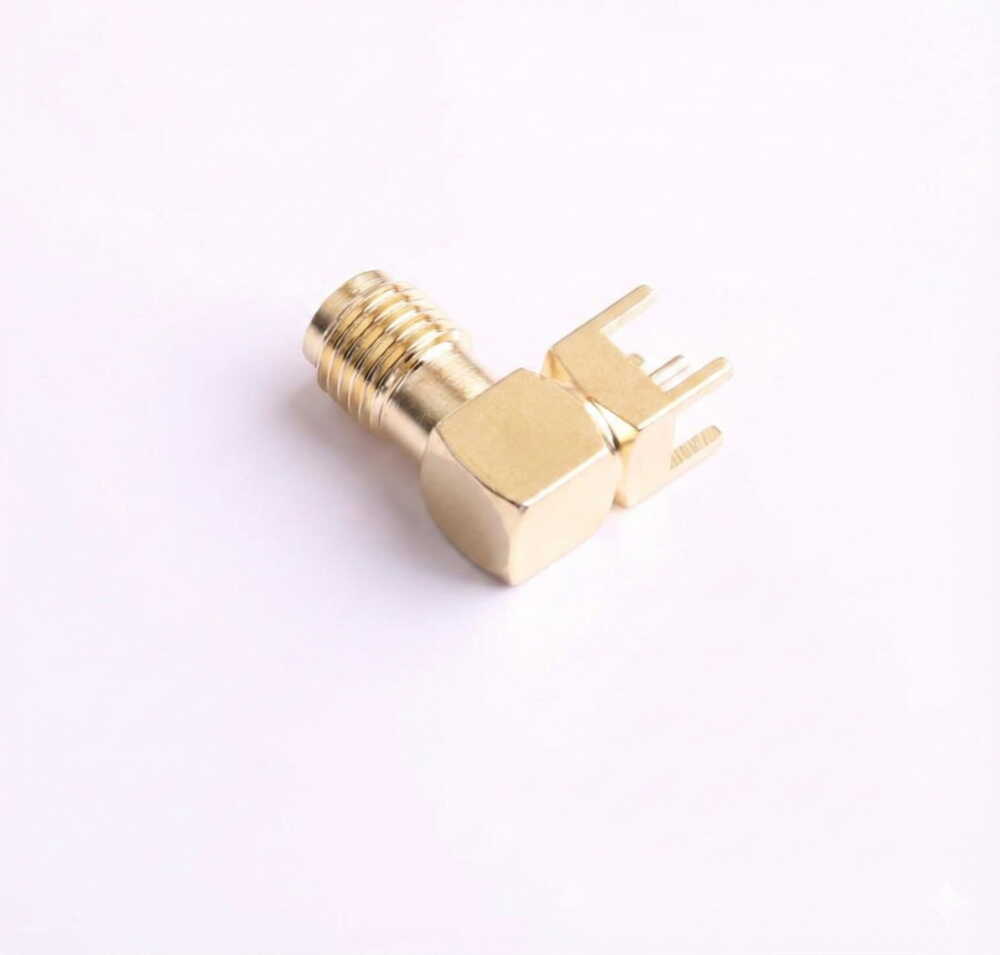

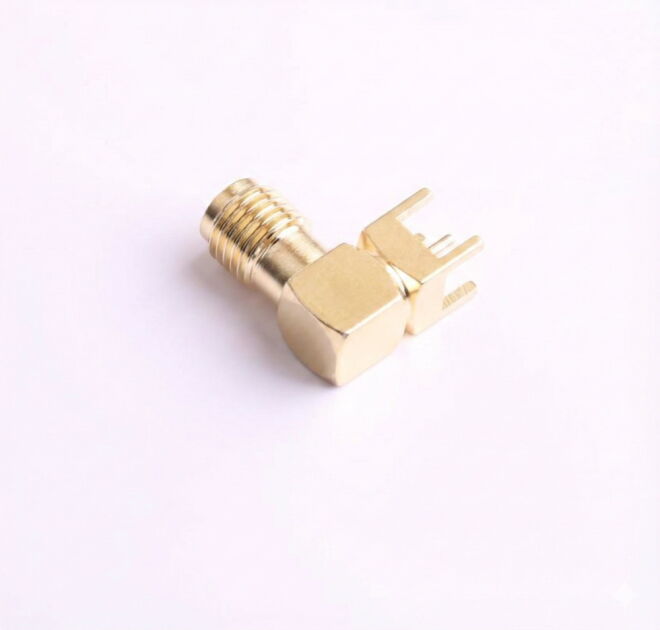

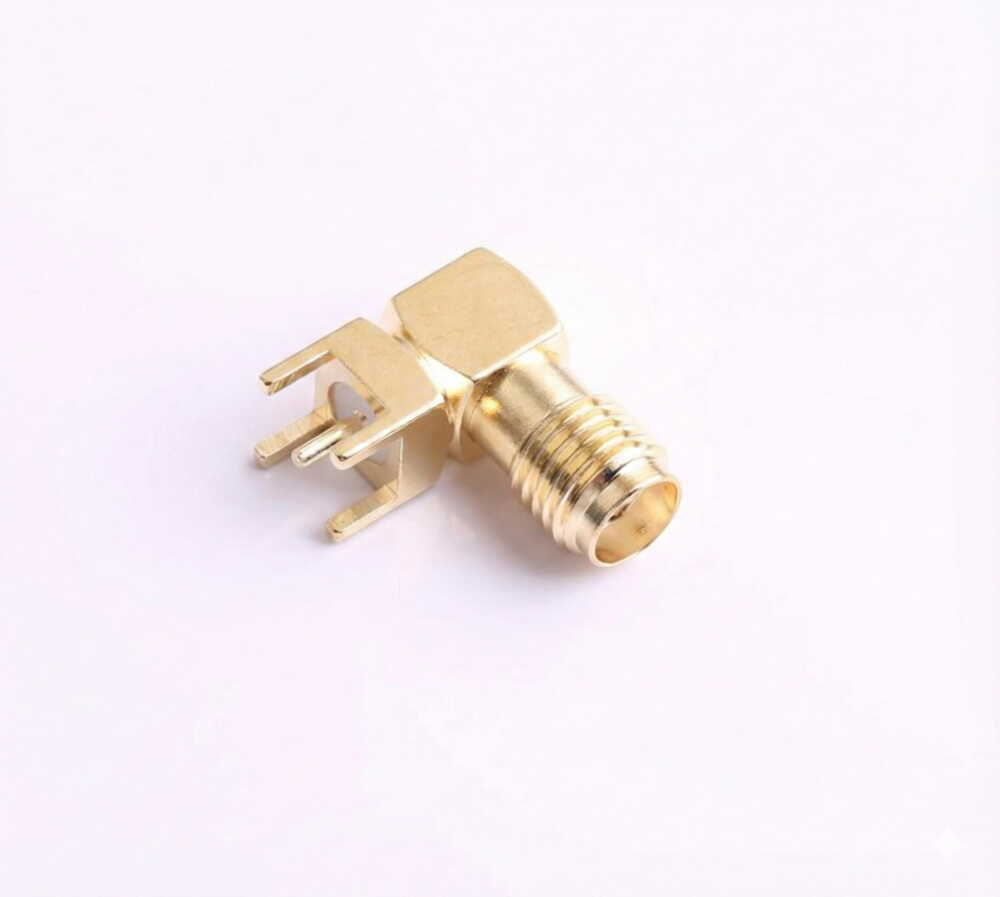

Antenna Home AHCG.202 is an SMA-K type RF connector with a 90-degree (angled/bent) structure and DIP (Through Hole) mounting. Thanks to its angled design, it helps save space in PCB layouts and enables secure and organized connection of antennas and RF modules in board-level applications.

Supporting a wide frequency range from DC to 6 GHz, this connector maintains excellent signal integrity with its 50Ω impedance and low VSWR value. Its robust mechanical structure and wide operating temperature range make it a reliable and long-lasting connection solution for IoT devices, industrial RF applications, wireless communication systems, and RF test equipment.

Antenna Home AHCG.202 SMA-K 90 Degree DIP Connector Technical Specifications:

• Connector type: SMA-K (Board Side)

• Mounting type: DIP / Through Hole

• Structure: 90 degree (Angled / Bent)

• Frequency range: DC – 6000 MHz (6 GHz)

• Impedance: 50Ω

• VSWR: ≤ 1.3

• Insertion loss: 0.25 dB

• Pin structure: Positive pin

• Material: Copper

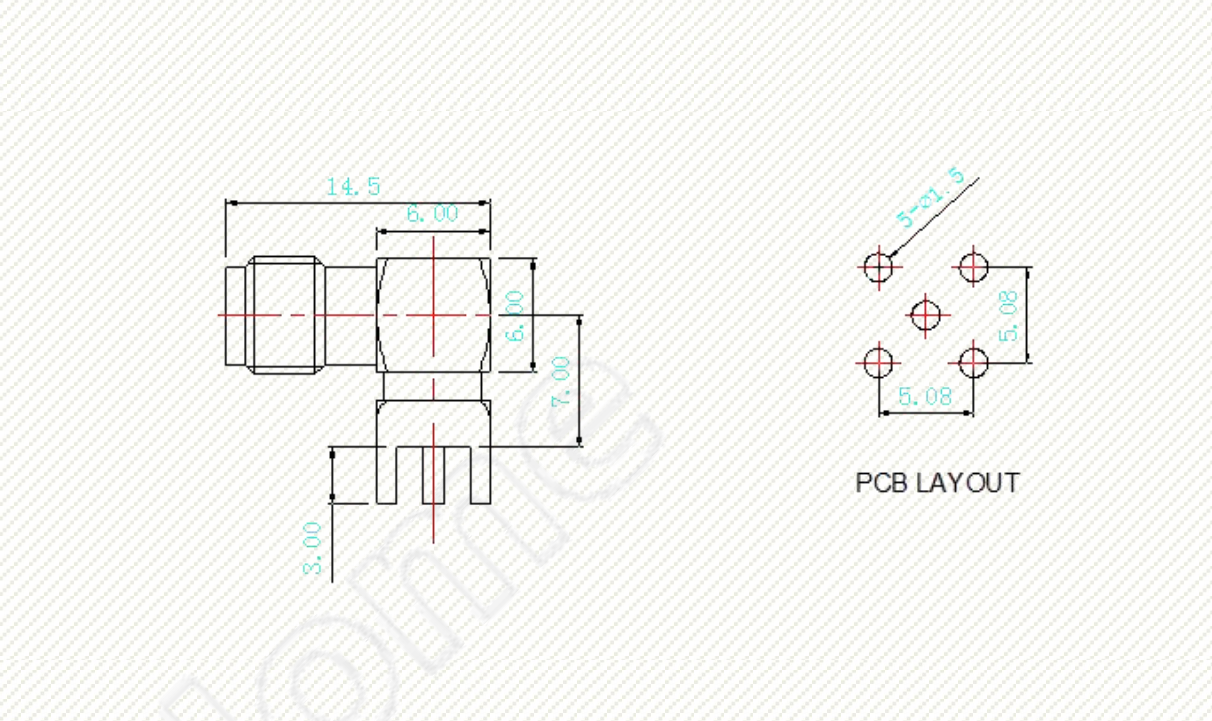

• Dimensions: Ø6 x 14.5 mm

• Weight: 2.8 g

• Operating temperature: -40°C ~ +85°C
