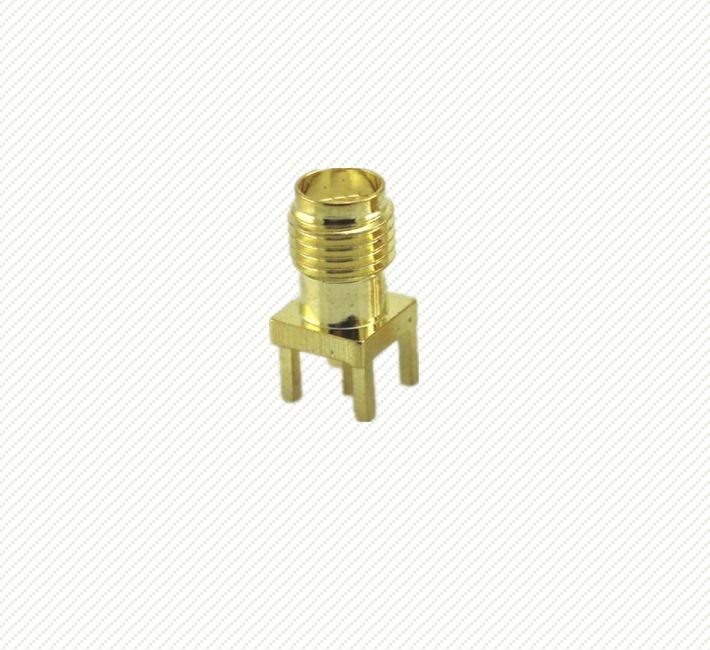

Antenna Home AHCG.201 SMA-K Q4 DIP Connector

Antenna Home AHCG.201 SMA-K Q4 DIP Connector

Antenna Home AHCG.201 is a high-performance SMA-K type RF connector designed for RF transceiver communication systems. With its DIP (Through Hole) mounting structure, it provides a robust mechanical design and reliable electrical performance, enabling direct PCB connection of antennas and RF modules in board-level applications.

Supporting a wide frequency range from DC to 6 GHz, this connector minimizes signal loss thanks to its 50Ω impedance and low VSWR value. It is a durable and stable connection solution for industrial electronics, IoT devices, RF test systems, and wireless communication applications.

Antenna Home AHCG.201 SMA-K Q4 DIP Connector Technical Specifications:

• Connector type: SMA-K (Board Side)

• Mounting type: DIP / Through Hole

• Frequency range: DC – 6000 MHz (6 GHz)

• Impedance: 50Ω

• VSWR: ≤ 1.3

• Insertion loss: 0.25 dB

• Pin structure: Positive pin

• Material: Copper

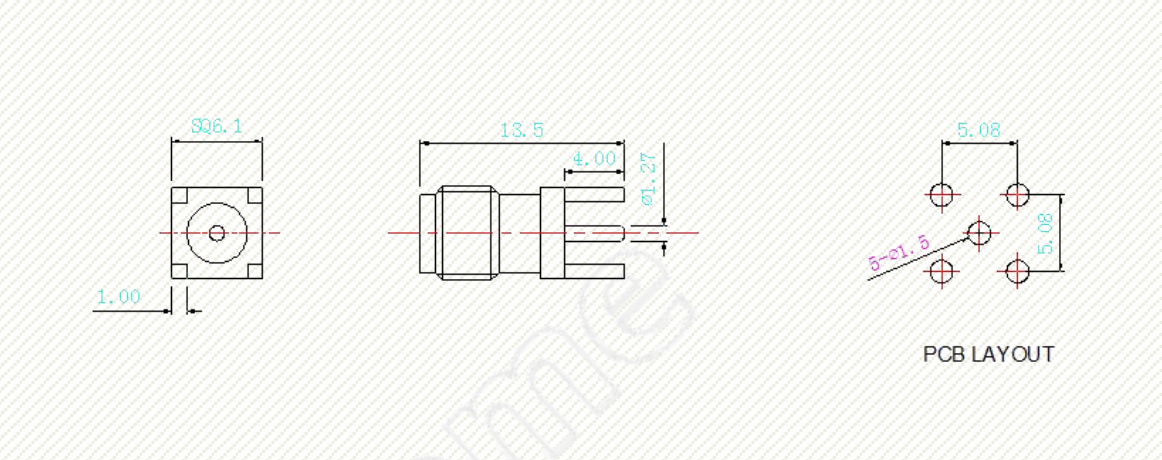

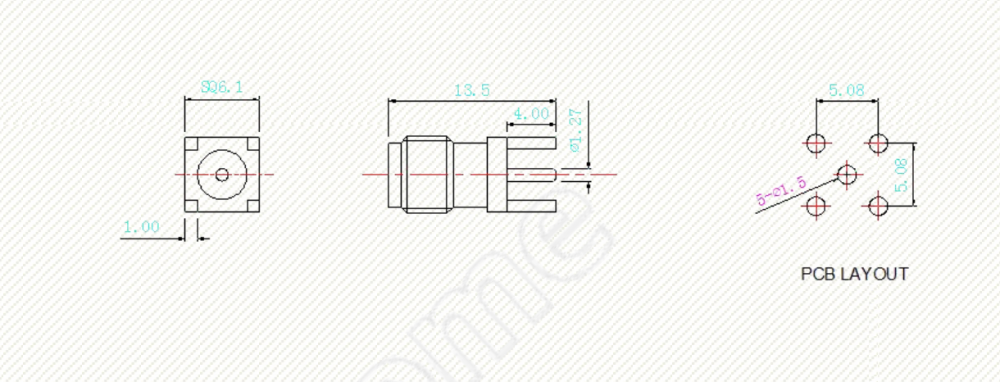

• Dimensions: Q6 x 13.5 mm

• Weight: 1.4 g

• Operating temperature: -40°C ~ +85°C

Useful Links / Documents:

• AHCG.201 Datasheet (PDF)
