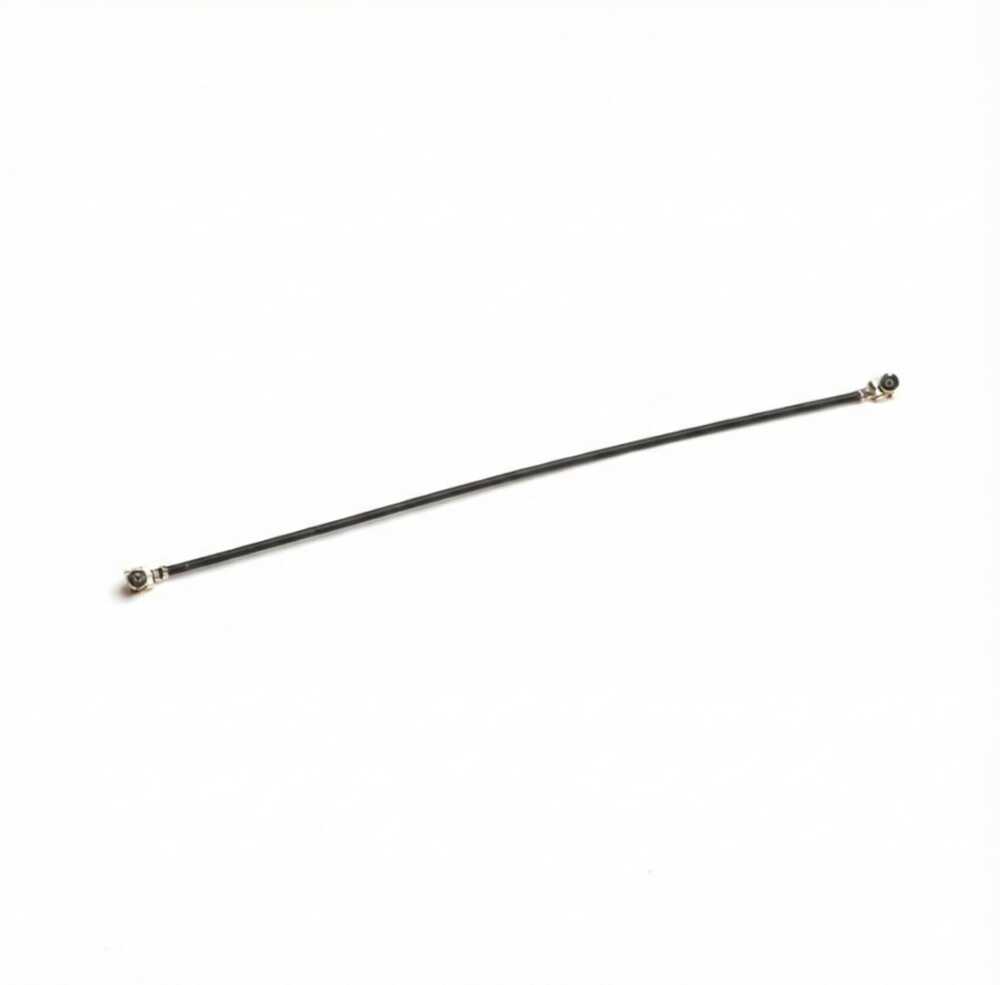

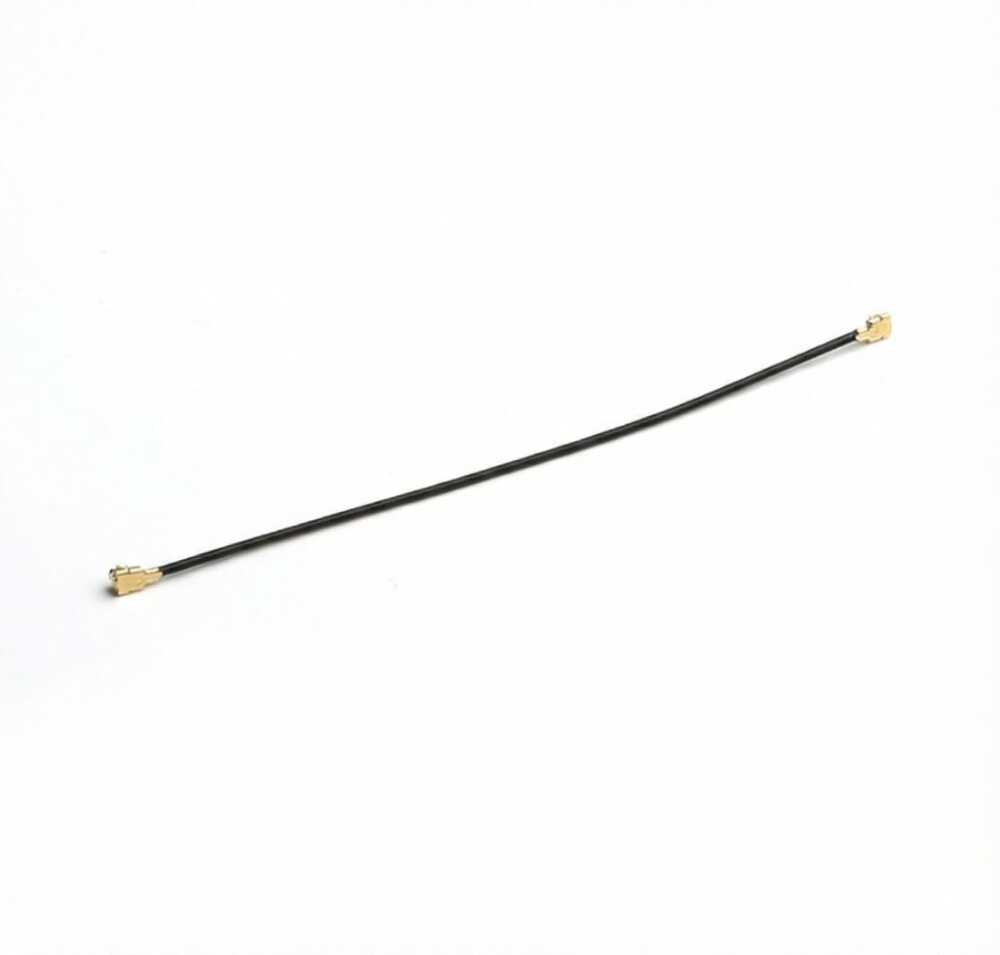

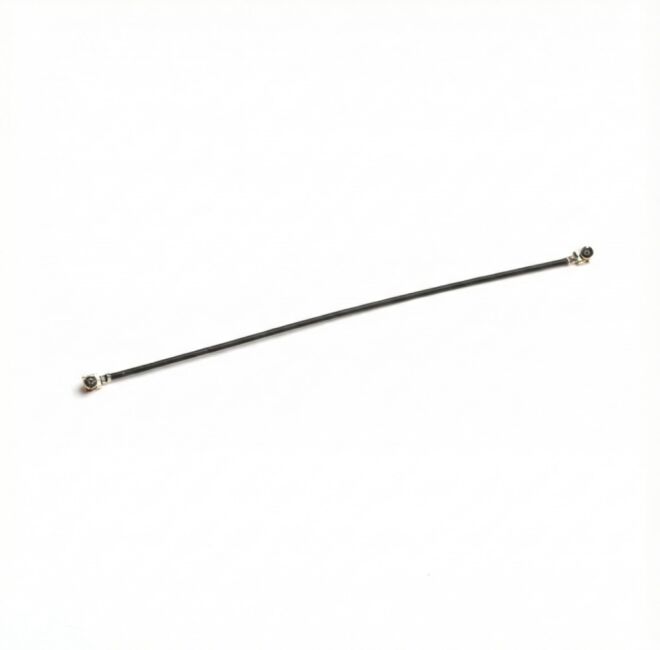

Antenna Home AHCG.103 IPX to IPX Interconnect Cable

Antenna Home AHCG.103 IPX to IPX Interconnect Cable

Antenna Home AHCG.103 is a compact and high-performance RF interconnect cable designed to provide reliable connectivity between IPX (I-PEX) connectorized RF components. It ensures stable signal transmission between antennas, RF modules, and RF boards in RF transceiver communication systems.

Supporting a wide frequency range from DC to 6 GHz, this cable maintains signal integrity thanks to its low VSWR and very low insertion loss. With a 10 cm cable length, it enables neat and flexible cable routing in space-constrained designs. It is ideal for IoT projects, GNSS applications, Wi-Fi, GSM, and other RF-based systems.

Antenna Home AHCG.103 IPX to IPX Interconnect Cable Technical Specifications:

• Product type: RF interconnect cable (Cable Assembly)

• Frequency range: DC – 6000 MHz (6 GHz)

• Impedance: 50Ω

• VSWR: ≤ 1.3

• Insertion loss: 0.3 dB

• Connectors: IPX (I-PEX) / IPX (I-PEX)

• Cable length: 100 mm

• Material & color: Copper / Black cable

• Weight: 1.0 g

• Operating temperature: -40°C ~ +85°C

Useful Links / Documents:

• AHCG.103 Datasheet (PDF)
