Antenna Home AHCG.101 SMA-IPX Converter Cable 12cm

Antenna Home AHCG.101 SMA-IPX Converter Cable 12cm

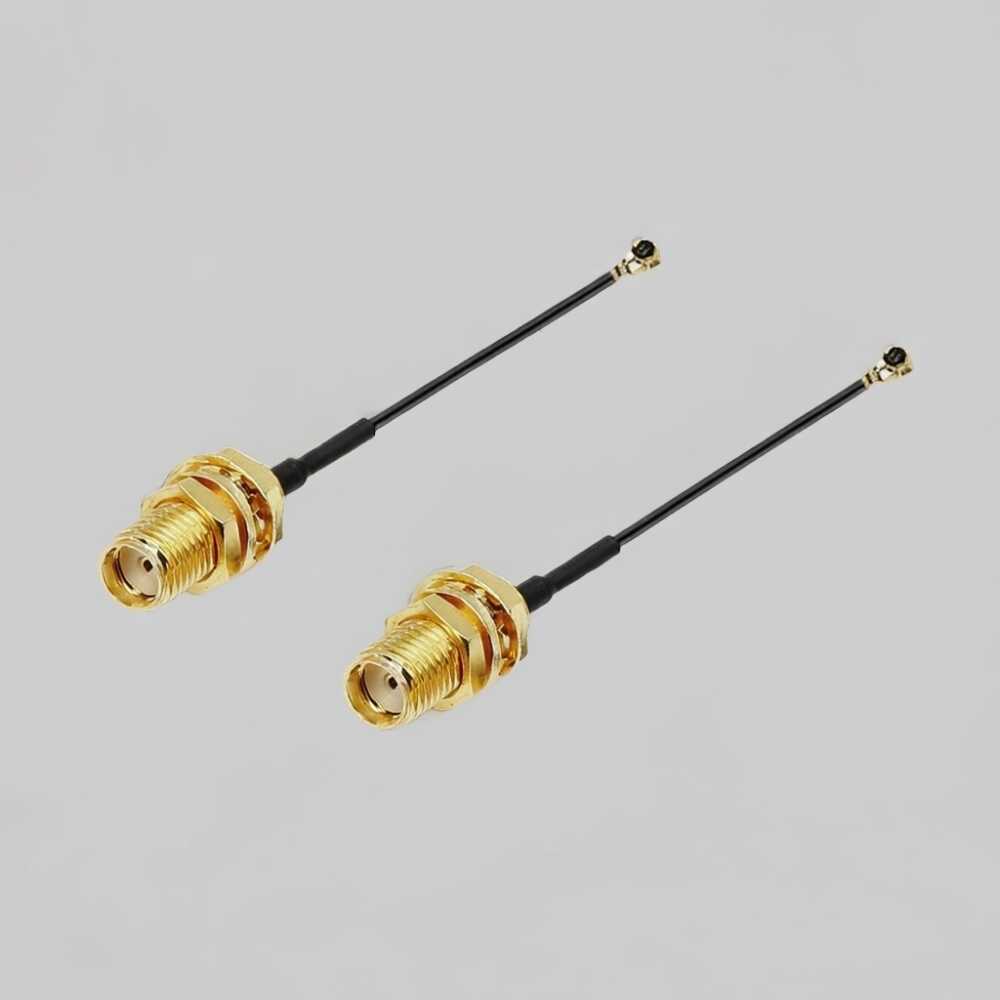

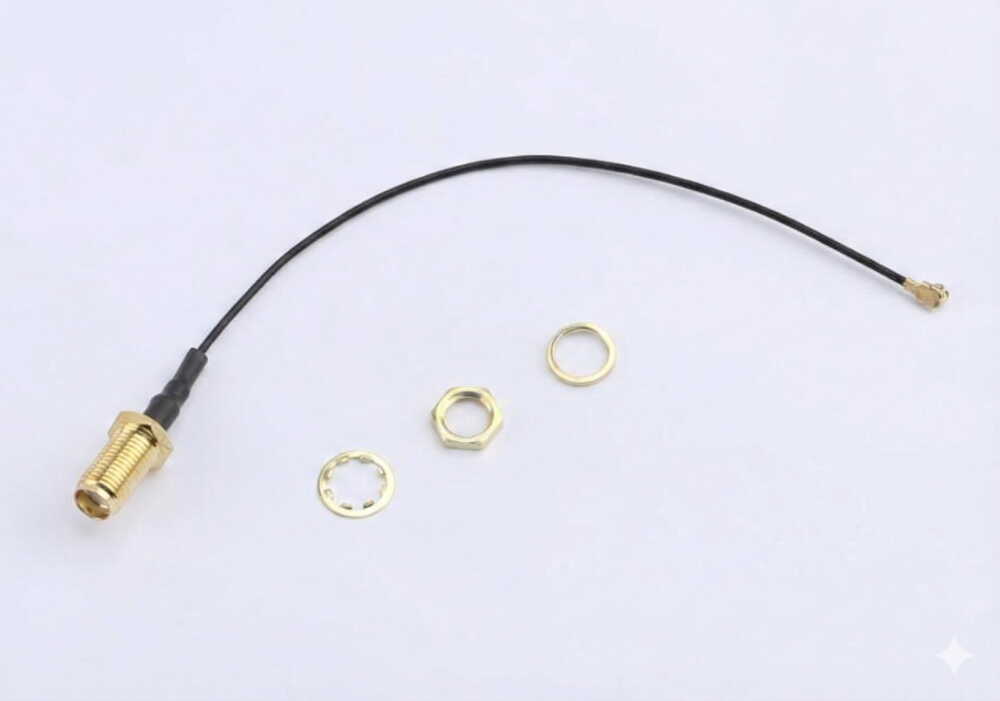

Antenna Home AHCG.101 is a high-quality RF converter cable designed to provide reliable connectivity between SMA and IPX (I-PEX) connectors. It ensures stable signal transmission between antennas, RF modules, and development boards in RF transceiver communication systems.

Supporting a wide frequency range from DC to 6 GHz, this cable minimizes signal loss thanks to its low insertion loss and low VSWR. With its compact 12 cm length, it enables clean and organized cable routing and is an ideal solution for IoT projects, GNSS applications, Wi-Fi, GSM, and other RF-based systems.

Antenna Home AHCG.101 SMA-IPX Converter Cable 12cm Technical Specifications:

• Product type: RF converter cable (Cable Assembly)

• Frequency range: DC – 6000 MHz (6 GHz)

• Impedance: 50Ω

• VSWR: ≤ 1.3

• Insertion loss: 0.5 dB

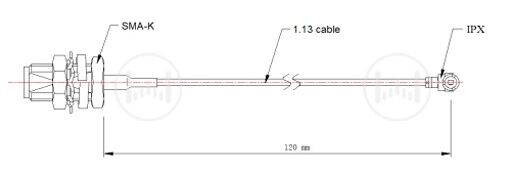

• Connectors: SMA-K / IPX (I-PEX)

• Cable length: 120 mm

• Material & color: Copper / Black cable

• Weight: 3.3 g

• Operating temperature: -40°C ~ +85°C

Useful Links / Documents:

• AHCG.101 Datasheet (PDF)
