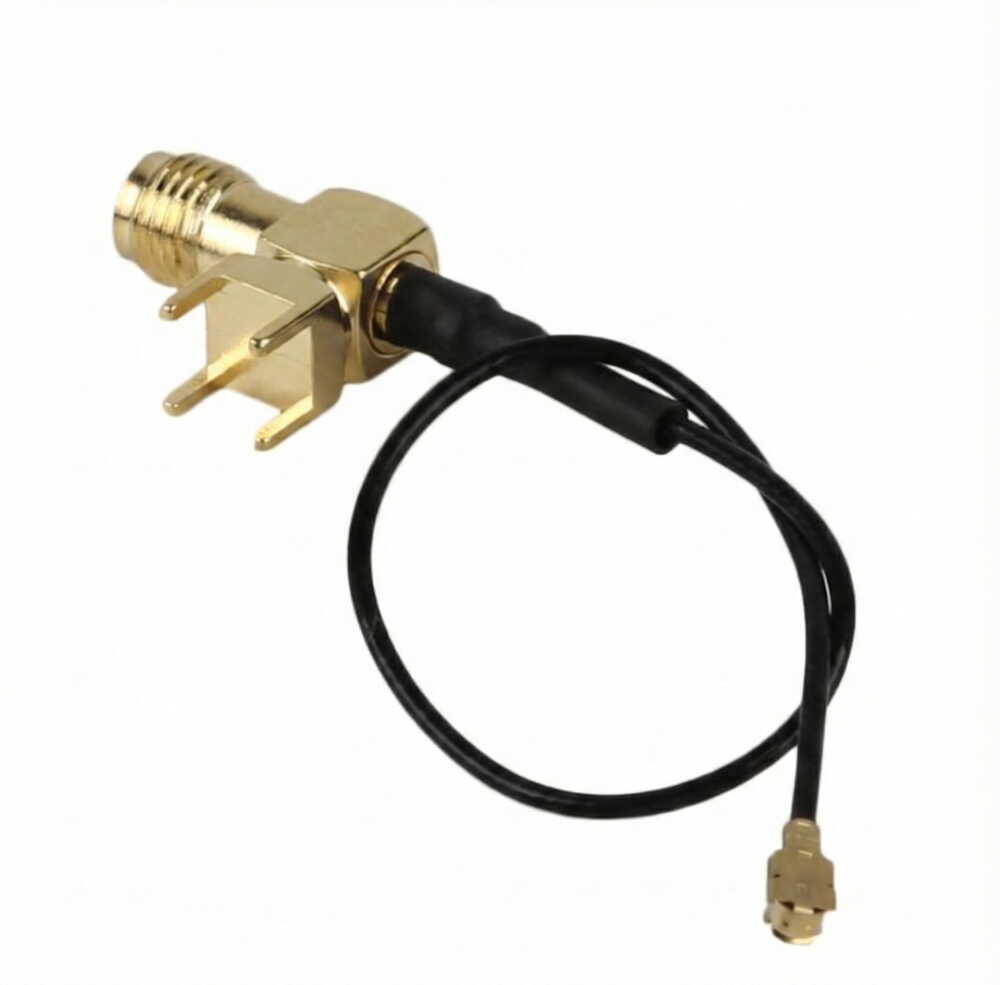

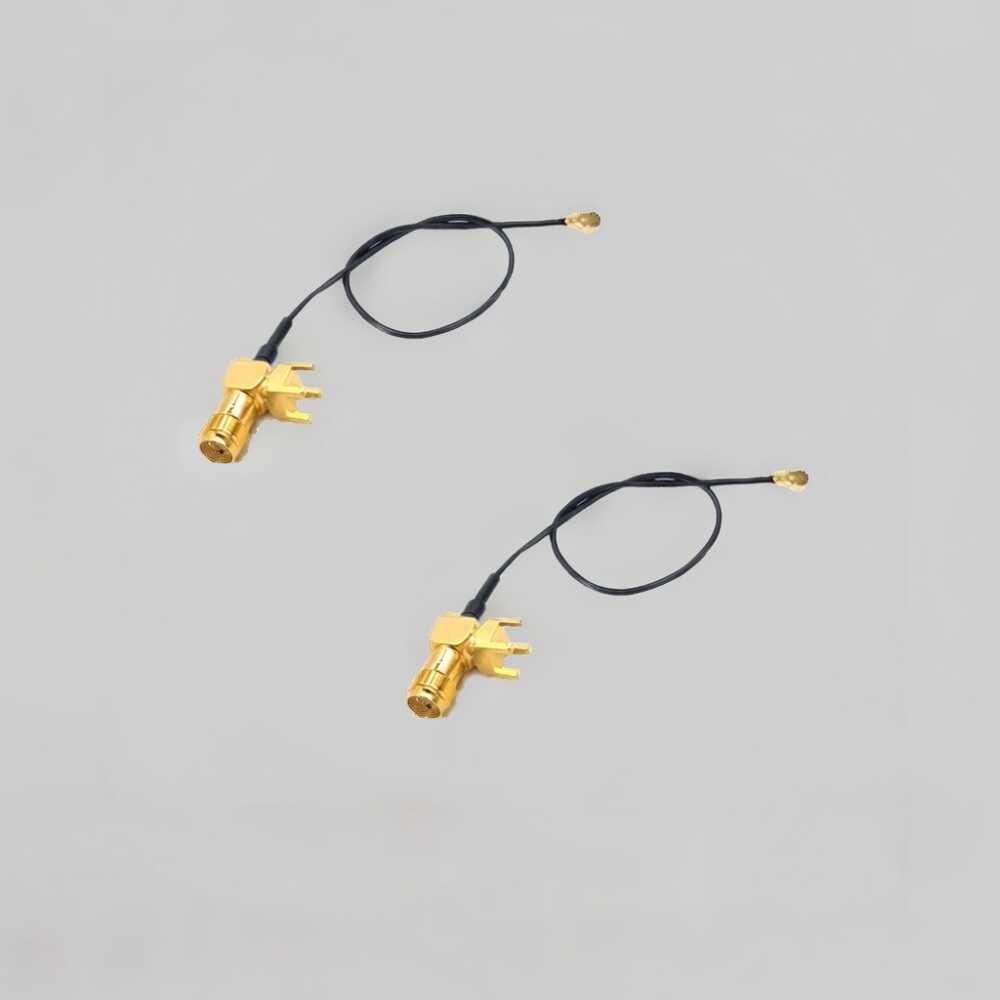

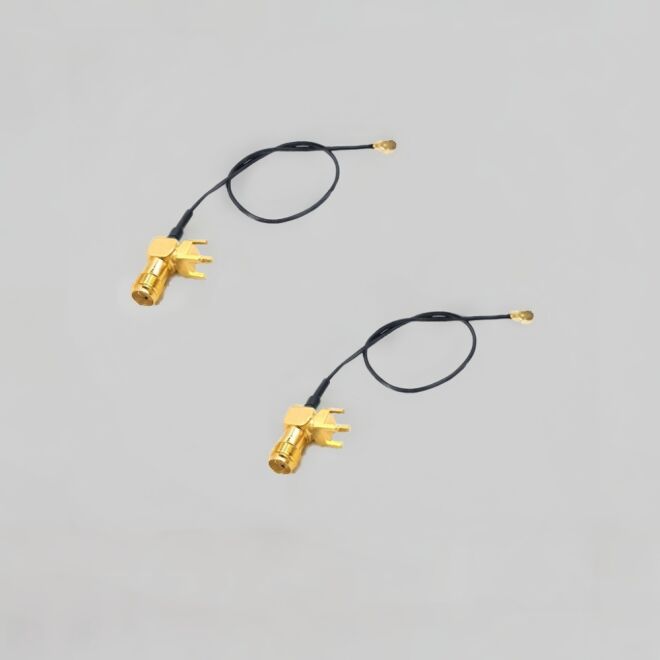

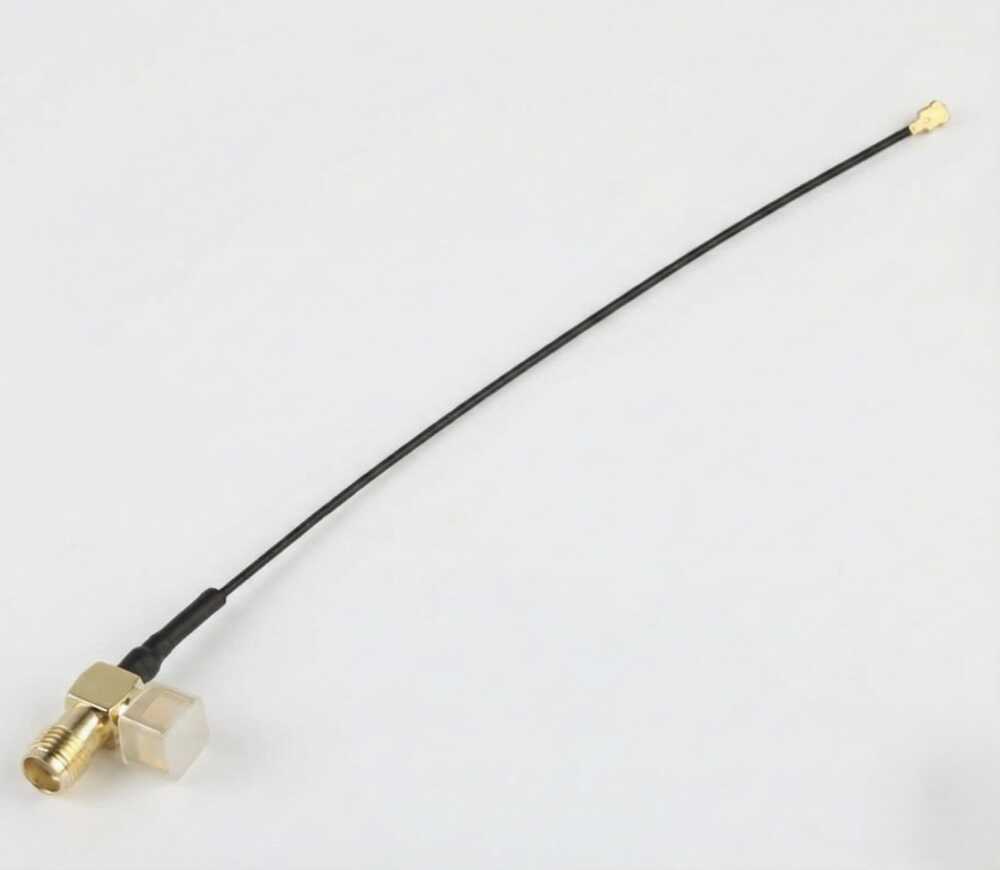

Antenna Home AHCG.102 SMA/B-IPX RF Cable 12cm

Antenna Home AHCG.102 SMA/B-IPX RF Cable 12cm

Antenna Home AHCG.102 is a high-performance RF cable assembly designed to provide reliable connectivity between SMA-B and IPX (I-PEX) connectors. It ensures stable signal transmission between antennas, RF modules, and RF boards in RF transceiver communication systems.

Supporting a wide frequency range from DC to 6 GHz, this cable maintains signal integrity thanks to its low VSWR and low insertion loss. With a compact length of 12 cm, it enables clean and practical cable routing in space-constrained designs. It is suitable for IoT projects, GNSS applications, GSM, Wi-Fi, and other RF-based systems.

Antenna Home AHCG.102 SMA/B-IPX RF Cable 12cm Technical Specifications:

• Product type: RF cable (Cable Assembly)

• Frequency range: DC – 6000 MHz (6 GHz)

• Impedance: 50Ω

• VSWR: ≤ 1.3

• Insertion loss: 0.6 dB

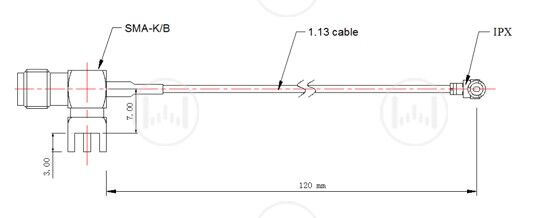

• Connectors: SMA-KB / IPX (I-PEX)

• Cable length: 120 mm

• Material & color: Copper / Black cable

• Weight: 4.0 g

• Operating temperature: -40°C ~ +85°C
