Antenna Home AH3G.403 4G/LTE NB-IoT Adhesive Antenna

Antenna Home AH3G.403 4G/LTE NB-IoT Adhesive Antenna

Antenna Home AH3G.403 is a compact and high-efficiency adhesive antenna designed for 2G, 3G, 4G/LTE, NB-IoT, and CAT.1 communication systems. With its wide frequency support, it delivers stable and reliable signal performance for various cellular communication applications.

Thanks to its 3M adhesive mounting structure, it can be easily fixed onto metal or flat surfaces. Equipped with an SMA-J connector and RG-174 cable, it is compatible with modems, IoT devices, industrial communication systems, and routers.

Its vertical omni-directional polarization ensures balanced signal reception from all directions. With an ABS housing and a wide operating temperature range, it is suitable for long-term use in both indoor and outdoor applications.

Antenna Home AH3G.403 Technical Specifications:

• Frequency Range: 800 – 2170 MHz

• Supported Technologies: 2G / 3G / 4G / LTE / NB-IoT / CAT.1

• Gain: 2.5 dBi

• Impedance: 50 Ohm

• VSWR: ≤ 2.0

• Polarization: Vertical / Omni

• Connector Type: SMA-J

• Cable Type: RG-174

• Mounting Type: 3M Adhesive

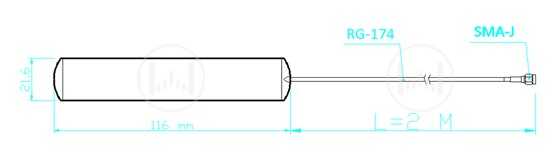

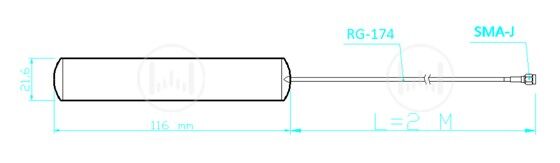

• Dimensions: 116 x 21.5 mm

• Weight: 35 g

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Antenna Home AH3G.403 Technical Datasheet (PDF)
