Antenna Home AH3G.402 4G NB-IoT Metal Spring Antenna

Antenna Home AH3G.402 4G NB-IoT Metal Spring Antenna

Antenna Home AH3G.402 is a high-performance metal spring antenna designed for 2G/3G/4G, NB-IoT, and CAT.1 communication systems. Thanks to its wide frequency range, it is compatible with various cellular communication technologies and provides stable signal transmission.

Its magnetic base allows easy installation on metal surfaces. With an SMA-J connector and RG-174 cable, it is compatible with many modems, routers, and IoT devices. Vertical omni-directional polarization ensures balanced signal reception from all directions.

Manufactured from durable copper material, the AH3G.402 can be safely used in harsh industrial and outdoor environments thanks to its wide operating temperature range of -40°C to +85°C.

Antenna Home AH3G.402 Technical Specifications:

• Frequency Range: 800 – 2690 MHz

• Supported Technologies: 2G / 3G / 4G / NB-IoT / CAT.1

• Gain: 3.5 dBi

• Impedance: 50 Ohm

• VSWR: ≤ 2.0

• Polarization: Vertical / Omni

• Connector Type: SMA-J

• Cable Type: RG-174

• Mounting Type: Magnetic Base

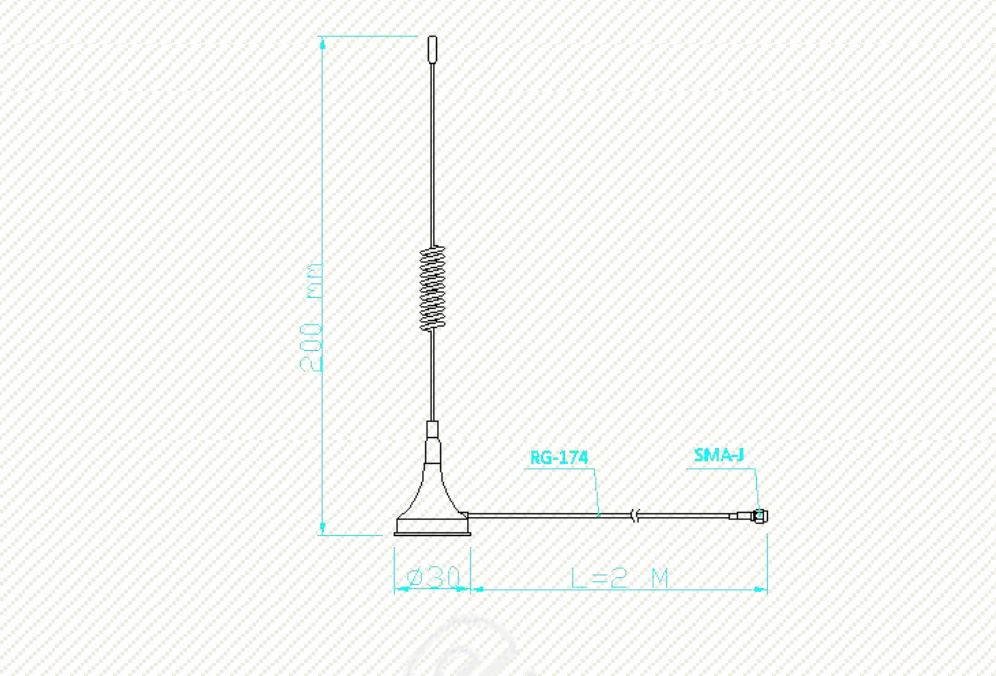

• Dimensions: Ø30 x 200 mm

• Weight: 45 g

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Antenna Home AH3G.402 Technical Datasheet (PDF)
