Antenna Home AH3G.205 GSM/GPRS 3G/4G/5G FPC Antenna

Antenna Home AH3G.205 GSM/GPRS 3G/4G/5G FPC Antenna

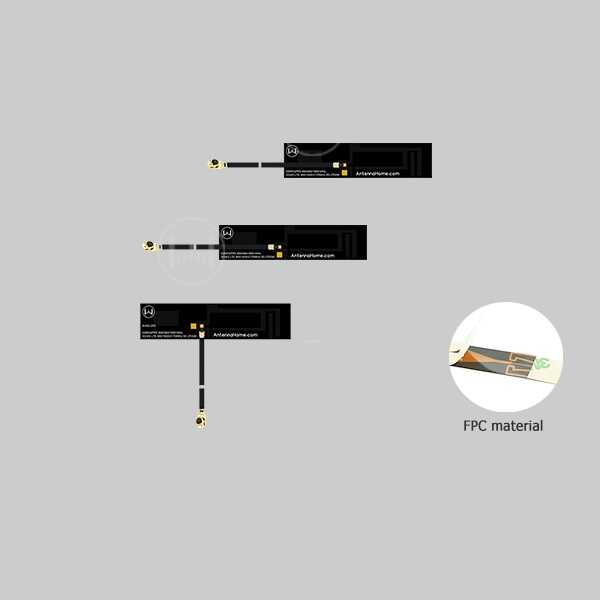

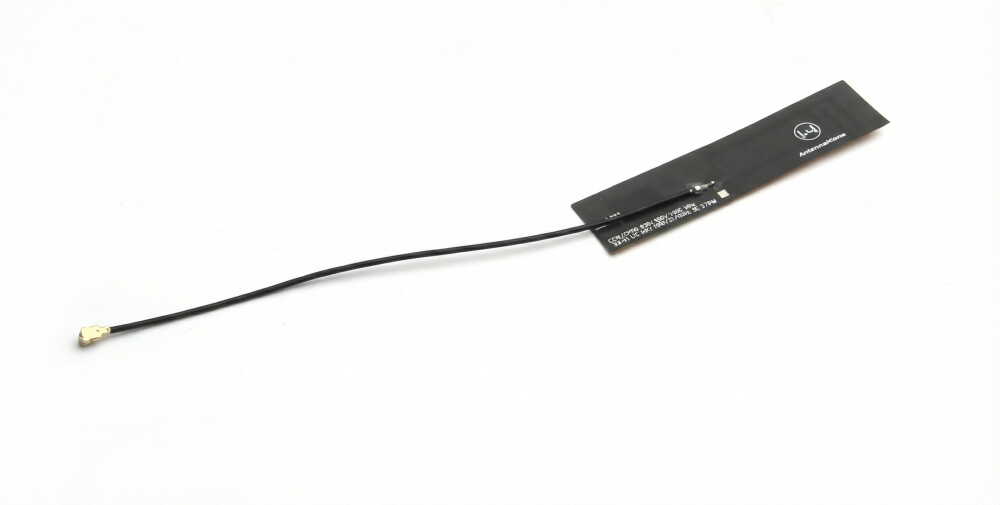

Antenna Home AH3G.205 is a wideband internal FPC (Flexible Printed Circuit) antenna supporting GSM, GPRS, WCDMA, LTE, NB-IoT, Cat.1, and 4G/5G applications. Operating in the 824 MHz – 2700 MHz frequency range, it is an ideal solution for IoT devices, industrial modems, smart meters, and tracking systems that require reliable cellular communication.

Equipped with an IPX (I-PEX) connector and a 1.13 mm coaxial cable, it allows easy connection to RF modules. Its compact and lightweight design enables flexible internal mounting, while stable gain and an omni-directional radiation pattern ensure dependable wireless performance.

Antenna Home AH3G.205 GSM/GPRS 3G/4G/5G FPC Antenna Technical Specifications:

• Frequency range: 824 – 2700 MHz

• Supported systems: GSM / GPRS / WCDMA / LTE / NB-IoT / Cat.1 / 4G / 5G

• Impedance: 50Ω

• VSWR: ≤ 2.0

• Gain: 1.5 dBi

• Polarization: Vertical / Omni

• Connector & Cable: IPX (I-PEX), 1.13 mm coaxial cable

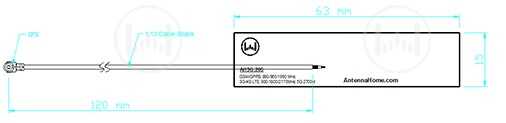

• Antenna dimensions: 15 mm x 63 mm

• Weight: 0.8 g

• Operating temperature: -40°C ~ +85°C

• Material: Copper

Useful Links / Documents:

• AH3G.205 Datasheet (PDF)
