Notify me when its in stockAntenna Home AH3G.101 2G/3G H108 SMA-J Plastic Antenna

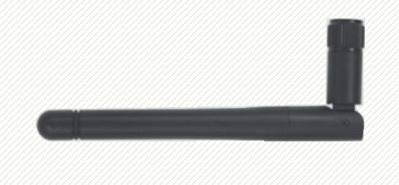

Antenna Home AH3G.101 is a compact plastic (rubber ducky) antenna with an SMA-J connector, designed for 2G and 3G communication applications. It provides reliable signal transmission for GSM, GPRS, and WCDMA based systems.
Thanks to its wide frequency range, it can also be used in NB-IoT, Cat.1, and LoRa 868/915 MHz applications. Its vertical and omni-directional radiation pattern ensures stable performance, while the ABS outer housing and copper internal structure offer long-lasting durability.

Antenna Home AH3G.101 Technical Specifications:
Operating Frequency: 824 ~ 2170 MHz
Supported Bands: 2G / 3G (GSM, GPRS, WCDMA)
Gain: 2.0 dBi
Impedance: 50 Ohm
VSWR: ≤ 2.5
Polarization: Vertical / Omni
Connector Type: SMA-J
Antenna Type: Rubber Ducky Antenna

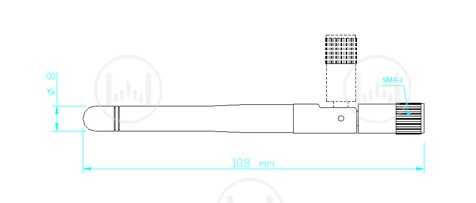

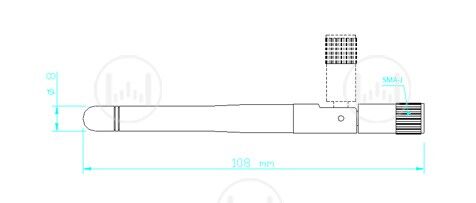

Dimensions: Ø8 x 108 mm
Weight: 6 g
Operating Temperature: -40°C ~ +85°C
