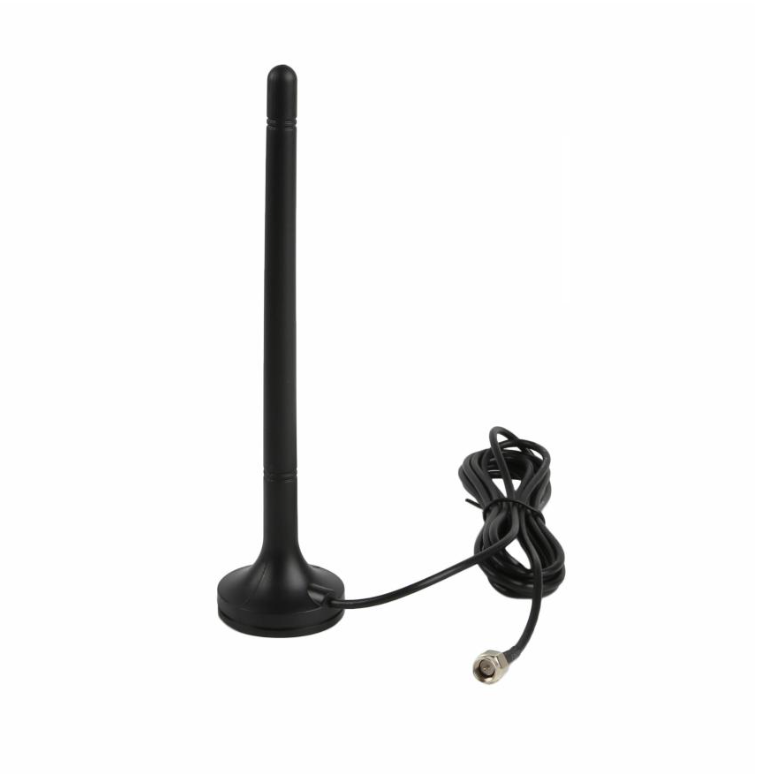

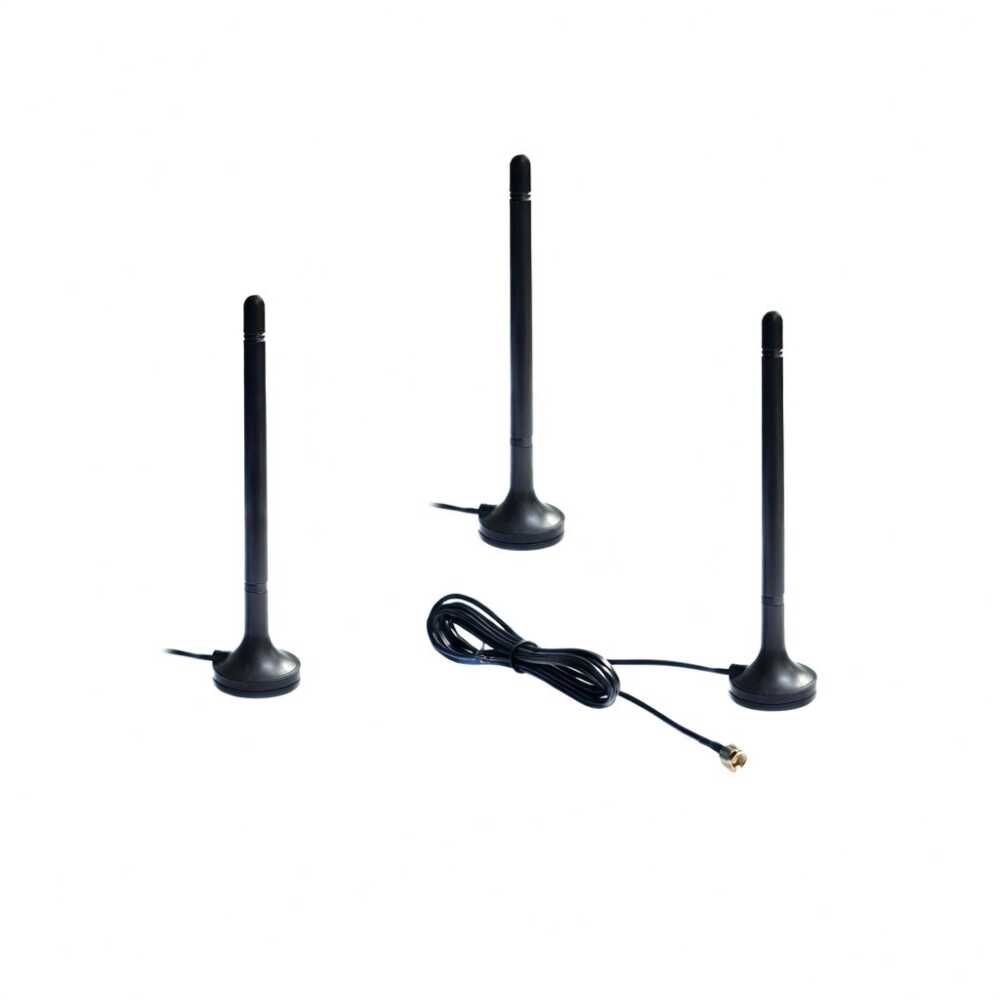

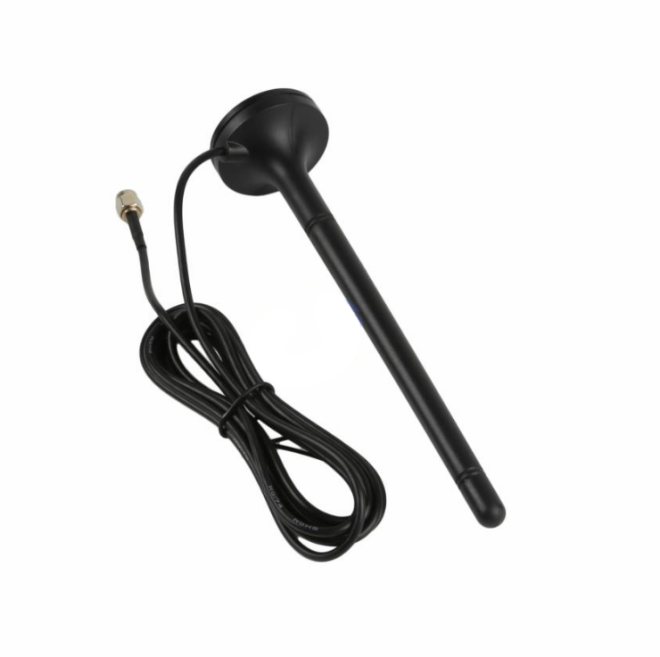

Antenna Home AH2G.401 2.4GHz Magnetic SMA Antenna

Antenna Home AH2G.401 2.4GHz Magnetic SMA Antenna

Antenna Home AH2G.401 is a high-performance magnetic SMA antenna designed for WiFi, Bluetooth, and ZigBee applications operating in the 2.4GHz band. Its rubber-coated external structure provides durable use while ensuring stable and reliable signal transmission.

Thanks to its magnetic base, it can be easily mounted on metal surfaces. With an SMA-J connector and RG-174 cable, it is fully compatible with modems, routers, wireless access points, and IoT devices.

Featuring vertical omni-directional polarization, it delivers balanced signal reception from all directions. Its wide operating temperature range from -40°C to +85°C makes it suitable for both indoor and outdoor applications.

Antenna Home AH2G.401 Technical Specifications:

• Frequency Range: 2400 – 2500 MHz

• Supported Technologies: WiFi / Bluetooth / ZigBee

• Gain: 2 dBi

• Impedance: 50 Ohm

• VSWR: ≤ 2.0

• Polarization: Vertical / Omni

• Connector Type: SMA-J

• Cable Type: RG-174

• Mounting Type: Magnetic

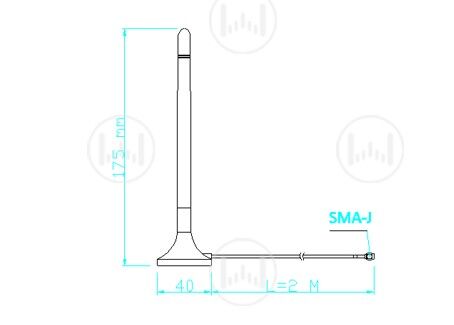

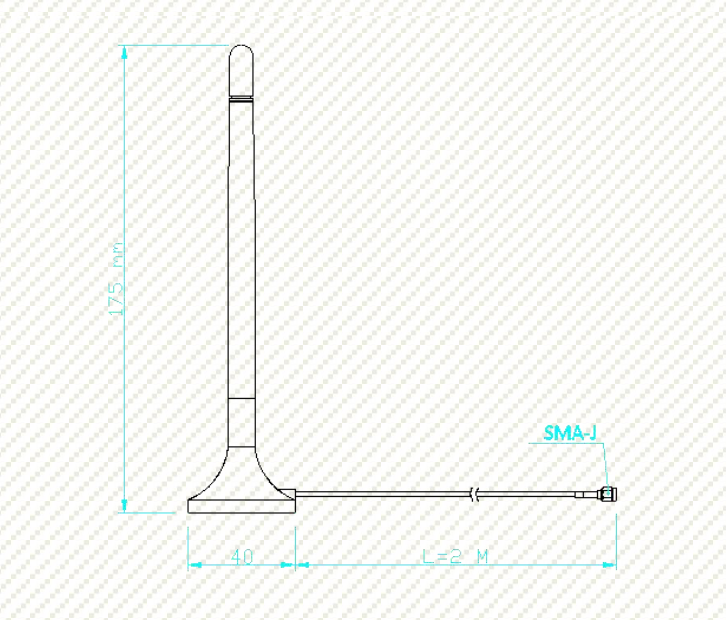

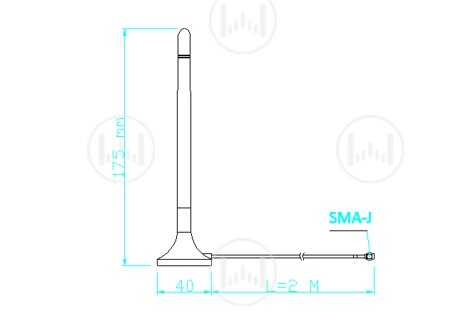

• Dimensions: Ø40 x 175 mm

• Weight: 25 g

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Antenna Home AH2G.401 Technical Datasheet (PDF)
