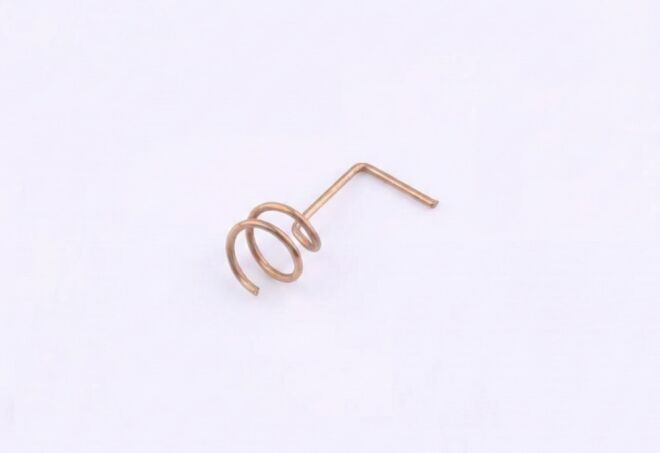

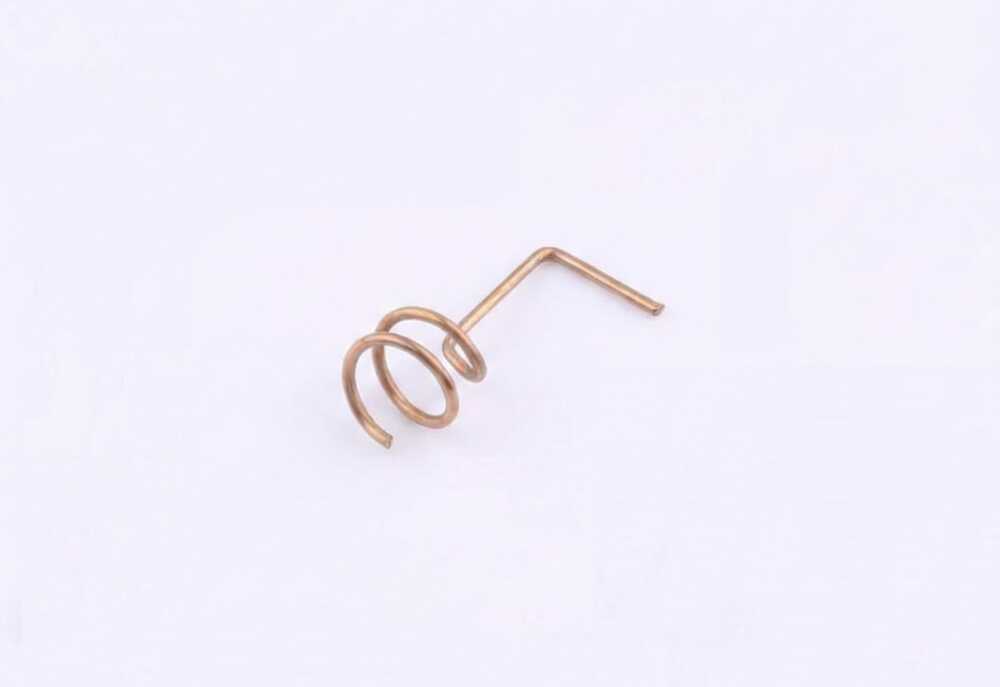

Antenna Home AH2G.304 2.4GHz Spring DIP Antenna

Antenna Home AH2G.304 2.4GHz Spring DIP Antenna

Antenna Home AH2G.304 is a spring-type DIP antenna designed for applications operating in the 2.4GHz frequency band. Thanks to its small dimensions, it can be directly mounted onto PCBs and is an ideal solution for compact electronic designs.

This antenna supports IEEE 802.11 b/g/n standards and is widely used in Wi-Fi, Bluetooth, and ZigBee communication systems. With its 50-ohm impedance and balanced gain structure, it provides stable and reliable wireless communication performance.

Manufactured from copper material, the AH2G.304 is suitable for both industrial and commercial applications thanks to its wide operating temperature range from -40°C to +85°C.

Antenna Home AH2G.304 Technical Specifications:

• Operating Frequency: 2400 – 2500 MHz

• Antenna Type: Spring DIP Antenna

• Gain: 1 dBi

• Impedance: 50 Ω

• VSWR: ≤ 2.0

• Polarization: Vertical / Omnidirectional

• Mounting Type: DIP

• Material: Copper

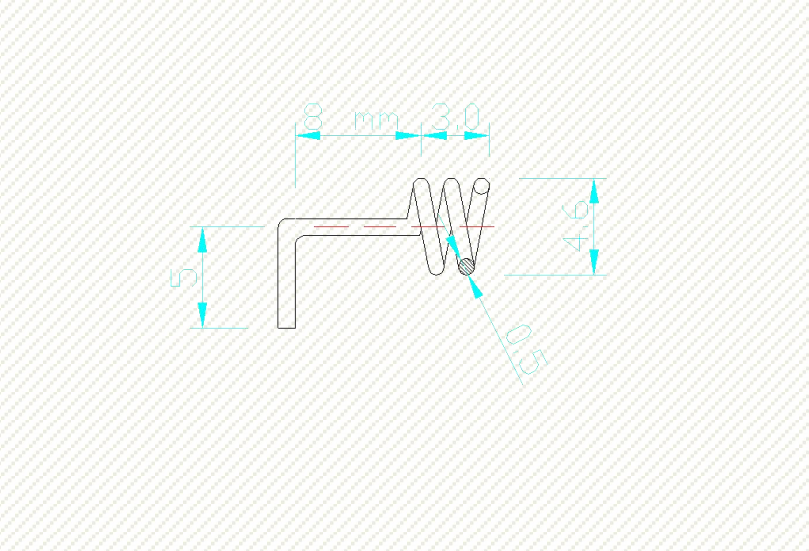

• Dimensions: Ø4.5 x 11 mm

• Weight: 0.2 g

• Operating Temperature: -40°C ~ +85°C
