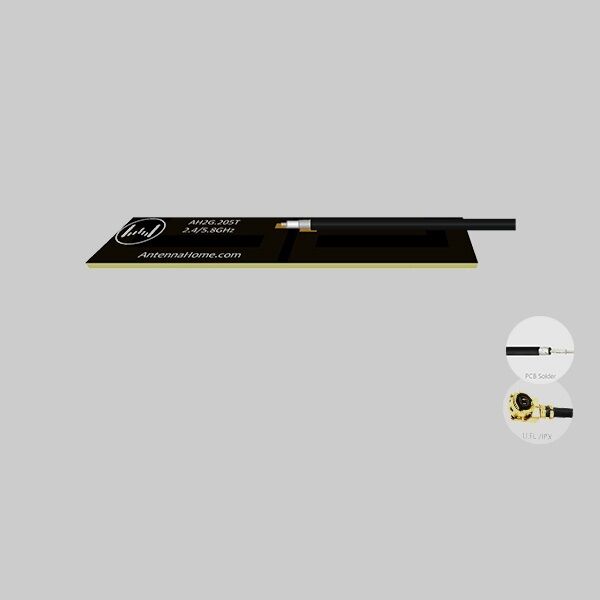

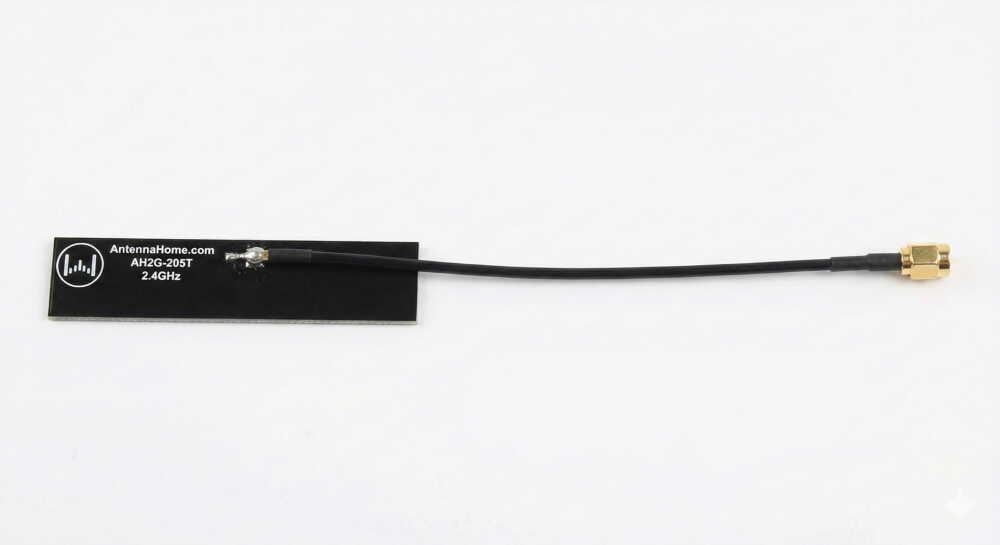

Antenna Home AH2G.205T 2.4/5.8GHz Dual Band PCB Antenna

Antenna Home AH2G.205T 2.4/5.8GHz Dual Band PCB Antenna

Antenna Home AH2G.205T is a compact dual-band internal PCB antenna designed to operate in the 2.4GHz and 5.8GHz frequency bands. It is specifically developed for Wi-Fi, Bluetooth (BLE), and ZigBee based wireless communication applications.

Its PCB-mountable structure eliminates the need for an external antenna and helps save space inside the device. With a vertical and omni-directional radiation pattern, it provides stable and balanced signal performance. It is an ideal solution for IoT devices, embedded systems, and compact electronic designs.

Antenna Home AH2G.205T Technical Specifications:

• Operating Frequency: 2400 ~ 2500 MHz / 5150 ~ 5850 MHz

• Frequency Band: 2.4 GHz & 5.8 GHz (Dual Band)

• Gain: 2 ~ 3 dBi

• Impedance: 50 Ohm

• Polarization: Vertical / Omni

• Antenna Type: Internal PCB Antenna

• Connection Type: PCB solder connection / via cable

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Product Technical Datasheet (PDF)
