Antenna Home AH2G.103 2.4GHz 5dBi H198 Plastic Antenna

Antenna Home AH2G.103 2.4GHz 5dBi H198 Plastic Antenna

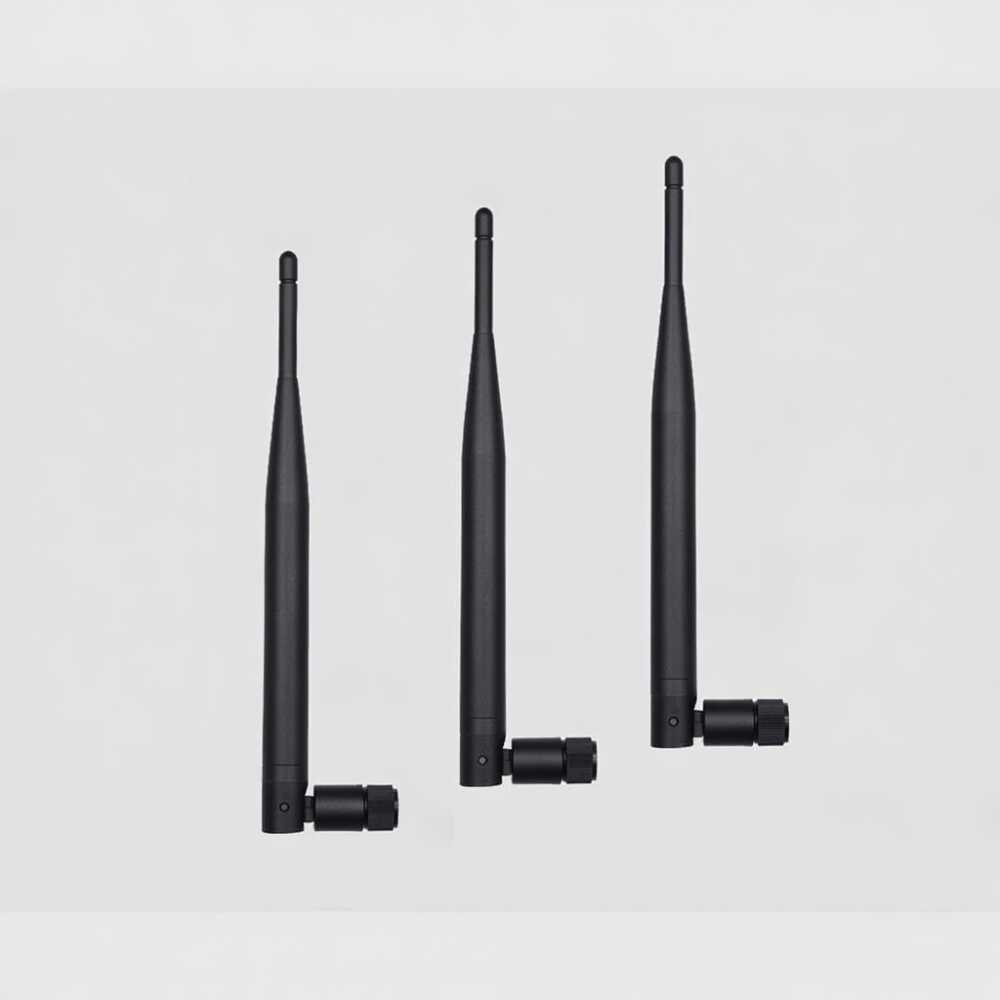

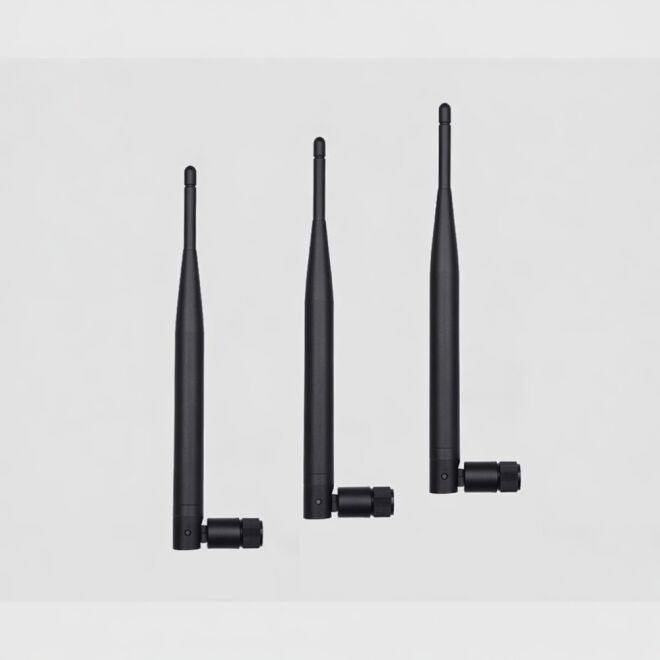

Antenna Home AH2G.103 is a high-gain plastic (rubber) antenna with an SMA-J connector, operating in the 2.4GHz frequency band. It is specifically designed for Wi-Fi, Bluetooth, and ZigBee based wireless communication applications.

With its 5 dBi gain, it provides wider coverage and stronger signal performance compared to standard antennas. Its vertical and omni-directional radiation pattern ensures stable connectivity in indoor and industrial environments. The ABS outer housing and copper internal structure offer long-lasting and reliable use.

Antenna Home AH2G.103 Technical Specifications:

• Operating Frequency: 2400 ~ 2500 MHz

• Frequency Band: 2.4 GHz

• Gain: 5 dBi

• Impedance: 50 Ohm

• VSWR: ≤ 2.0

• Polarization: Vertical / Omni

• Connector Type: SMA-J

• Antenna Type: Rubber Plastic Antenna

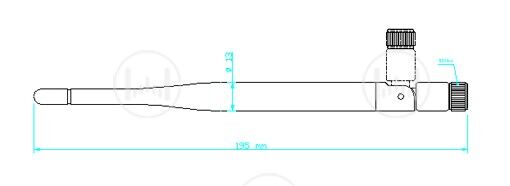

• Dimensions: Ø13 x 198 mm

• Weight: ~9 g

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Product Technical Datasheet (PDF)
