Antenna Home AH2G.102 5.8GHz H108 SMA-J Plastic Antenna

Antenna Home AH2G.102 5.8GHz H108 SMA-J Plastic Antenna

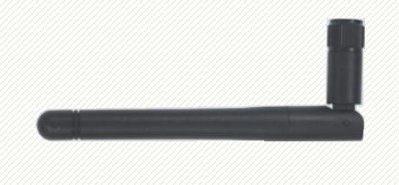

Antenna Home AH2G.102 is a compact plastic (rubber ducky) antenna with an SMA-J connector, operating in the 5.8GHz frequency band. It is specifically designed for wireless communication systems using the 802.11 a/ac standard.

With its vertical and omni-directional radiation pattern, it delivers stable and reliable signal performance. The ABS outer housing combined with a copper internal structure ensures mechanical durability and long-term use.

Antenna Home AH2G.102 Technical Specifications:

• Operating Frequency: 5150 ~ 5810 MHz

• Frequency Band: 5.8 GHz

• Gain: 2.0 dBi

• Impedance: 50 Ohm

• VSWR: ≤ 2.0

• Polarization: Vertical / Omni

• Connector Type: SMA-J

• Antenna Type: Rubber Ducky Antenna

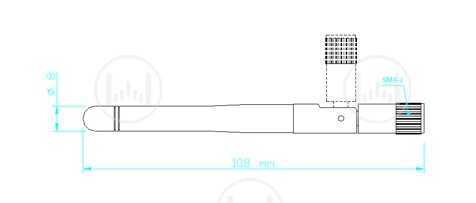

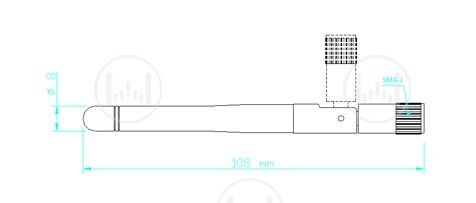

• Dimensions: Ø8 x 108 mm

• Weight: 6 g

• Operating Temperature: -40°C ~ +85°C

Useful Links / Documents:

• Product Technical Datasheet (PDF)
