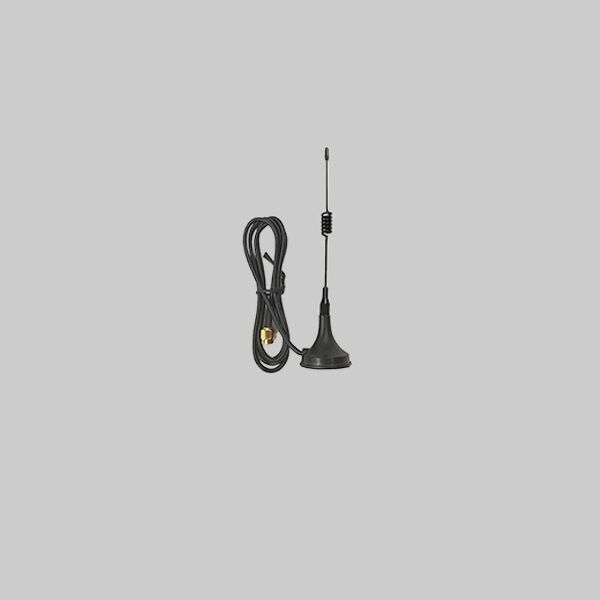

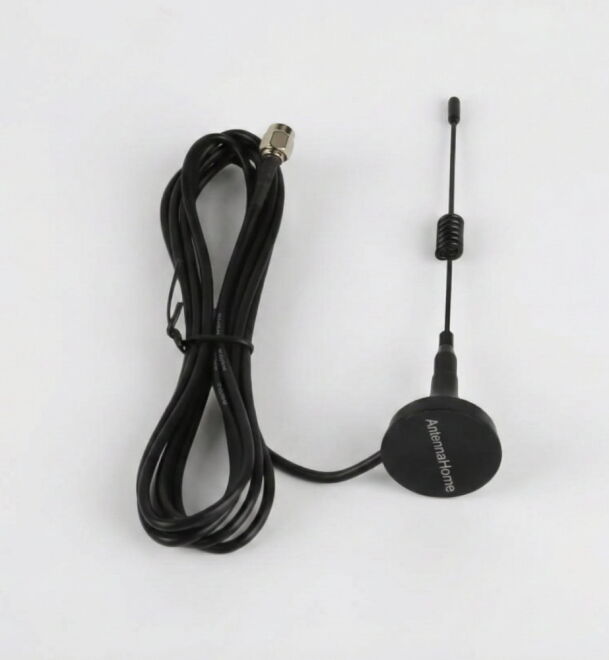

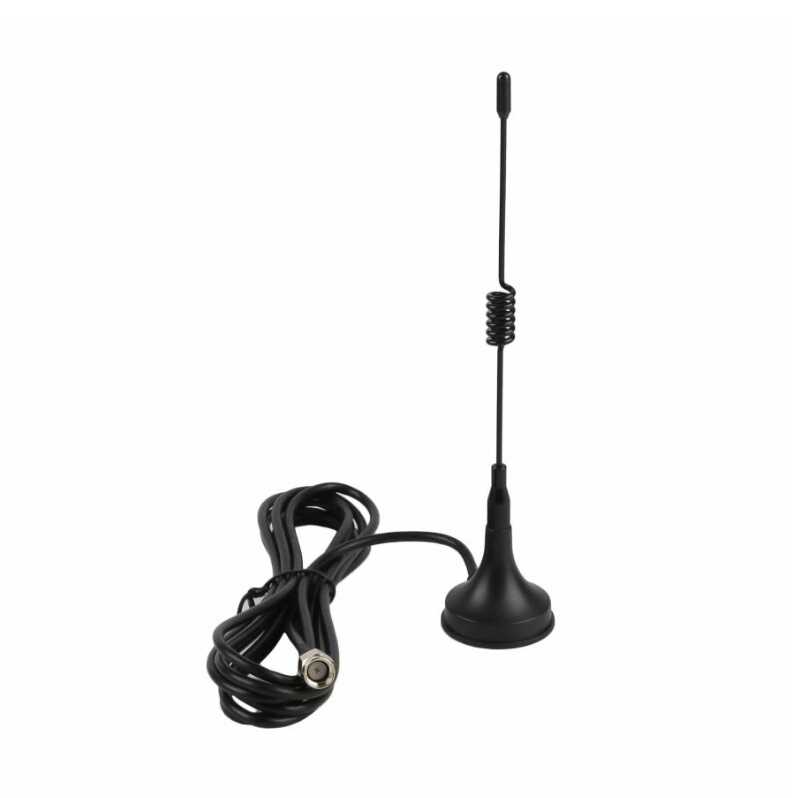

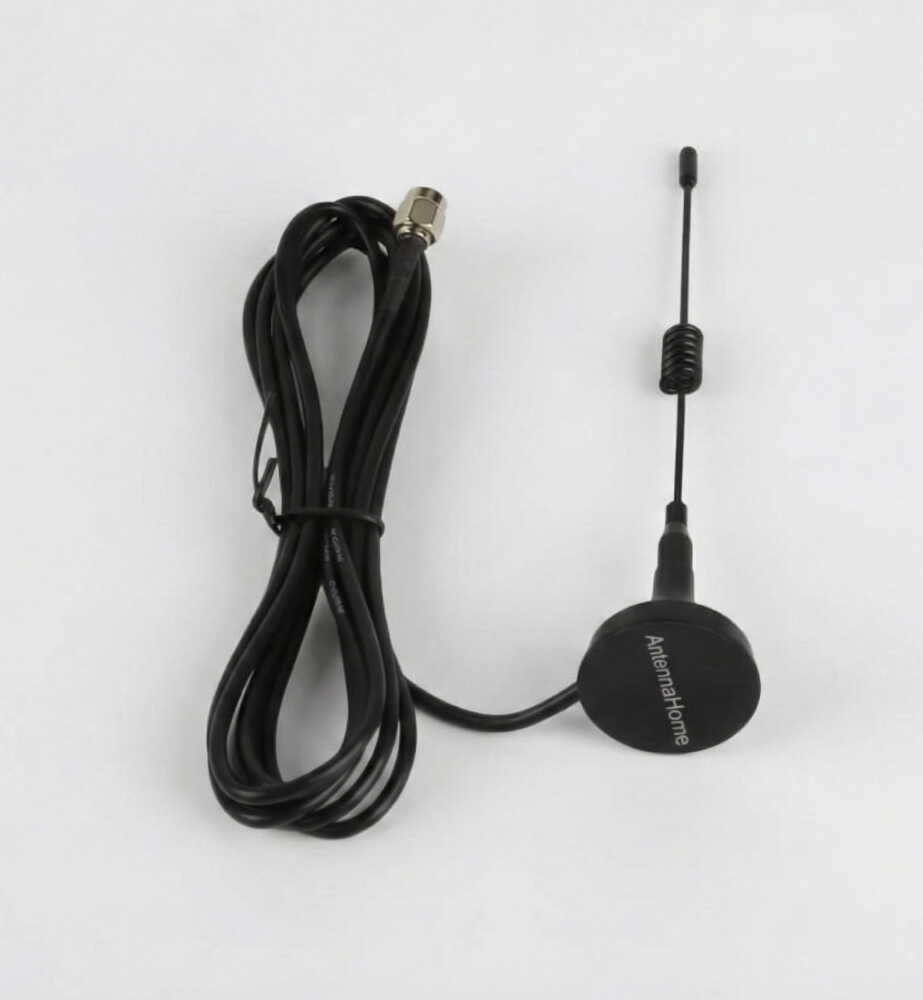

Antenna Home AH1G.406 433MHz Magnetic SMA Antenna

Antenna Home AH1G.406 433MHz Magnetic SMA Antenna

Antenna Home AH1G.406 is a high-performance magnetic SMA antenna designed for 433 MHz applications operating in the ISM band. It provides reliable signal transmission for LoRa 408–433 MHz systems, remote control, transceiver, and data communication applications.

Thanks to its magnetic base, it can be easily mounted on metal surfaces, offering flexible installation options. With a gain of 3.5–4.0 dBi, low VSWR, and an omnidirectional radiation pattern, it delivers wide coverage. The SMA-J connector and RG-174 cable ensure compatibility with many RF modules and devices.

Antenna Home AH1G.406 433MHz Magnetic SMA Antenna Technical Specifications:

• Frequency range: 408 MHz ±5 MHz / 433 MHz

• Impedance: 50Ω

• VSWR: ≤ 1.5

• Gain: 3.5 ~ 4.0 dBi

• Polarization: Vertical / Omnidirectional

• Connector & cable: SMA-J & RG-174

• Mounting type: Magnetic

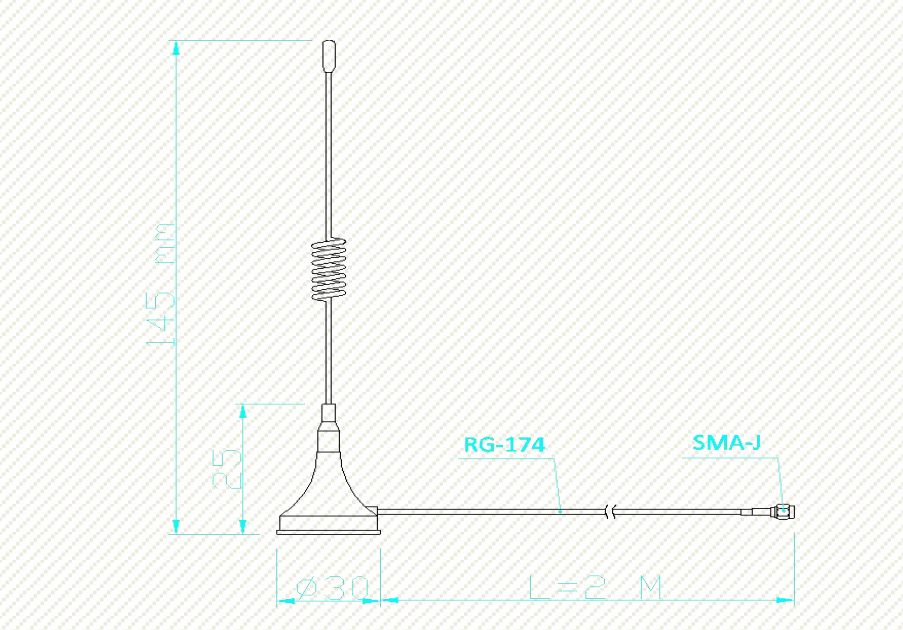

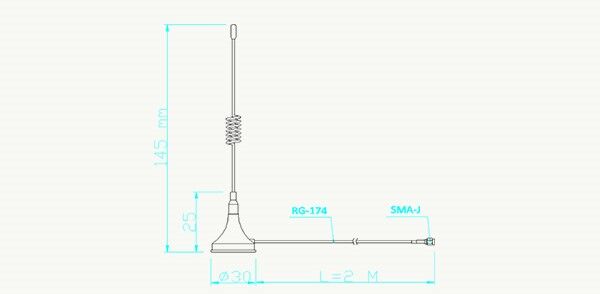

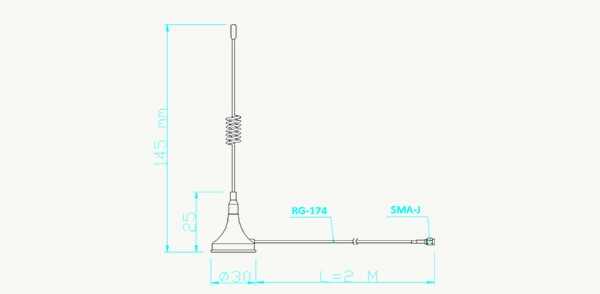

• Dimensions: Ø30 × 145 mm

• Weight: 40.5 g

• Operating temperature: -40 °C ~ +85 °C

Useful Links / Documents:

• AH1G.406 Datasheet (PDF)
