Antenna Home AH1G.312 868/915MHz Spring DIP Antenna

Antenna Home AH1G.312 868/915MHz Spring DIP Antenna

Antenna Home AH1G.312 is a spring-type DIP antenna designed for LoRa and ISM-based applications operating in the 868MHz and 915MHz frequency bands. Its compact structure allows easy PCB mounting and makes it an ideal solution for low-profile designs.

It is widely used in LoRa, LoRaWAN, Sub-1GHz, and ISM band data transmission and receiver applications. With its 50-ohm impedance and balanced gain structure, it delivers stable and reliable wireless communication performance.

Manufactured from copper and ABS materials, the AH1G.312 is suitable for industrial and harsh environmental conditions thanks to its wide operating temperature range from -40°C to +85°C.

Antenna Home AH1G.312 Technical Specifications:

• Operating Frequency: 868 / 915 MHz

• Antenna Type: Spring DIP Antenna

• Gain: 1 dBi

• Impedance: 50 Ω

• VSWR: ≤ 2.5

• Polarization: Vertical / Omnidirectional

• Mounting Type: DIP

• Material: Copper / ABS

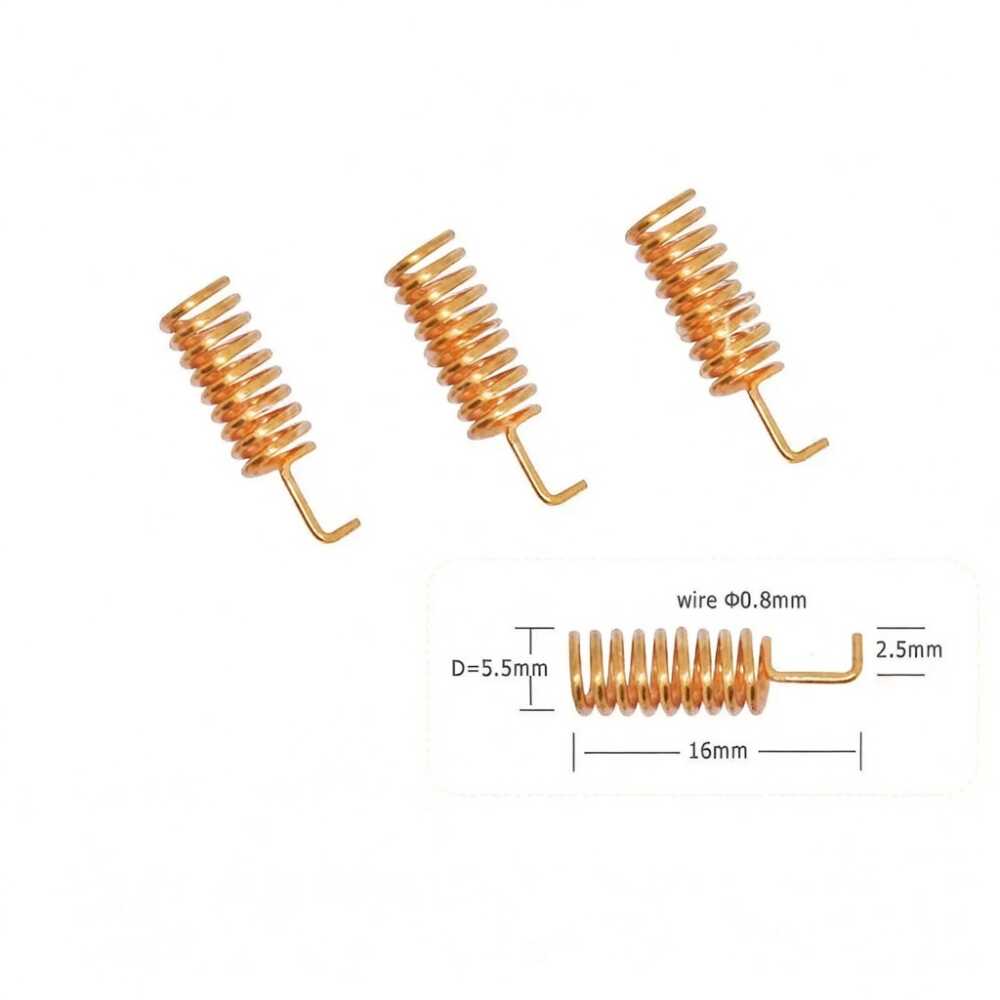

• Dimensions: Ø5.5 x 16 mm

• Weight: 0.7 g

• Operating Temperature: -40°C ~ +85°C

Useful Links:

• Product Datasheet (PDF)
