Antenna Home AH1G.302 868/915MHz GSM Spring Antenna

Antenna Home AH1G.302 868/915MHz GSM Spring Antenna

Antenna Home AH1G.302 is a spring-type DIP antenna designed to operate in the 868MHz and 915MHz frequency bands. Thanks to its compact dimensions, it allows easy PCB mounting and helps save space in electronic designs.

It can be safely used in LoRa 868/915MHz, GSM/GPRS 900/1800MHz, NB-IoT, and ISM band–based data transmission and receiver systems. With its 50-ohm impedance and balanced gain structure, it delivers stable and efficient wireless communication performance.

Manufactured using copper and ABS materials, the AH1G.302 is suitable for industrial and outdoor applications thanks to its wide operating temperature range from -40°C to +85°C.

Antenna Home AH1G.302 Technical Specifications:

• Operating Frequency: 868 / 915 MHz, 900 / 1800 MHz

• Antenna Type: Spring DIP Antenna

• Gain: 1 dBi

• Impedance: 50 Ω

• VSWR: ≤ 2.5

• Polarization: Vertical / Omnidirectional

• Mounting Type: DIP

• Material: Copper / ABS

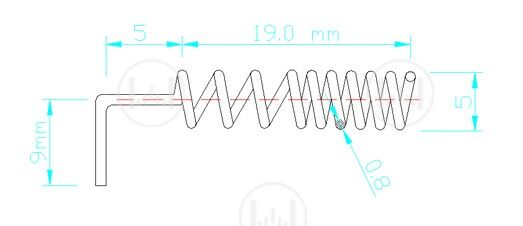

• Dimensions: Ø5.0 x 24 mm

• Operating Temperature: -40°C ~ +85°C
