Antenna Home AH1G.301 433MHz Spring DIP Antenna

Antenna Home AH1G.301 433MHz Spring DIP Antenna

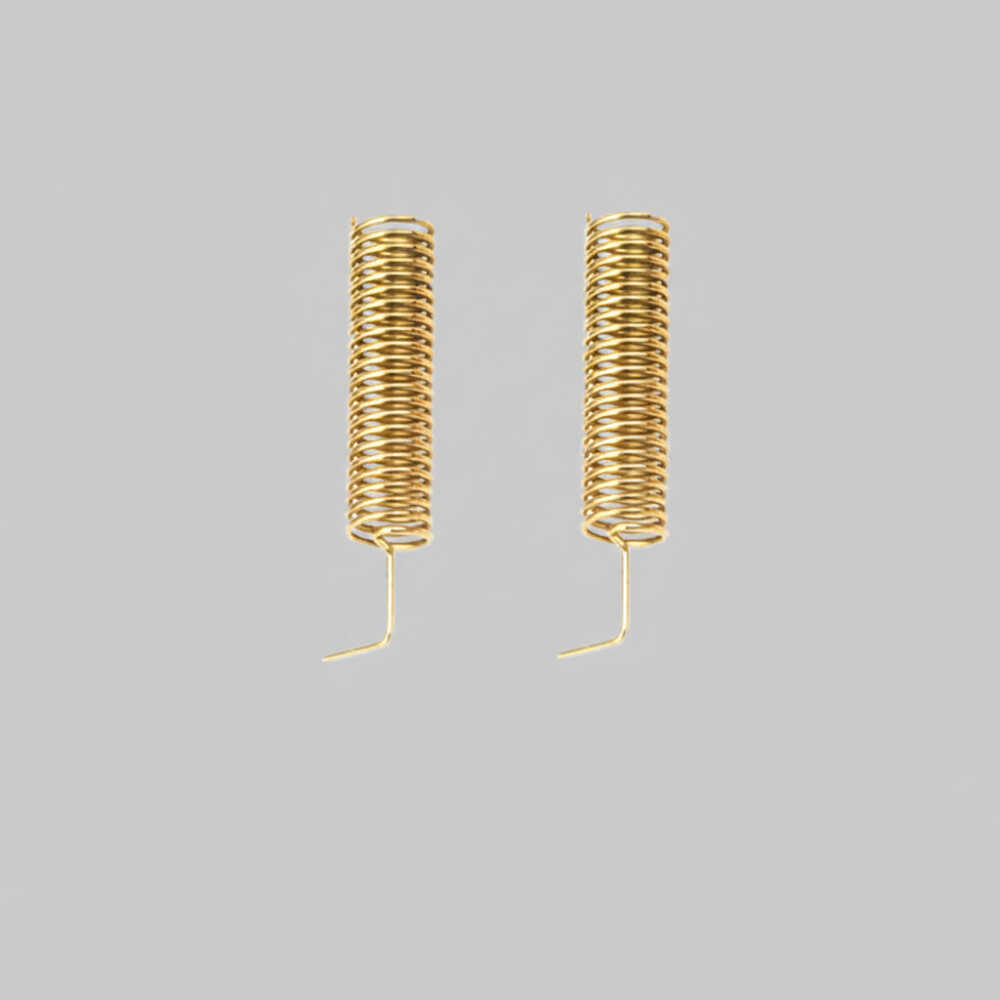

Antenna Home AH1G.301 is a spring-type DIP antenna designed for applications operating in the 433MHz ISM band. Its compact and low-profile structure allows easy PCB mounting while saving space in electronic designs.

Commonly used in LoRa communication systems, remote control circuits, data transmission, and receiver applications, this antenna provides stable and reliable performance with its 50-ohm impedance and 1 dBi gain.

Manufactured from copper material, the AH1G.301 can operate reliably under harsh environmental conditions thanks to its wide operating temperature range of -40°C to +85°C.

Antenna Home AH1G.301 Technical Specifications:

• Operating Frequency: 433 MHz

• Antenna Type: Spring DIP Antenna

• Gain: 1 dBi

• Impedance: 50 Ω

• VSWR: ≤ 2.0

• Polarization: Vertical / Omnidirectional

• Mounting Type: DIP

• Material: Copper

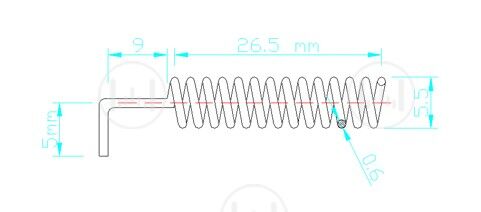

• Dimensions: Ø5.5 x 36 mm

• Operating Temperature: -40°C ~ +85°C

Useful Links:

• Product Datasheet (PDF)
