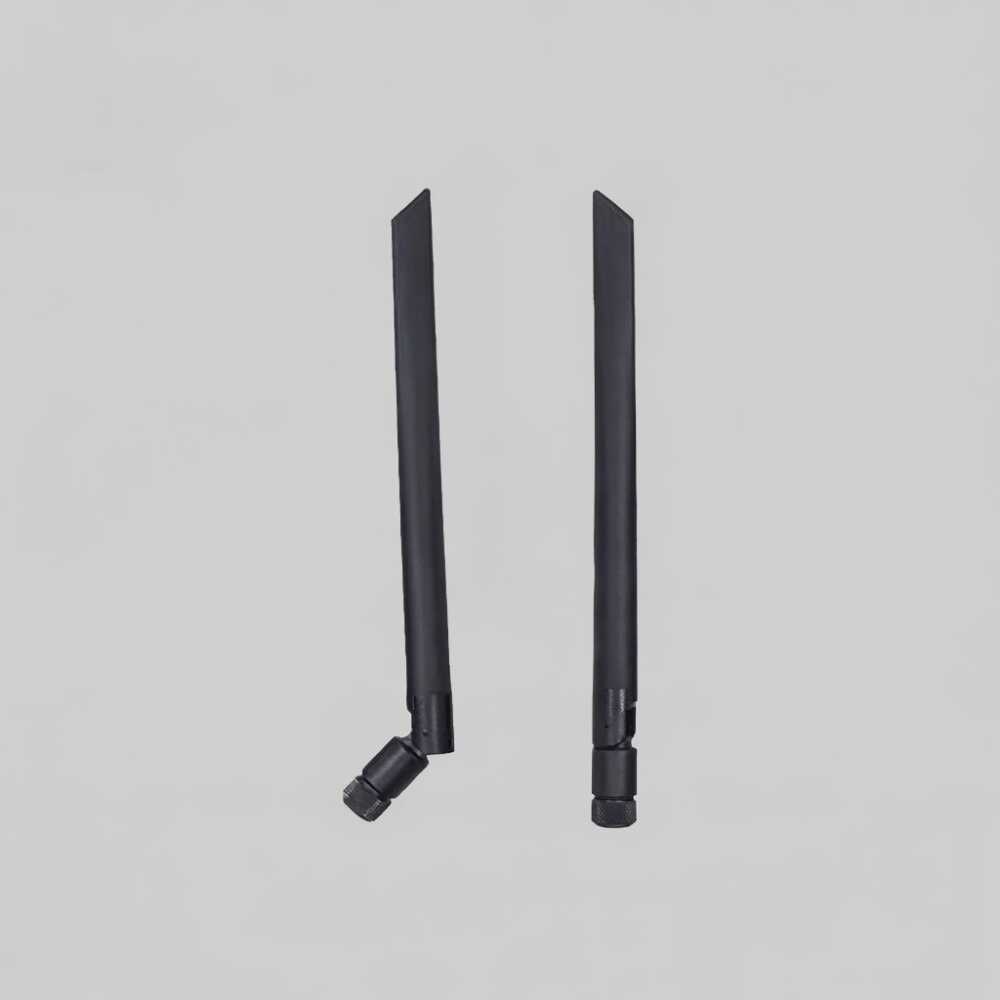

Antenna Home AH1G.107A 868/915MHz 5dBi SMA-J Antenna

Antenna Home AH1G.107A 868/915MHz 5dBi SMA-J Antenna

Antenna Home AH1G.107A is a high-gain plastic (rubber) antenna operating in the 868MHz and 915MHz ISM bands with an SMA-J connector. It is specifically designed for LoRa and LPWAN-based wireless communication systems.

Its vertical and omni-directional radiation pattern provides wide coverage and stable signal performance. With a low VSWR value, it ensures efficient and reliable signal transmission. The ABS outer housing and copper internal structure offer long-lasting durability even in harsh environmental conditions.

Antenna Home AH1G.107A Technical Specifications:

• Operating Frequency: 868 / 915 MHz

• Frequency Band: ISM 868 MHz / 915 MHz

• Gain: 5 dBi

• Impedance: 50 Ohm

• VSWR: ≤ 1.5

• Polarization: Vertical / Omni

• Connector Type: SMA-J

• Antenna Type: Rubber Plastic Antenna

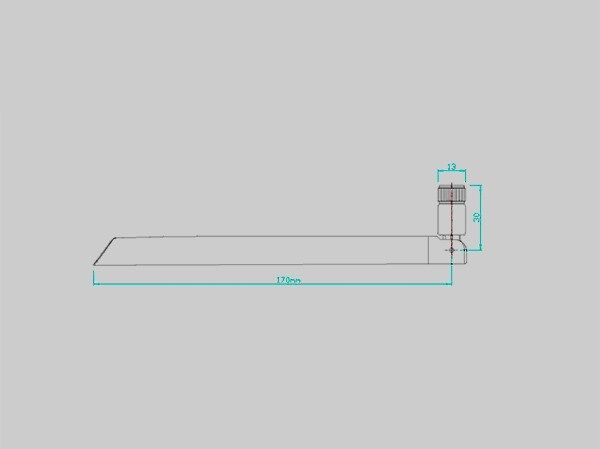

• Dimensions: Ø13 x 200 mm

• Weight: 11 g

• Operating Temperature: -40°C ~ +85°C
