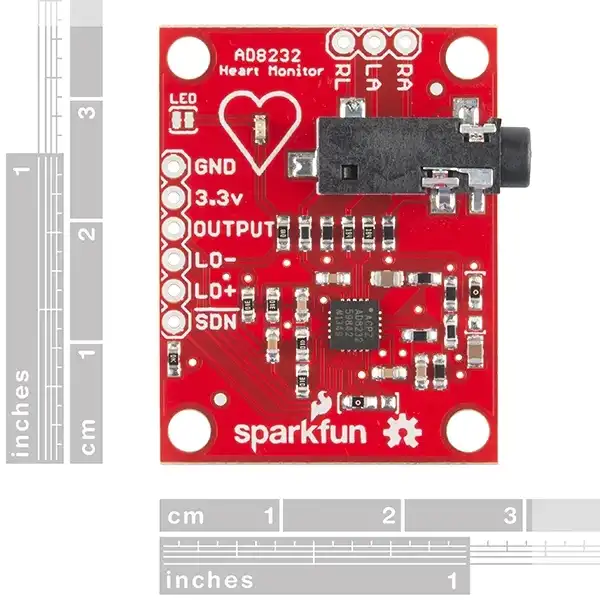

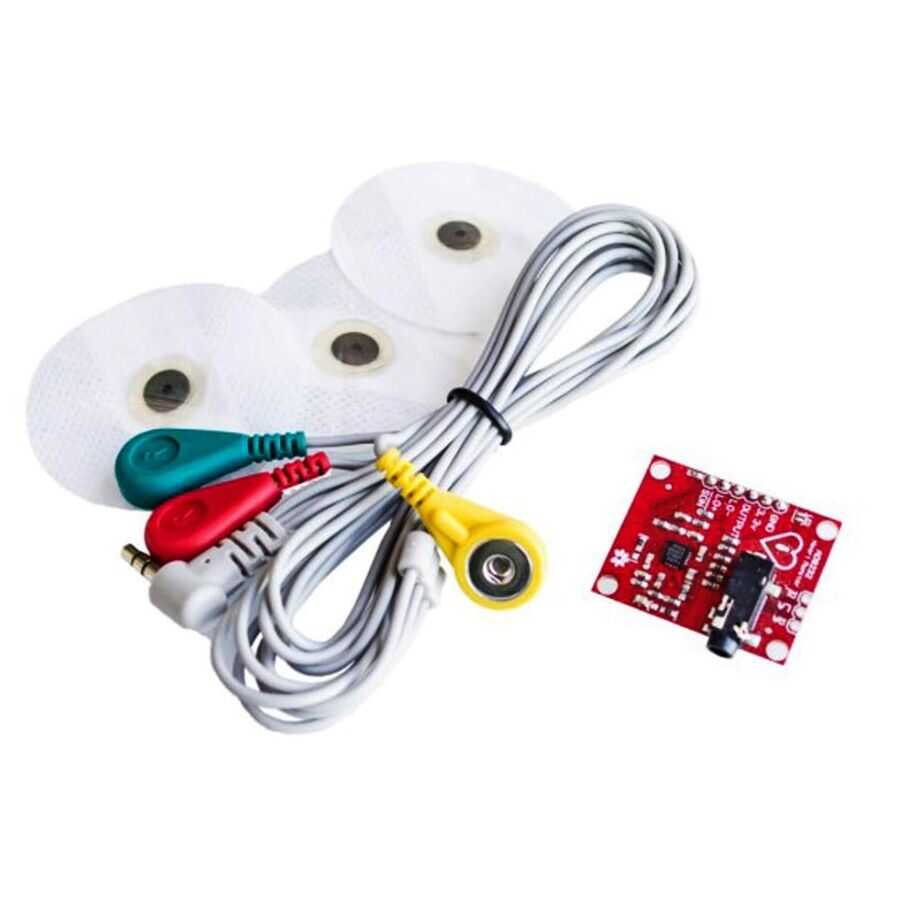

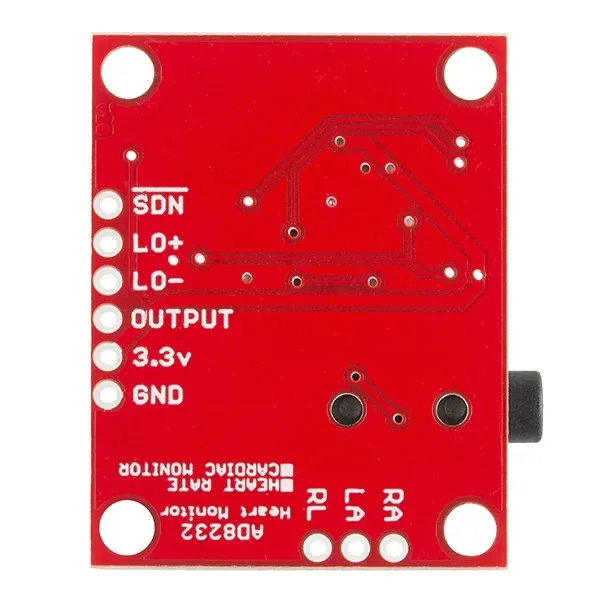

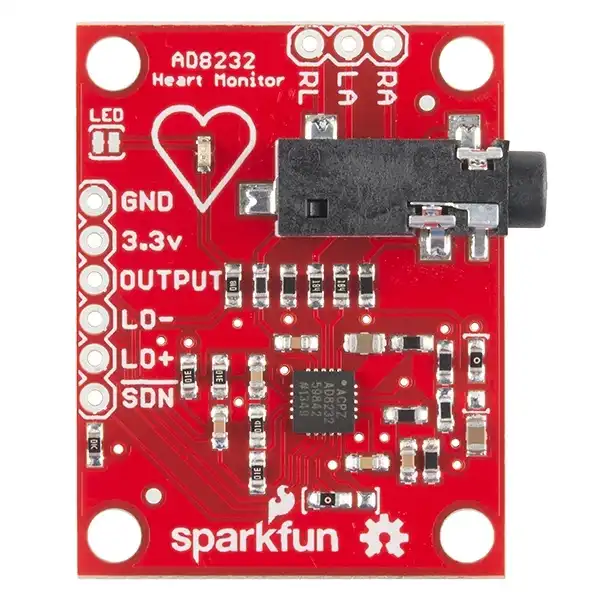

AD8232 EMG Heart Rate Pulse Graph Monitoring ECG Module Kit

AD8232 EMG Heart Rate Pulse Graph Monitoring ECG Kit

The AD8232 EMG Heart Rate Pulse Graph Monitoring ECG Kit is a compact and easy-to-use ECG/EMG sensor module designed to measure single-lead biopotential signals. It is specifically developed for monitoring heart rate and electrocardiogram (ECG) signals. Thanks to its easy integration with Arduino and similar microcontroller platforms, it is widely used in both educational and hobby projects.

The AD8232 integrated circuit filters and amplifies very low-amplitude biological signals obtained from the body to produce a readable analog output. Its filtering structure helps reduce motion-induced noise, enabling cleaner and more stable signal acquisition. It is an ideal solution for pulse monitoring, heart rhythm analysis, and biomedical signal processing applications.

AD8232 EMG Heart Rate Pulse Graph Monitoring ECG Kit Technical Specifications:

• Single-lead ECG/EMG measurement module based on the Analog Devices AD8232 integrated circuit

• Signal processing architecture optimized for heart rate and biopotential signal measurement

• Noise reduction with integrated high-pass and low-pass filters

• Adjustable gain and reference voltage support

• 3.3V operating voltage (5V tolerant output pins)

• Direct compatibility with Arduino ADC pins via analog signal output

• Electrode contact monitoring via lead-off detection pins

• Breadboard-compatible pin layout

• Suitable for education, biomedical signal analysis, and prototyping projects

Useful Links / Documents:

• AD8232 Hookup Guide
• AD8232 Datasheet
• AD8232 Schematic File
• Eagle PCB Files
• GitHub Source Codes
