74LS47 SOP-16 BCD to 7-Segment Common Anode LED Driver IC

74LS47 SOP-16 BCD to 7-Segment Common Anode LED Driver IC

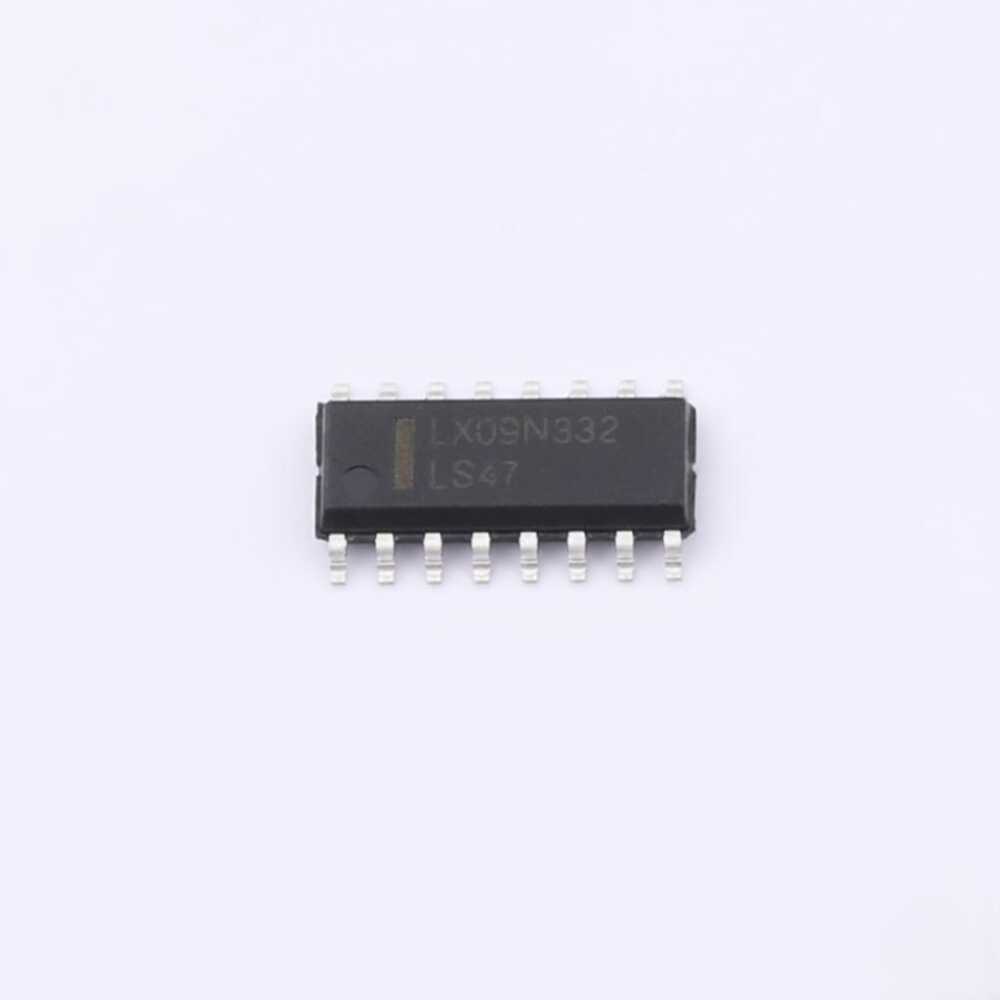

The 74LS47 is a TTL-based integrated circuit from the 74LS series, designed as a decoder/driver for converting BCD (Binary Coded Decimal) inputs into signals suitable for driving common anode 7-segment LED displays. It is widely used in digital counters, display modules, measuring instruments, and industrial control panels.

The IC converts a 4-bit BCD input into the correct segment signals to display digits from 0 to 9 on a 7-segment LED. Thanks to its SOP-16 SMD package, it is ideal for compact PCB designs, surface-mount applications, and mass production projects.

74LS47 Technical Specifications:

• TTL logic family (74LS series)

• BCD to 7-segment decoder/driver

• Compatible with common anode 7-segment LED displays

• Active-low segment outputs

• Supply voltage: 2V – 6V

• Typical supply voltage: 5V

• Operating temperature: -40°C ~ +125°C

• Input type: 4-bit BCD (A, B, C, D)

• Lamp Test (LT), Blanking (BI), and Ripple Blanking (RBI/RBO) functions

• Package type: SOP-16 (SMD)

• RoHS compliant

Useful Links / Documents:

• Datasheet
• EasyEDA Model

Similar Products:

• TTL & CMOS Series Integrated Circuits
