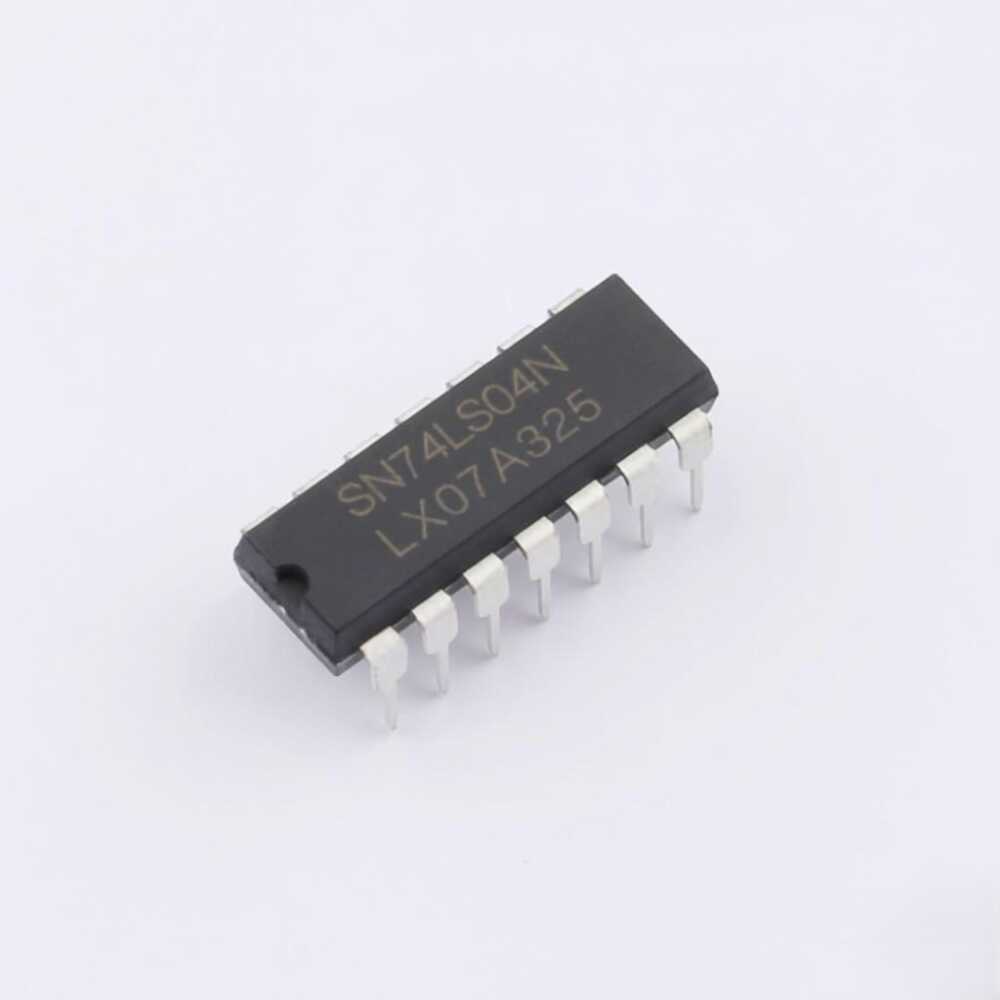

74LS04 DIP-14 6-Channel NOT Gate Integrated Circuit

74LS04 DIP-14 6-Channel NOT Gate Integrated Circuit

The 74LS04 is a logic integrated circuit from the TTL-based 74LS series, containing six independent NOT (inverter) gates. It is widely used in digital electronic circuits for signal inversion, logic level conversion, and basic logic gate applications.

With a typical propagation delay of 14ns, it delivers reliable performance in applications requiring fast switching. The DIP-14 package makes soldering and prototyping easy, making it suitable for educational, hobby, and development projects.

74LS04 Technical Specifications:

• TTL logic family (74LS series)

• 6-channel NOT gate (Hex Inverter)

• Supply voltage: 2V – 6V

• Typical propagation delay: 14ns @ 6V

• Input logic level (Low): 500mV – 1.8V

• Output logic level (Low): 100mV – 260mV

• Output current (High / Low): 5.2mA

• Quiescent current (Iq): 2µA

• Operating temperature: -40°C ~ +125°C

• Package type: DIP-14
