4 Port USB HUB HAT (Raspberry Pi için)

Ürün Kodu
:
18001
Marka / Menşei
:
WaveShare
Stok Adedi
:
9
Fiyat
:
54,67 TL + KDV
KDV Dahil Fiyat
:
64,51 TL
Aynı Gün Kargo
Saat 15:00’a kadar yapılan alımlarda aynı gün kargo imkanı
Alışveriş Listeme Ekle
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Yorum Ekle
Ürünle İlgili Öne Çıkan Kampanyalar

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Ürün Özellikleri
  • Ödeme Seçenekleri
  • Yorumlar (0)
  • Tavsiye Et
  • Resimler
  • Öneri Kutusu
  • This is a 4 port USB hub for Raspberry Pi, provides more USB capability to your Pi, what's more, it features USB to UART converter for easy serial communication.

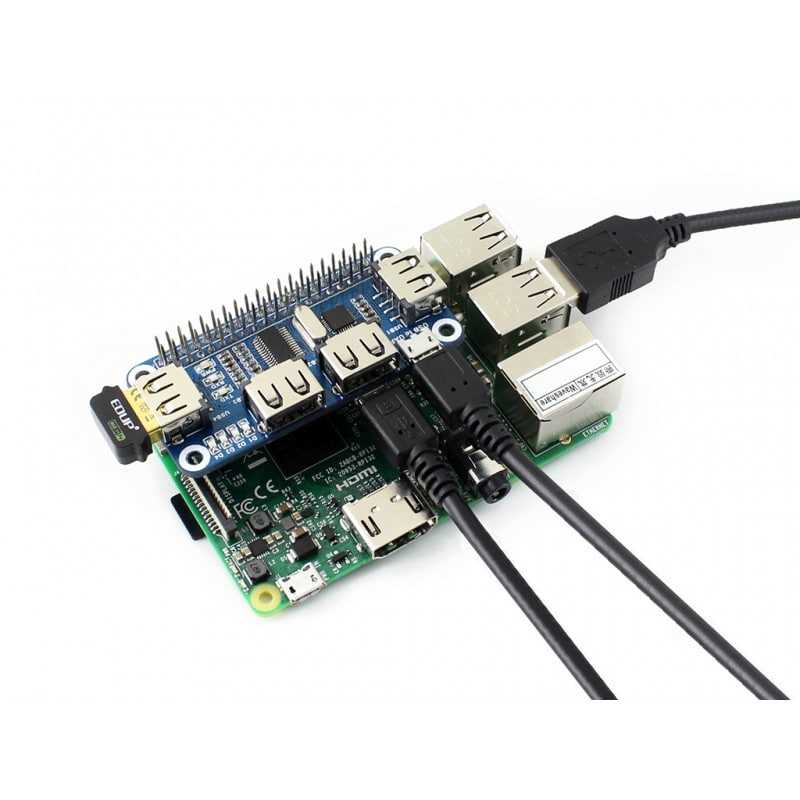

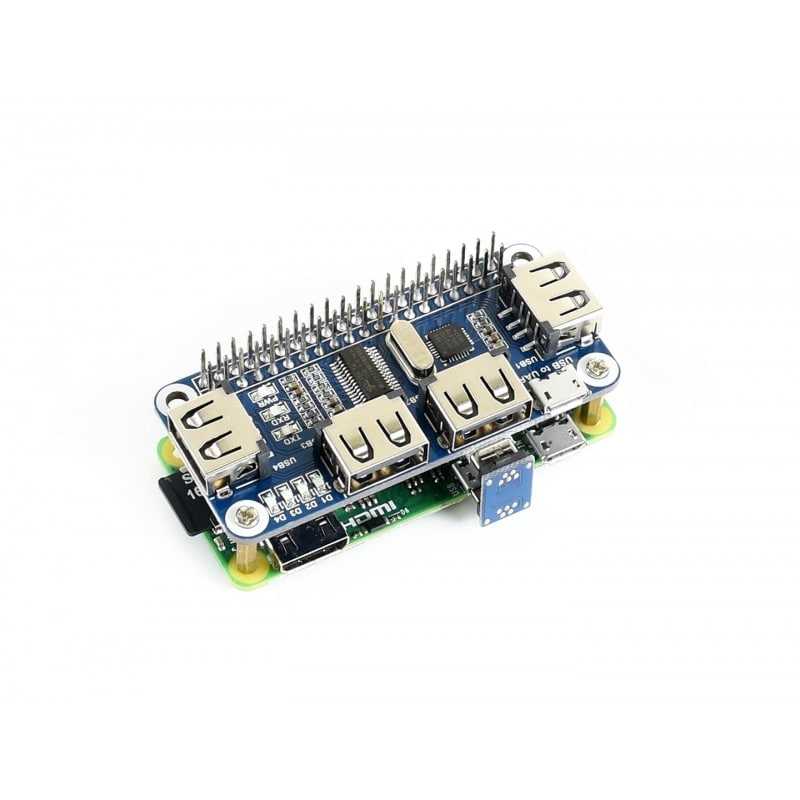

    It can work with various versions of the Pi, and the size of the board is designed to perfectly fit the Zero / Zero W / Zero WH.

    USB HUB HAT Features

    • 4 USB Ports, compatible with USB2.0/1.1
    • Onboard USB to UART, with enable / disable switch, convenient for Raspberry Pi serial debugging and avoiding conflict
    • Onboard multi indicators, for monitoring the status of power, USB to UART, and each USB port

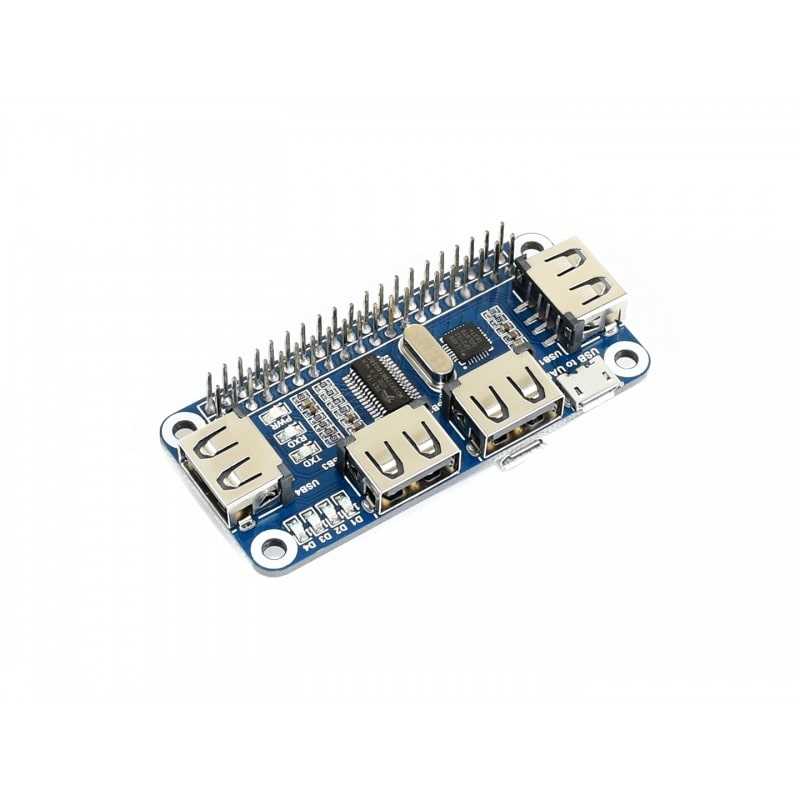

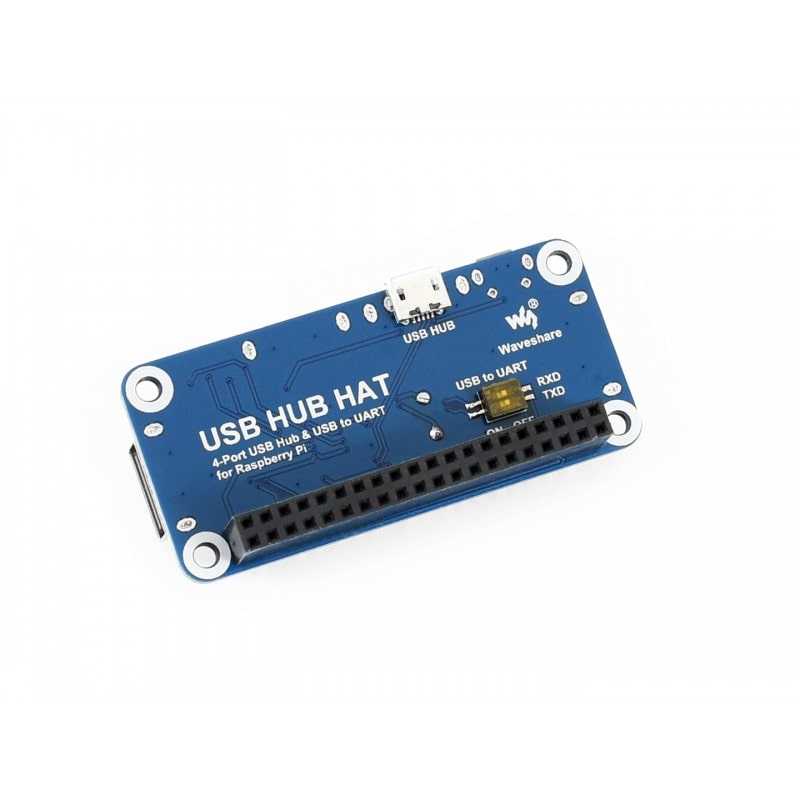

    What's on the USB HUB HAT

    Raspberry Pi Expansion Board on board resource

    1. Raspberry Pi GPIO interface: for connecting Raspberry Pi
    2. USB to UART: for controlling the Raspberry Pi via serial terminal
    3. USB HUB interface (bottom):for connecting the HUB to the Raspberry Pi USB port
    4. USB extended ports: USB1~USB4
    5. USB port indicators: dedicated indicator for each USB port, D1~D4 for USB1~USB4 respectively
    6. Power indicator
    7. USB to UART indicator
    8. FE1.1S: USB HUB chip
    9. 12MHz crystal
    10. CP2102: USB to UART converter


    Specifications

    • Operating voltage: 5V
    • Dimension: 65mm × 30mm
    • Mounting hole size: 3.0mm


    Dimensions

    USB HUB HAT dimensions


    Package Content

    1. USB HUB HAT x1
    2. Micro USB connector x1
    3. Micro USB cable x1
    4. RPi screws pack (2pcs) x1

    Weight: 0.073 kg

    Development Resources

    Wiki : www.waveshare.com/wiki/USB_HUB_HAT
