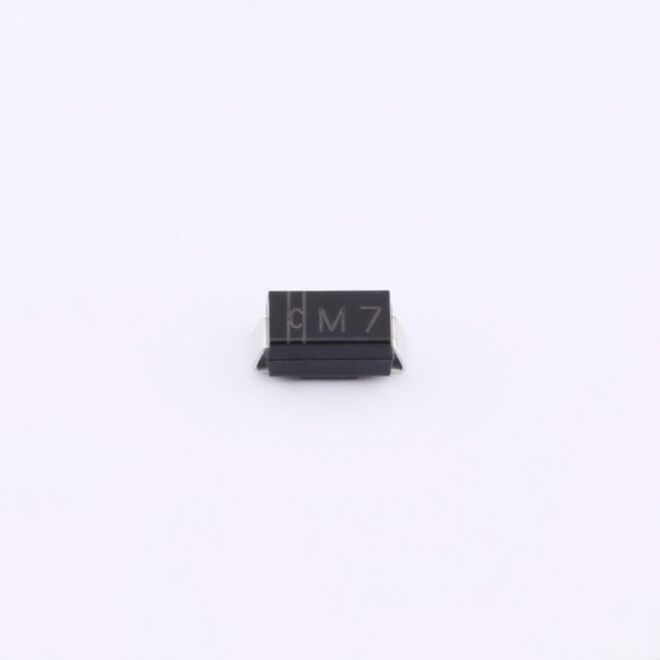

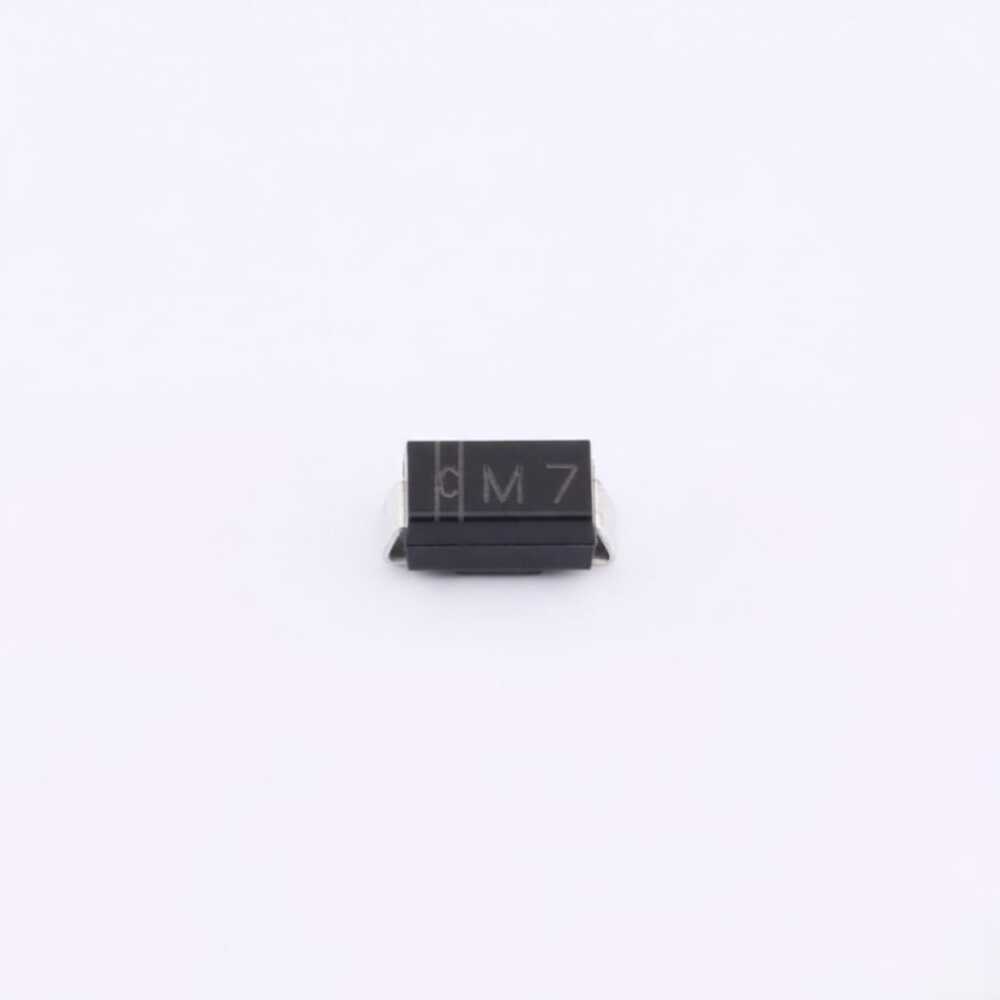

1N4007 M7 SMA 1A 1000V Standard Rectifier Diode

1N4007 M7 SMA 1A 1000V Standard Rectifier Diode

The 1N4007 M7 is a standard rectifier diode designed for general-purpose rectification applications. With a maximum repetitive reverse voltage of 1000V and an average forward current rating of 1A, it is commonly used in power supplies, adapters, battery chargers, and AC-to-DC conversion circuits.

Housed in an SMA surface-mount package, this diode is suitable for compact PCB designs and automated assembly. Its low forward voltage drop, high surge current capability, and wide operating temperature range provide reliable performance in both consumer and industrial electronic applications.

1N4007 M7 Technical Specifications:

• Standard rectifier diode

• Maximum DC reverse voltage (VR): 1000V

• Average rectified forward current (IF): 1A

• Forward voltage (VF): 1V @ 1A

• Reverse leakage current: 5µA @ 1000V

• High surge current capability

• Operating junction temperature range: -55°C ~ +150°C

• Package type: SMA (SMD)

• Surface-mount compatible
