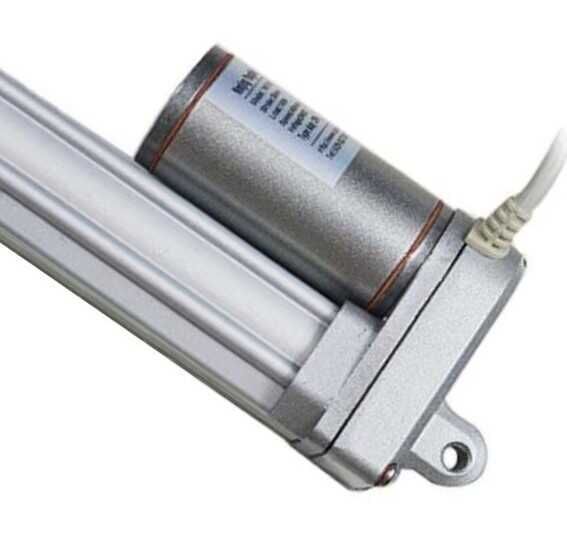

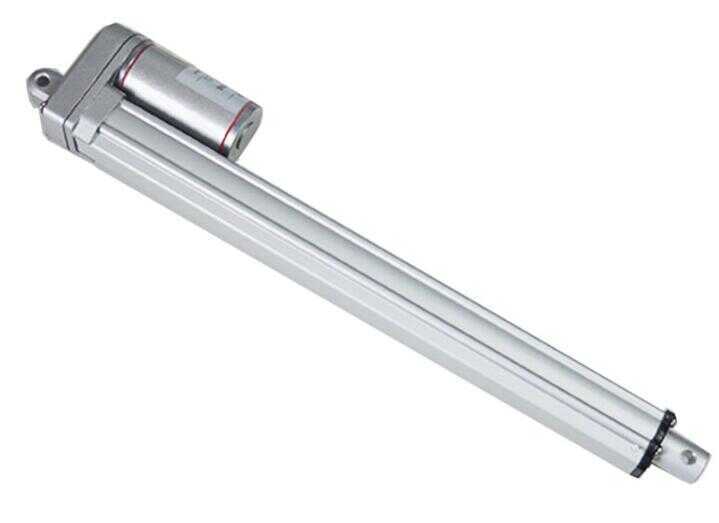

12V DC 500mm Linear Actuator – 7mm/s 1500N

12V DC 500mm Linear Actuator – 7mm/s 1500N

An actuator is a mechanical component designed by adding various mechanical modifications to a motor that moves in a rotational motion, thereby converting rotational motion into linear motion. This linear actuator operates very quietly and can be used in many industrial and robotic applications such as lifting heavy loads in electrically controlled motion systems, automatic opening and closing lids, and drawer mechanisms. Thanks to the limit switch structure located at both ends, the motor automatically stops when it reaches the end of its travel, ensuring safe operation.

12V DC 500mm Linear Actuator Technical Specifications:

• Operating Voltage: 12V DC

• Load Capacity (Force): 1500N

• Speed: 7mm/s

• Stroke (Travel Distance): 500mm

• Limit Switch: Automatically stops when the motor is fully extended or retracted.

• Body cross-section: 8 × 4 cm

• Total length when retracted: 65 cm

• Total length when fully extended: 115 cm
