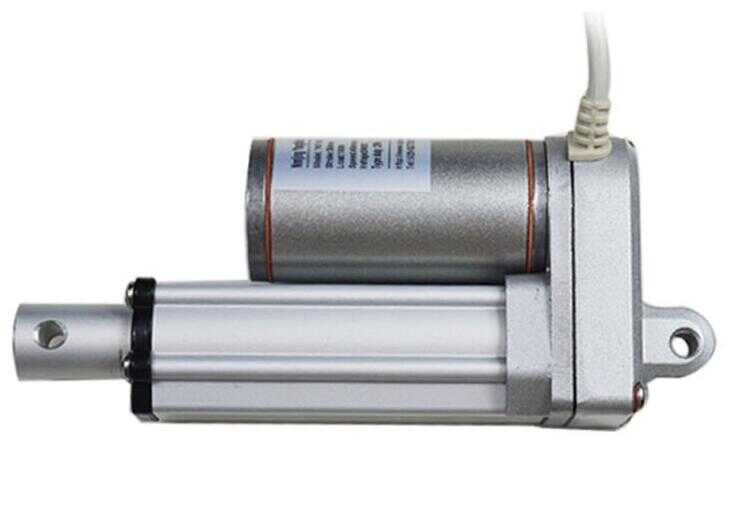

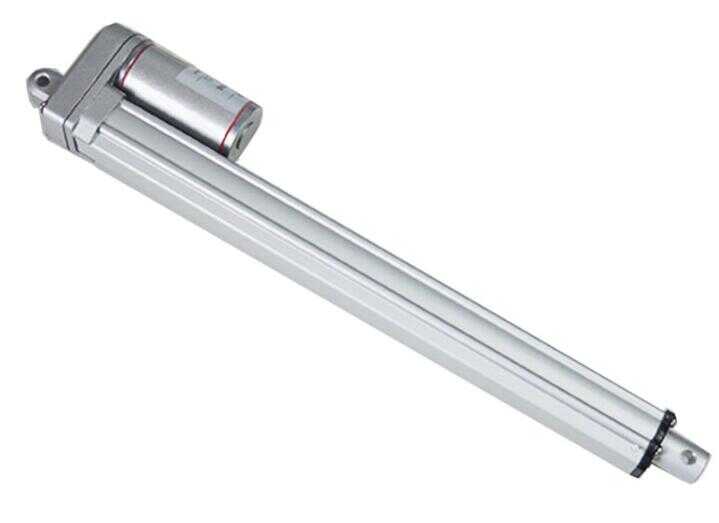

12V DC 100mm Linear Actuator - 7mm/s 1500N

12V DC 100mm Linear Actuator - 7mm/s 1500N

The actuator is made by adding various mechanical modifications to a motor that moves in a circular direction, and these are the mechanical components that convert the circular motion to linear motion by means of these modifications. You can use these actuators (linear motor), which work very quietly, in electrically controlled moving systems, lifting heavy loads, in automatic opening and closing drawer and door systems, in many areas such as industrial and robotics. There are limit switches at the ends of this actuator. In this way, the motor realizes that it has reached the limit and does not start even if the voltage is supplied.

12V DC 100mm Linear Actuator Technical Specifications:

• Operating Voltage: 12V/DC

• Load Capacity (Torque): 1500N



• Total Closed Length: 23cm

• Stroke: 10cm

• Total Open Length: 33cm

• Limit Switch: (The motor will automatically stop when fully extended and retracted.)
