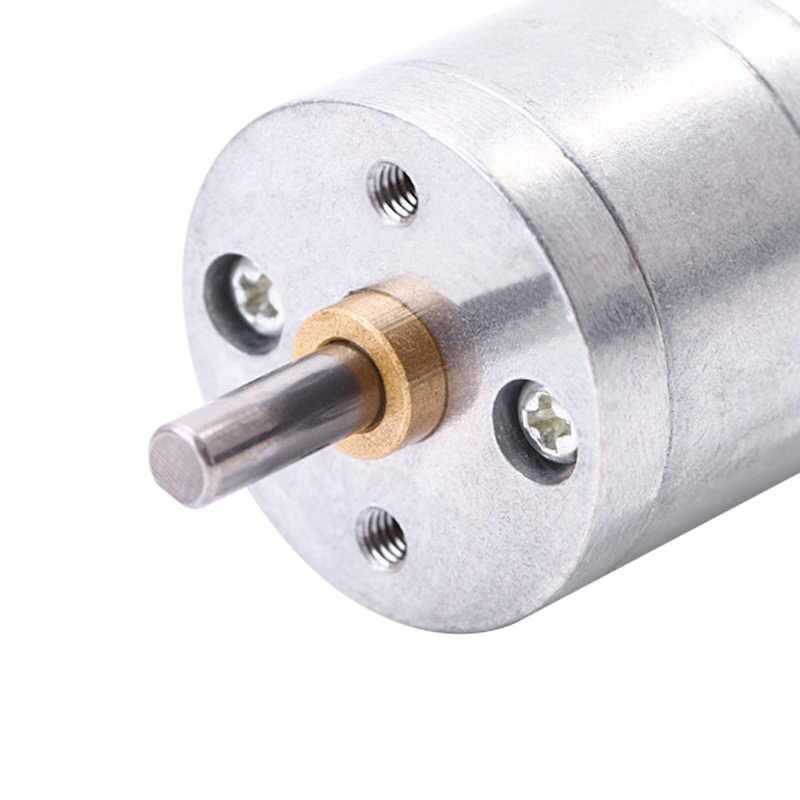

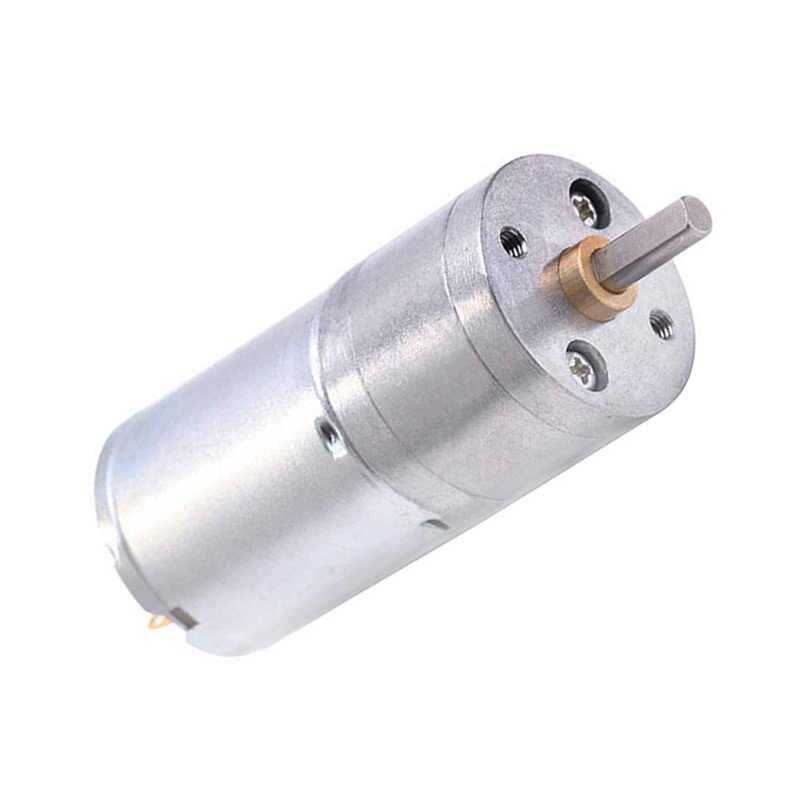

12V 25mm 500 RPM Geared DC Motor

12V 25mm 500 RPM Geared DC Motor

The 12V 25mm 500 RPM Geared DC Motor is designed for high-speed robotic projects, mobile robot applications, automation systems, and hobby projects. Thanks to its metal gearbox structure, it provides stable operation and long service life. With its compact 25mm body diameter, it can be easily integrated into tight spaces.

It features a two-wire connection and allows easy direction control. Speed can be adjusted using PWM (Pulse Width Modulation), enabling precise speed control in your projects. To explore different RPM options, click here!

Specifications:

• Operating Voltage: 12V DC
• Speed: 500 RPM (No Load)
• No Load Current: ~150-250 mA
• Stall Current: ~1.5 - 2.5A
• Estimated Stall Torque: 2 - 4 kg/cm
• Motor Diameter: 25mm
• Shaft: 4mm D Shaft
• Shaft Length: 10mm
• Connection Type: 2-Wire
• Supports PWM speed control
• Durable metal gearbox construction



Package Contents:

• 12V 25mm 500 RPM Geared DC Motor
