12V 10A Single Contact Relay SRD-12VDC-SL-C

12V 10A Single Contact Relay SRD-12VDC-SL-C

SRD-12VDC-SL-C is an electromechanical relay with a 12V DC coil voltage, commonly used in electronic circuits. Thanks to its high reliability and compact design, it is preferred in automation projects, microcontroller-based systems, and power management applications.

This relay allows the control of high-current devices using low-current signals. It can be easily used with development boards such as Arduino and Raspberry Pi, and has a wide range of applications from home automation systems to industrial projects.

12V 10A Single Contact Relay SRD-12VDC-SL-C Technical Specifications:

• Coil Voltage: 12V DC

• Maximum Contact Current: 10A

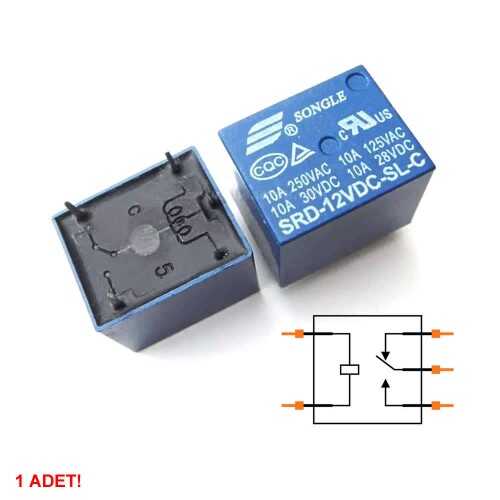

• Contact Structure: 1 Channel (SPDT - Single Pole Double Throw)

• Maximum Switching Voltage: 250V AC / 30V DC

• Compact size for easy use in breadboard and PCB projects

• Compatible with Arduino, Raspberry Pi, and other microcontrollers

Useful Documents:

• Datasheet
