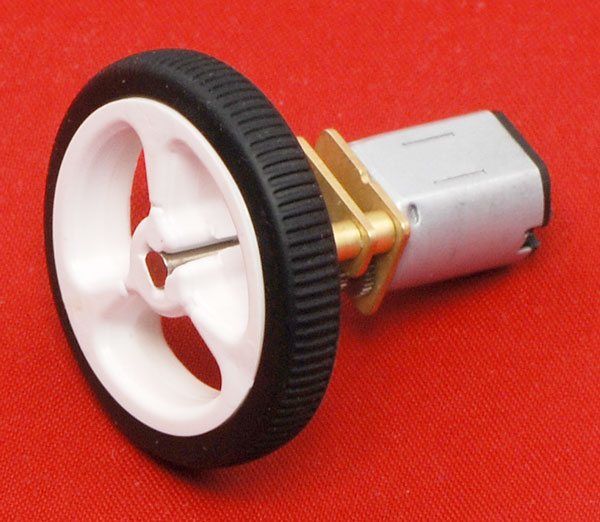

10:1 6V 3000 RPM Carbon Brushed Micro DC Gearmotor - PL-3061

Product Code
:
14803
Brand / Origin
:
Pololu
Quantity
:
4
Without Vat
:
109.64 TL
Quantity:

-

+

Aynı Gün Kargo
Saat 15:00’e kadar yapılan alımlarda aynı gün kargo imkanı
Add to Favorites
Bu ürünü listenize ekleyerek daha sonra inceleyebilirsiniz.
Add Comment
Share:
Featured Campaigns Related the Product

{{CMP.TITLE}}

{{CMP.DESCRIPTION}}

  • Features
  • Payment Options
  • Comments (0)
  • Recommend
  • Images
  • Suggestion Box

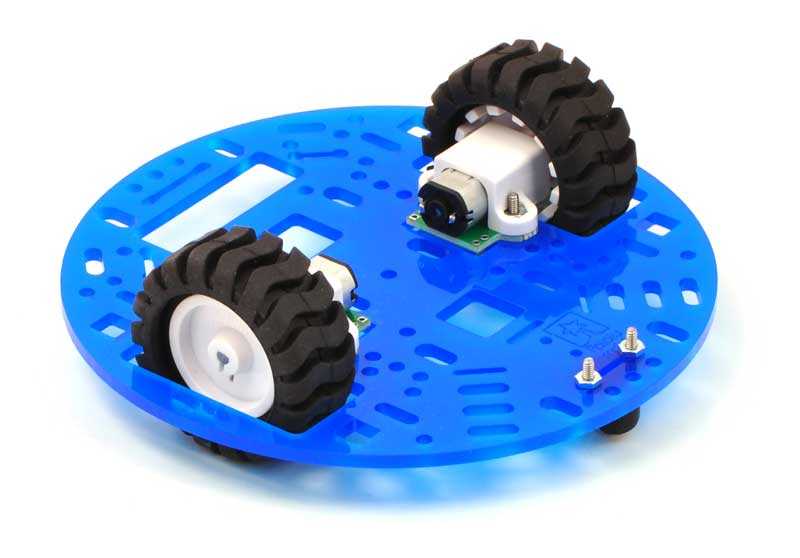

  • This high perfomanced micro DC gearmotor has 3000 RPM speed at DC 6V. Motor has carbon brushes, so motor has high performance and long life. This motor can be used at various projects like mini sumo, obstacle avoiding and line follower robots.

    Technical Features:

    • Operation Voltage: 6V DC
    • Speed (no load): 3000 RPM
    • Reduction rate: 10:1
    • No load current: 120 mA
    • Stalll current: 1.6A
    • Stall torque: 0.3 kg-cm
    • Motor dimensions: 10 mm x 12 mm x 26 mm (YxGxU)
    • Shaft type: 9mm length 3mm D type shaft
    • Weight: 9.5 gr

    Features
    Encoder
    :
    w/o Encoder
    Shaft Diameter
    :
    3mm
    Gearbox Type
    :
    Metal Gearbox
    Speed (RPM)
    :
    1001-6000 Rpm
    Voltage
    :
    6V
    Motor Type
    :
    Micro
