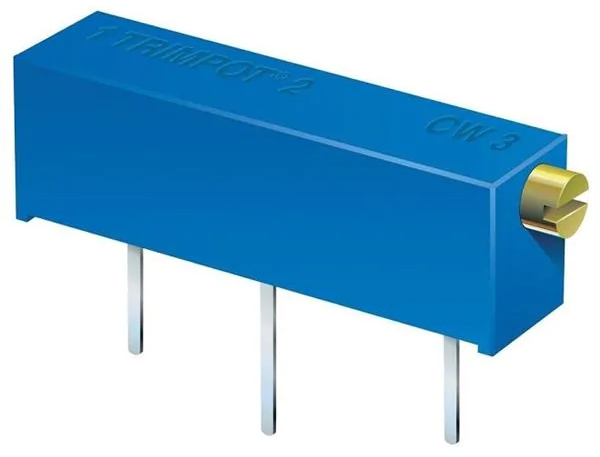

100K Multi-turn Trimpot (Horizontal) - 3006P-1-104

100K Multi-turn Trimpot (Horizontal) - 3006P-1-104

Trimpots, voltage divider and contrast adjustment circuits are used in circuits which need to be adjusted precisely and resistance adjustment is not required.

Technical Specifications:

• Resistance Value:10K
• Trimpot Type: Multi Turn Horizontal
• Number of Turns: 15
• Resistance Change: Linear
• Total Resistance Tolerance:  10％
• Rated Power: 0.75W
• Max Operating Voltage: 500V DC
• Operating Temperature: -55C to +125C
• Stop torque:  >0,36(max)
• Dimensions: 9.53mm x 4.83mm x 10.03mm
