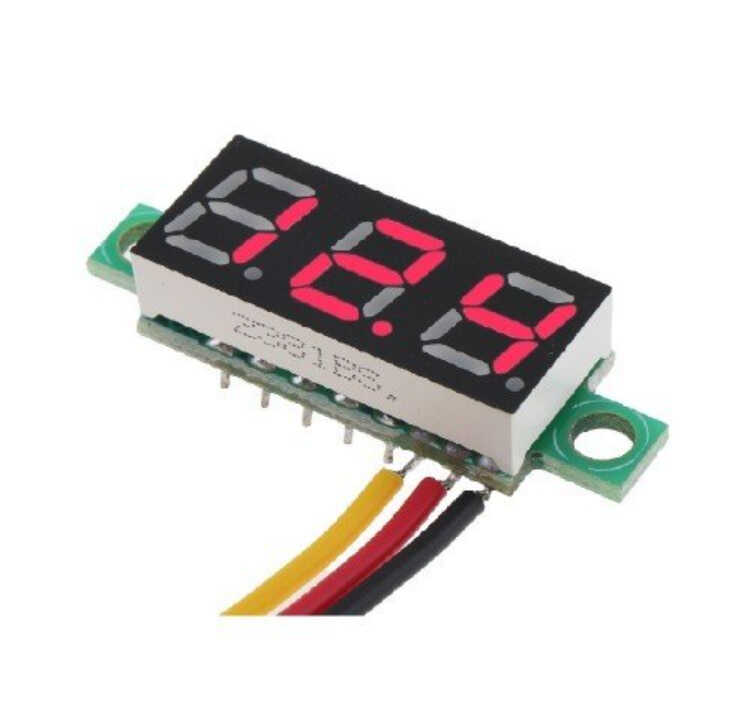

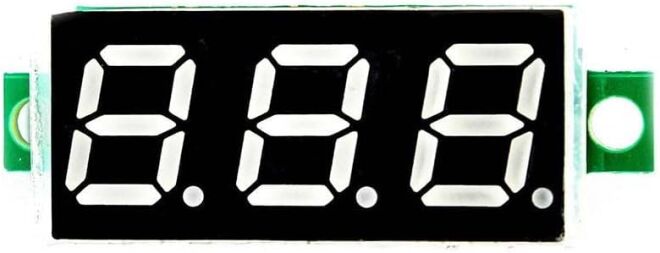

0.28 Inch DC 0-100V Mini Digital Voltmeter 3-Wire DC - Red
With this mini digital voltmeter operating between DC 4.5-28V (maximum 30V), you can instantly measure and display the output voltage of your electronic circuits or various devices on a digital screen. Thanks to its compact design, it can be easily used in your projects and conveniently mounted in panel-type applications.
The product features a three-wire connection structure. Provided that the source you want to measure does not exceed 30V, you can directly connect the anode and cathode terminals of the voltmeter for measurement. Additionally, by powering the device with a separate power supply, you can measure voltage values in the 0-100V range. In this configuration, connect the negative terminal of the voltage to be measured to the voltmeter’s negative (cathode) wire, and connect the positive terminal to the measurement wire to perform wide-range voltage measurements.
0.28 Inch DC 0-100V Mini Digital Voltmeter 3-Wire DC - Red Technical Specifications:
Operating Voltage: DC 4.5V – 28V (Maximum 30V)
Measurement Range: DC 0 – 100V

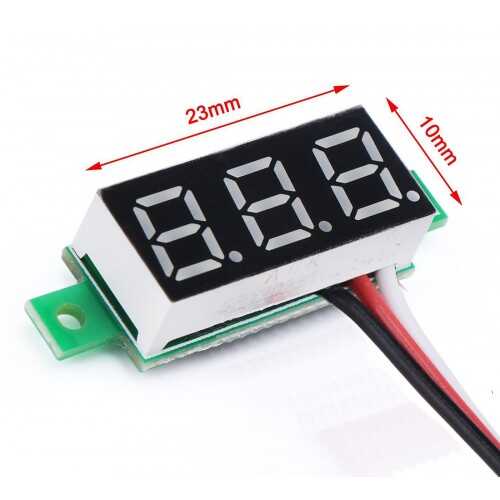

Display Size: 0.28 Inch
Display Color: Red LED
Connection Type: 3-Wire (Power + Measurement)
Compact design suitable for panel mounting
