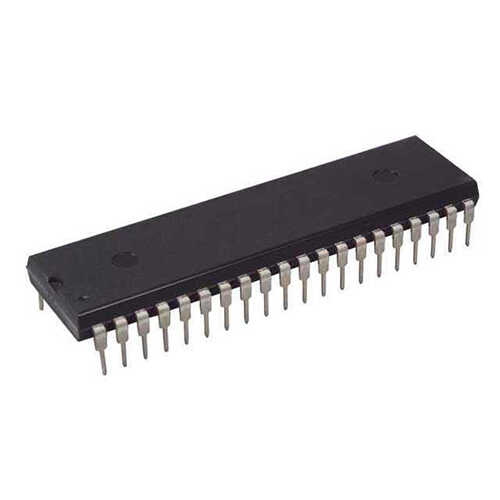

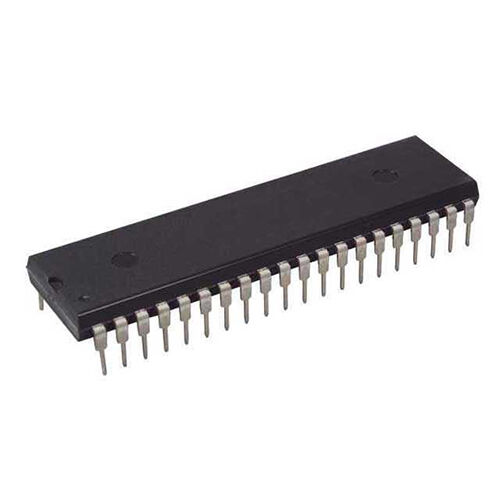

PIC18F4620-I/P PDIP-40 8-Bit PIC Microcontroller

PIC18F4620-I/P PDIP-40 8-Bit PIC Microcontroller

The PIC18F4620-I/P is a high-performance 8-bit microcontroller from Microchip’s PIC18 series, offering extensive peripheral support and enhanced Flash memory architecture. With a maximum operating frequency of 40MHz, it is widely used in industrial control, automation systems, and embedded electronics projects.

Featuring 64KB of program memory, 1KB of EEPROM, and an integrated 10-bit ADC module, it enables the development of complex applications with ease. Its 36 I/O pins allow direct connection to a wide range of external components. The PDIP-40 package makes it especially suitable for education, prototyping, and breadboard-based projects.

PIC18F4620-I/P Technical Specifications:

• Microcontroller family: PIC18 Series

• Core architecture: 8-Bit PIC

• Program memory: 64KB Flash

• EEPROM capacity: 1KB

• ADC resolution: 10-Bit

• Maximum CPU frequency: 40MHz

• Supply voltage: 4.2V – 5.5V

• Number of I/O pins: 36

• Oscillator type: Internal

• Package type: PDIP-40 (Through Hole)
