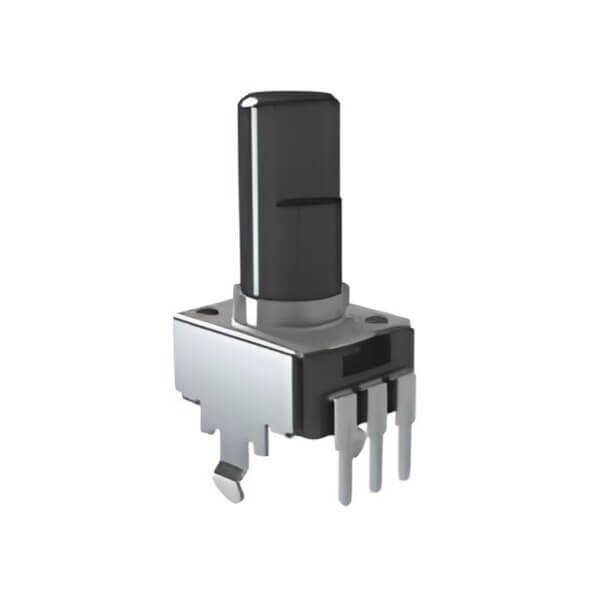

L-KLS4-R0902N-B100K-L25-F-K 100K Vertical Potentiometer

L-KLS4-R0902N-B100K-L25-F-K 100K Vertical Potentiometer

L-KLS4-R0902N-B100K-L25-F-K is a vertically mounted potentiometer with a resistance value of 100KΩ. It is commonly used in audio control, adjustment circuits, and applications requiring precise resistance tuning. Its compact design allows it to occupy minimal space on the PCB, offering easy installation.

L-KLS4-R0902N-B100K-L25-F-K 100K Vertical Potentiometer Technical Specifications:

• Manufacturer: KLS ELECTRONIC

• Series: KLS4

• Resistance Value: 100K Ohms

• Power Rating: 0.05W

• Number of Turns: 1

• Number of Gangs: 1

• Termination Style: PCB Pins

• Adjustment Type: Top Adjustment

• Actuator Material: Plastic

• Actuator Type: Flatted

• Actuator Length: 25.00mm

• Actuator Diameter: 6.00mm

• Built-in Switch: None

• Tolerance: ±20%

• Rotation Angle: 280°

• RoHS: RoHS Compliant
