Flashforge Guider 3 Ultra 3D Printer

Flashforge Guider 3 Ultra 3D Printer

CoreXY Structure:

The CoreXY structure reduces errors caused by vibrations or mechanical shifts. The independently moving X and Y axes minimize slack and inaccuracies, ensuring stability during printing.

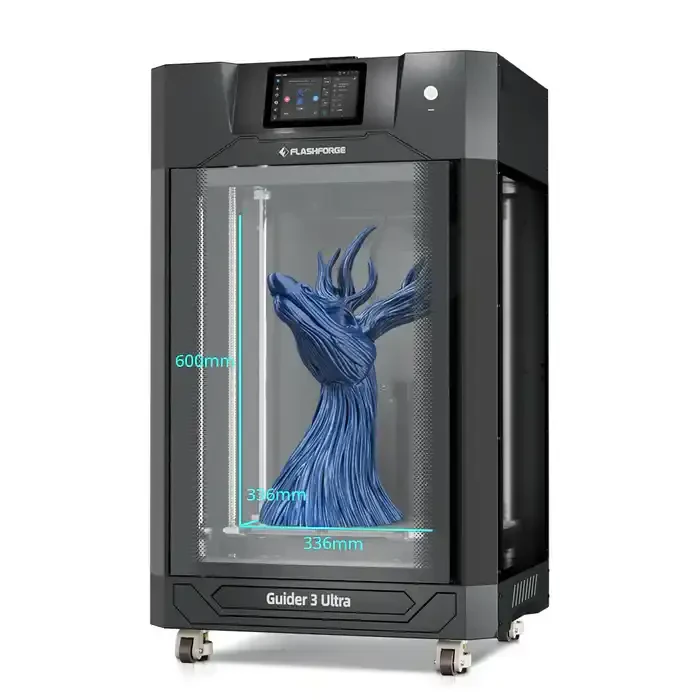

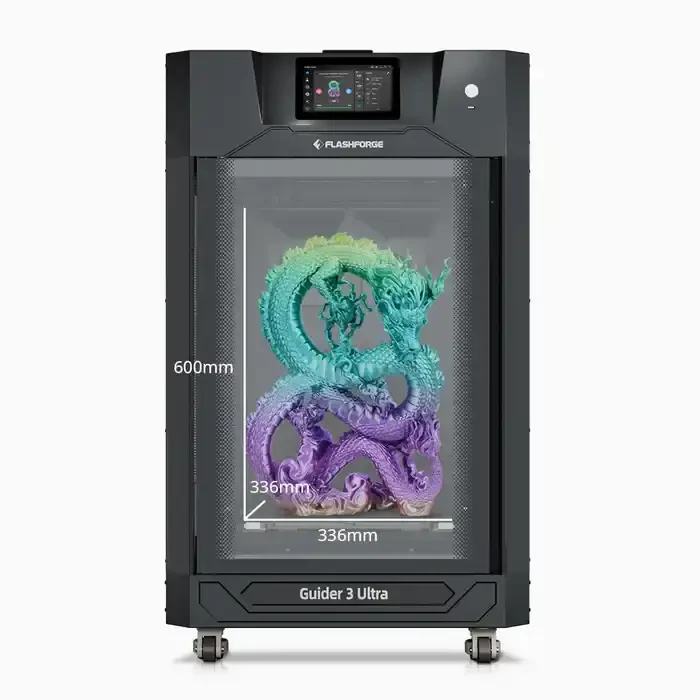

Large Size, Wide Printing Limits:

With a maximum print height of 600 mm, this model provides the space and precision required for large-scale projects such as engineering components, artistic sculptures, or architectural models, meeting all your large print needs.

Raft Support:

Raft support combines the advantages of self-supporting and breakaway supports, saving support printing time and allowing for easy removal of supports.

Seamless Printing Experience:

Power losses, such as power outages, do not cause issues with this model. Failed prints are prevented, and the desired print is achieved. Features such as power-off recovery, filament end warning, automatic filament change, and auto shutdown ensure a seamless printing experience, preventing material and time loss, improving safety, and providing energy savings.

Filament End Reminder:

The filament end is automatically detected, and printing is paused. Once new filament is loaded, printing resumes from where it left off.

HEPA 13 Air Filtration System:

The HEPA 13 air filtration system effectively filters harmful particles from the air, ensuring clean air. This provides a healthier environment for printing.

Unique Speed and Performance:

The Flashforge Guider 3 Ultra delivers fast and high-quality 3D printing with a 500mm/s print speed and 20,000mm²/s acceleration, significantly reducing print times while maintaining exceptional precision. The vibration suppression system prevents printing errors. The new cooling fan improves model cooling, reducing warping and strengthening overhangs. With a 32mm³/s maximum extruder flow rate, stable extrusion is ensured.

Flashforge Guider 3 Ultra Technical Specifications:

• Extruder Quantity: 2

• Printing Precision: ±0.15 mm or ±0.002mm/mm (The larger value prevails)

• Position Precision: X/Y Axis: 0.011 mm; Z Axis: 0.0025 mm

• Build Size: 330x330x600mm (same for single and dual extruders)

• Nozzle Diameter: 0.4mm (Default); 0.6/0.8mm (Optional)

• Printing Speed: 10-500mm/s

• Max Acceleration: 20000mm/s²

• Max Travel Speed: 500mm/s

• Max Extruder Temperature: 350℃

• Filament Type: PLA / ABS / HIPS / ASA / PETG / CoPA / PLA-CF / PETG-CF / PAHT-CF / PAHT-GF / PET-CF / PET-GF / PA12-CF / PA-CF / PA-GF / NexPA-CF25

• Power Supply: AC100-240V, 50/60Hz, 850W MAX

• Device Size: 635 x 550 x 1070 mm

• Packaging Size: 775(L) x 690(W) x 1235(H)mm

• Gross Weight: 86kg

• Net Weight: 70kg

• Slicing Software: Orca-Flashforge / FlashPrint 5

• Input/Output File Types: Input: 3MF/ STL/ OBJ/ FPP/ BMP/ PNG/ JPG/ JPEG; Output: GX/ G/ Gcode

• Printing Connection: USB/ Ethernet/ Wi-Fi

• Working Temperature: 15-30℃

• Compatible Operating System: Windows 7/8/10/11; Mac OS: Supports version 10.9 or later

• Touch LCD Screen: 7 Inches

• Magnetic Printing Bed: Flexible Steel Plate Platform
