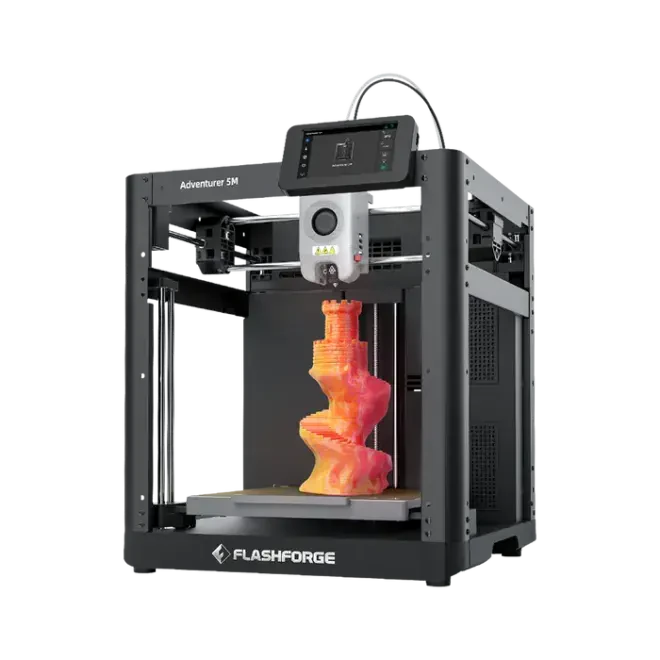

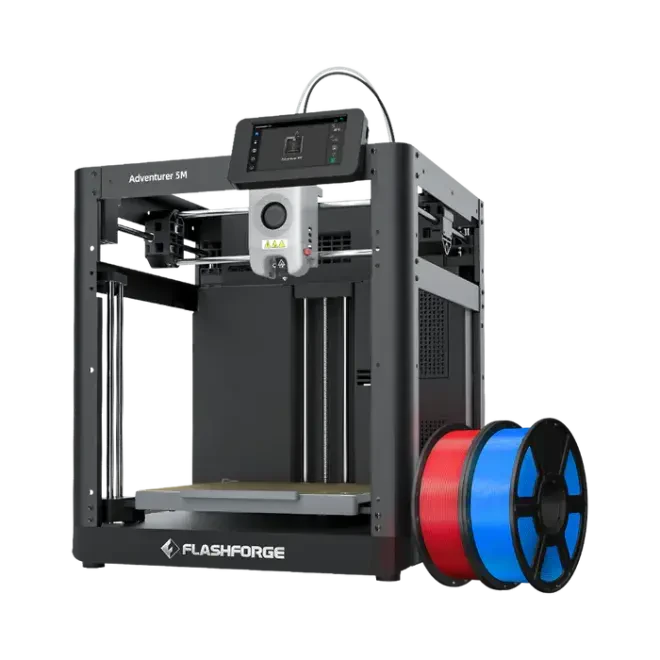

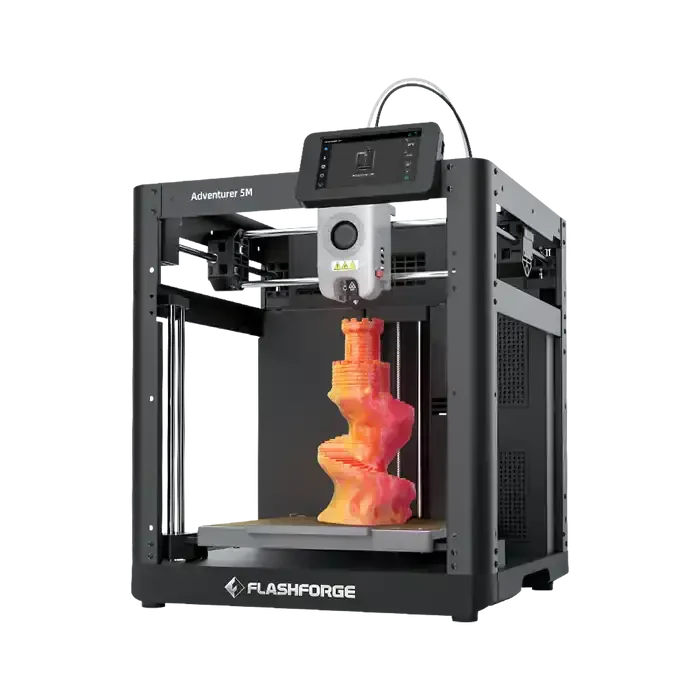

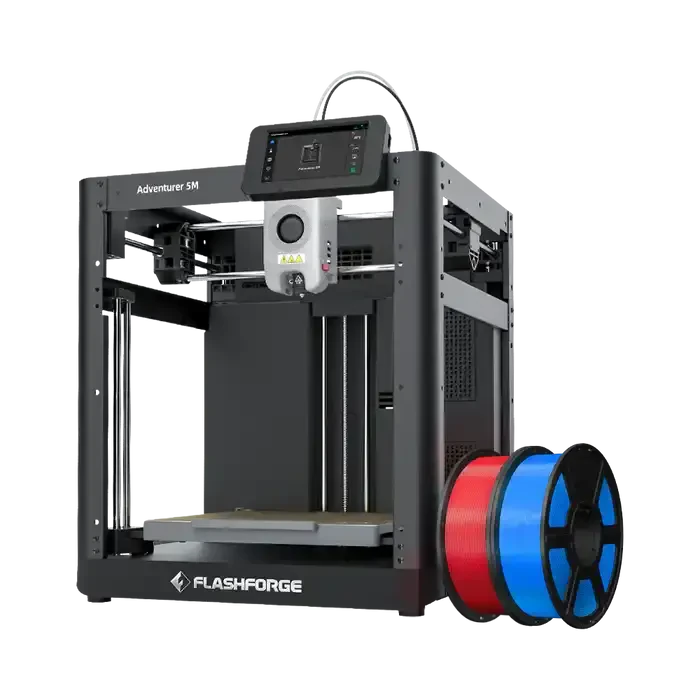

Flashforge AD 5M 3D Printer

Flashforge AD 5M 3D Printer

Fast and Reliable 3D Printing:

With its CoXY all-metal structure, AD5M provides a maximum printing speed of 600 mm/s and a maximum acceleration of 20,000 mm/s².

Vibration Compensation:

AD5M ensures smoother and more precise prints with its vibration compensation technology, improving both print quality and detail.

Better Flow and Faster Cooling:

AD5M’s fast-heating extruder allows precise control over the filament, ensuring smooth and flawless prints. The dual air vents provide rapid cooling, maintaining high stability and accuracy.

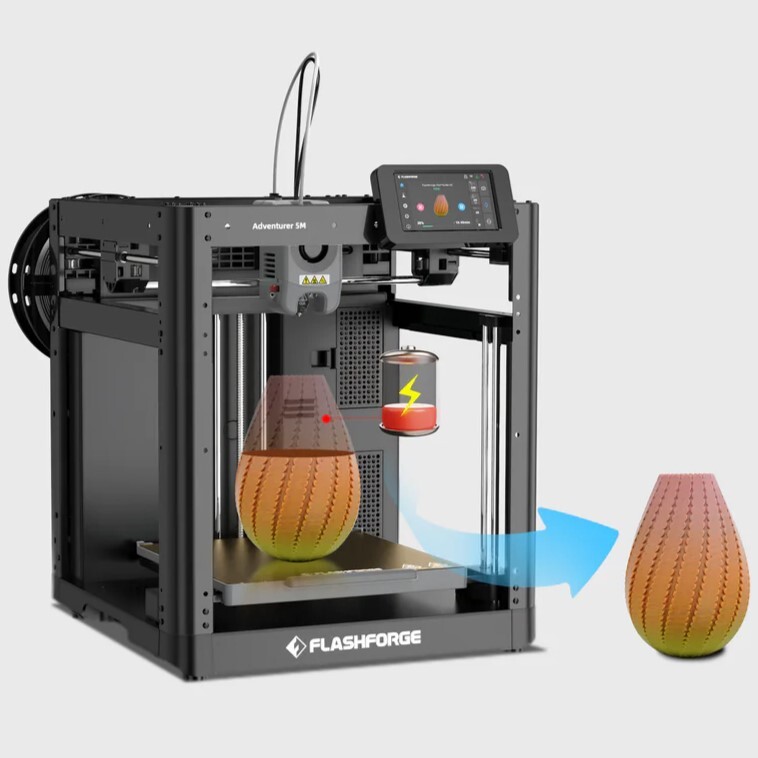

More Prints, Less Worry:

In case of a power outage, AD5M’s power-loss recovery feature ensures your print resumes from where it left off, eliminating time loss and progress loss.

Direct-Drive Nozul:

The AD5M direct-drive nozzle reaches 200°C in just 35 seconds, ensuring a quick start and faster printing. With a 280°C high-melting nozzle, it provides fast extrusion and smooth filament flow, making it ideal for high-speed prints and advanced materials.

Quickly Change Nozzles:

AD5M nozzles can be changed in just 3 seconds without any tools, and it supports multiple printing modes for a seamless experience.

Flashforge AD 5M Technical Specifications:

• Build size: 220 × 220 × 220 mm

• Packaging size: 440 × 440 × 490 mm

• Net Weight: 10.8 kg

• Gross Weight: 14 kg

• Power supply: Input: AC 100~240V，50/60Hz，350W

• Max travel speed: 600mm/s

• Printing speed Max Acceleration: 10-300 mm/s; 20000 mm/s²

• Filament type: *PLA/*PETG (0.4mm nozzle) *TPU/PLA-CF/PETG-CF (0.6mm nozzle) Note: Materials marked with *are recommended for printing

• Compatible operating system: Win7/8/10/11; Linux supports Ubuntu 20.04 and later versions The Mac OS supports 10.9 and later...

• Nozzle diameter:0.4 mm（default） 0.6mm/0.8mm/0.25mm（optional）

• Touch LCD screen: 4.3 Inch

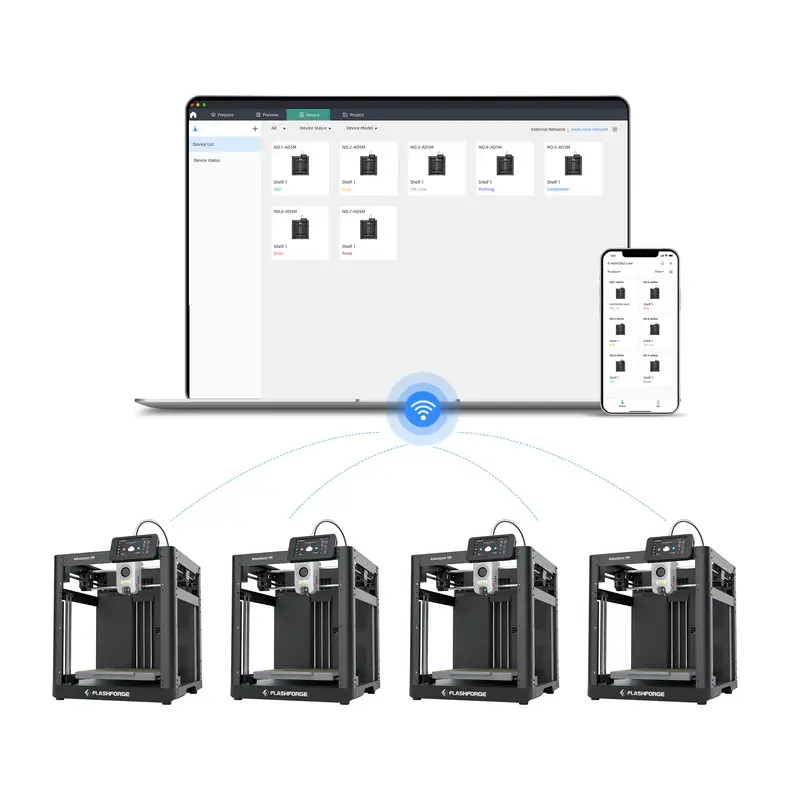

• Printing connection: USB Disk / WIFI / Ethernet

• Device size: "363 x 376 x 413 mm (excluding the display screen and spool holder); 363 x 402 x 448 mm (including the display screen and spool holder)

• Input/Output file type: Input：3MF/ STL / OBJ/FPP/BMP/PNG/JPG/JPEG； Output：GX/G

• Replaceable print bed: Yes

• Magnetic Printing bed: PEI flexible steel sheet

• Printing precision: X/Y axis：0.0125 mm； Z axis：0.0025 mm

• Multi-Color Printing: No
