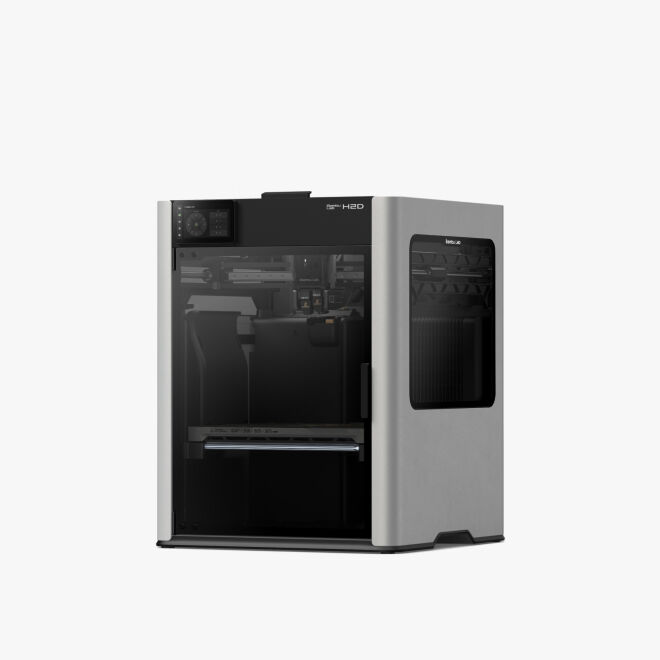

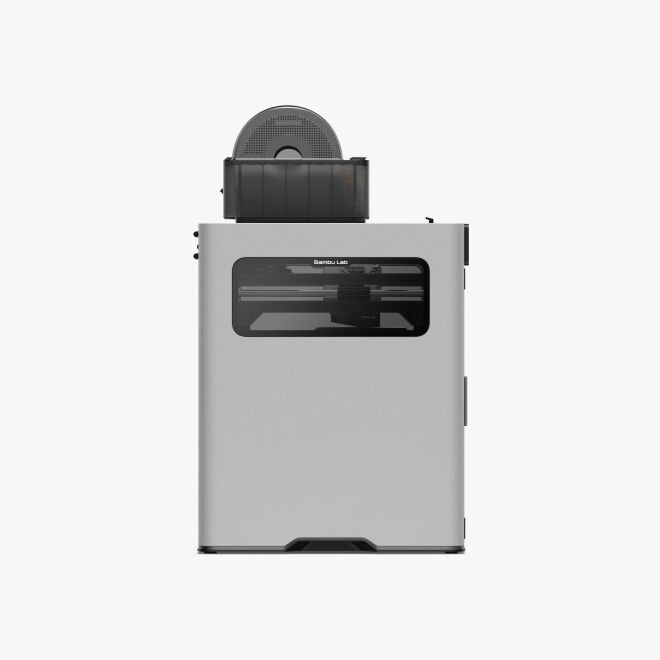

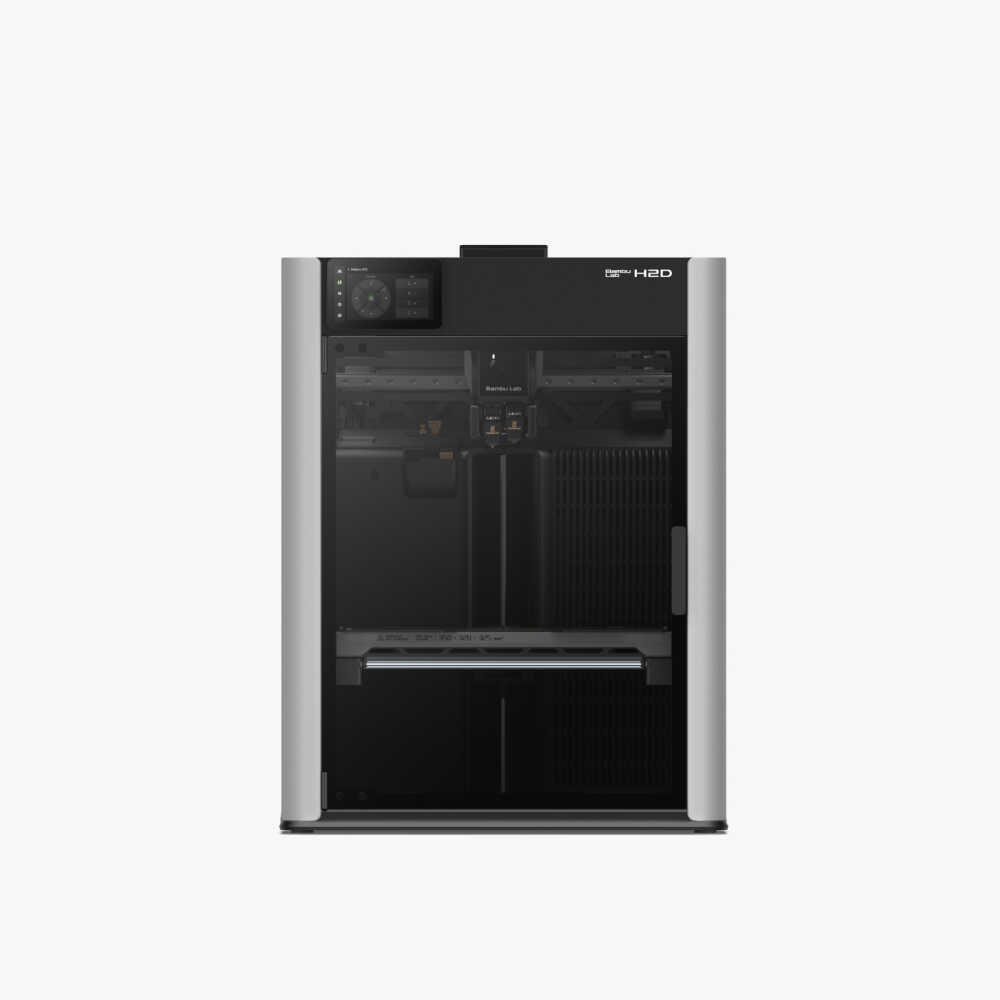

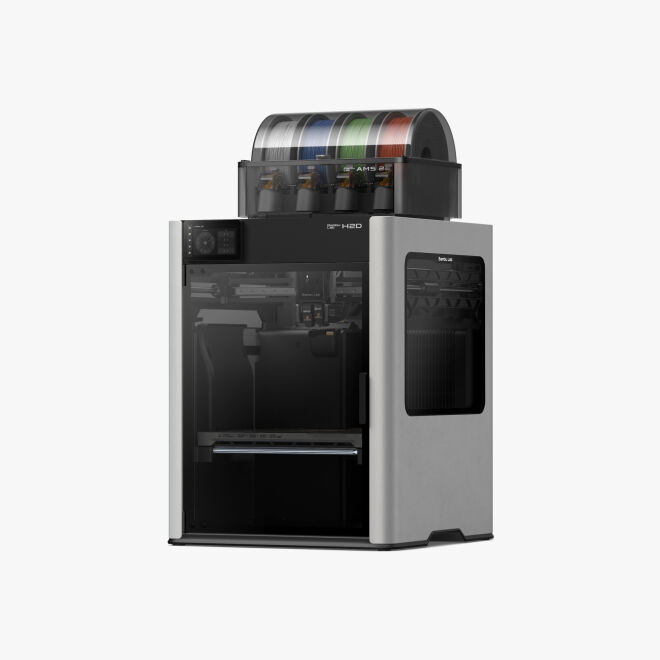

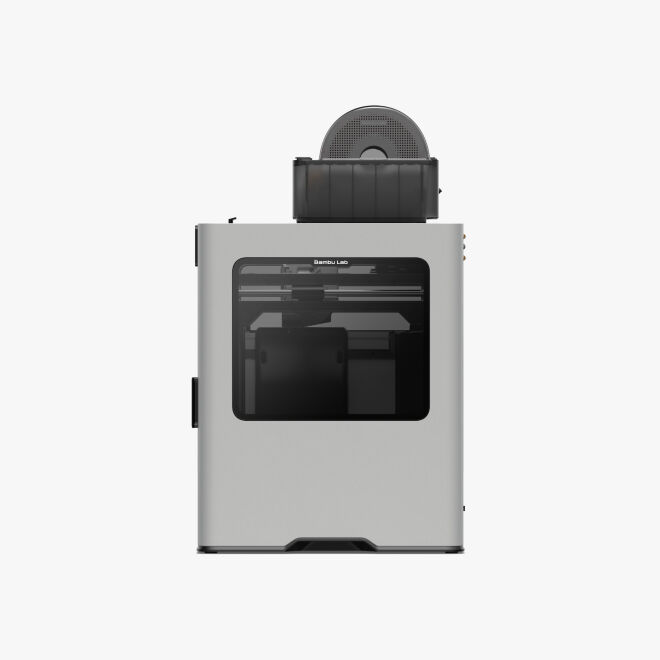

Notify me when its in stockBambu Lab H2D Combo 3D Printer
Bambu Lab H2D Combo is a professional 3D printer designed for advanced users, featuring a dual-nozzle architecture, large build volume, and industrial-grade speed/stability. The Combo package includes the AMS 2 Pro multi-material system. It offers a build area of 325 × 320 × 325 mm with a single nozzle and 300 × 320 × 325 mm with dual nozzles; the two nozzles’ combined reachable volume is 350 × 320 × 325 mm. With a 350 °C nozzle, 120 °C bed, and a 65 °C actively heated chamber, it runs stably even with demanding materials like ABS, ASA, PA, PC, PPS, and fiber-reinforced filaments. A maximum 1000 mm/s travel speed and 20,000 mm/s² acceleration drastically shorten turnaround on large projects.
H2D continuously monitors print quality via a multi-camera system (BirdsEye, nozzle, and internal chamber), closed-loop controlled fans, air purification with a G3 pre-filter + H12 HEPA + activated carbon, auto bed leveling, and advanced extrusion/filament-tracking sensors. The printer is fully compatible with Bambu Studio, Bambu Handy (Mobile), and Bambu Suite; it also supports Bambu Farm Manager and Bambu Connect for fleet management and remote access.
Thanks to its modular design, the printer can be expanded with laser engraving (10 W / 40 W), blade cutting, and pen plotting tools. The laser version adds rapid visual positioning, micro LiDAR for automatic focus/height measurement, and comprehensive safety (flame/door/temperature monitoring, overall Class 1 safety). This unifies printing, engraving, and cutting on a single platform to accelerate the entire journey from design to prototype.
Bambu Lab H2D Combo 3D Printer Technical Specifications:
| Printing Technology | FDM (Fused Deposition Modeling) |
| Build Volume | Single Nozzle: 325 × 320 × 325 mm | Dual Nozzle: 300 × 320 × 325 mm | Two-Nozzle Combined Reach: 350 × 320 × 325 mm |
| Max Travel Speed | 1000 mm/s |
| Max Acceleration | 20,000 mm/s² |
| Nozzle Temperature | Up to 350 °C |
| Heated Bed | Up to 120 °C | Flexible, magnetic PEI (textured; smooth PEI optional) |
| Enclosure (Chamber) | Active-heating supported, up to 65 °C |
| Nozzle Diameters | Included: 0.4 mm | Supported: 0.2 / 0.6 / 0.8 mm |
| Nozzle / Hotend | All-metal hotend, hardened steel nozzle |
| Extruder Motor / Gears | High-precision PMSM motor | Hardened steel gears |
| Max Flow | 40 mm³/s (Standard Hotend) |
| Auto Calibration | Fully automatic bed leveling; multi-sensor extrusion/filament monitoring |
| Camera System | BirdsEye (3264 × 2448, with laser version/kit), nozzle/toolhead (1920 × 1080), internal chamber (1920 × 1080) |
| Air Filtration | G3 pre-filter + H12 HEPA + granular activated carbon; VOC and particle filtration |
| Fans | Part cooling, hotend, control board, chamber exhaust & circulation, auxiliary cooling – closed-loop control |
| Material Compatibility | PLA, PETG, TPU, PVA/BVOH, ABS, ASA, PC, PA (Nylon), PET, PPS, PPA, and their carbon/glass-fiber-reinforced variants |
| Filament Diameter | 1.75 mm (run-out/cross-feed detection, tangle sensor; AMS 2 Pro (included in Combo) with odometry) |
| Screen & Storage | 5" capacitive touchscreen (720 × 1280) | 8 GB eMMC onboard + USB |
| Connectivity | Wi-Fi (no Ethernet) |
| Software / File | Bambu Studio / Suite, Bambu Handy; STL, 3MF → G-code output; basic compatibility with third-party slicers that generate standard G-code |
| Power | 100–120 VAC / 200–240 VAC, 50/60 Hz | Max 1320 W (@110 V) / 2200 W (@220 V) |
| Machine Dimensions / Weight | 492 × 514 × 626 mm | 31 kg (Combo package contents: H2D printer + AMS 2 Pro) |
| Laser Module (Opt.) | 10 W (±1 W) or 40 W (±2 W) – 455 nm blue, Class 4 module / overall Class 1; engraving area 310 × 270 mm (10 W) – 310 × 250 mm (40 W); cutting (poplar plywood) up to 5 mm (10 W) – 15 mm (40 W); Z-height measurement with micro LiDAR (± 0.1 mm) |
| Blade/Pen (Opt.) | Cutting area 300 × 285 mm; plotting area 300 × 255 mm; 45° × 0.35 mm blade, 50–600 gf pressure range; pen diameter 10.5–12.5 mm |
