Raspberry Pi Touch Display 2 - 5 Inch - 1

Raspberry Pi Touch Display 2 - 5 Inch - 2

Raspberry Pi Touch Display 2 - 5 Inch - 3

Raspberry Pi Touch Display 2 - 5 Inch

Name: Raspberry Pi Touch Display 2 - 5 Inch
Brand: Raspberry Pi
SKU: 23528
Price: 2249.31 TRY
Availability: InStock

Brand

: Raspberry Pi

Product Code

: 23528

Ekran

: 5"

Ekran Boyutu

: 91.46 mm×143.4 mm

Ekran Formatı

: 24-bit RGB

Ekran Tipi

: LCD TFT

Fiyat

: 1,874.42 TL + VAT

KDV Dahil Fiyat

: 2,249.31 TL

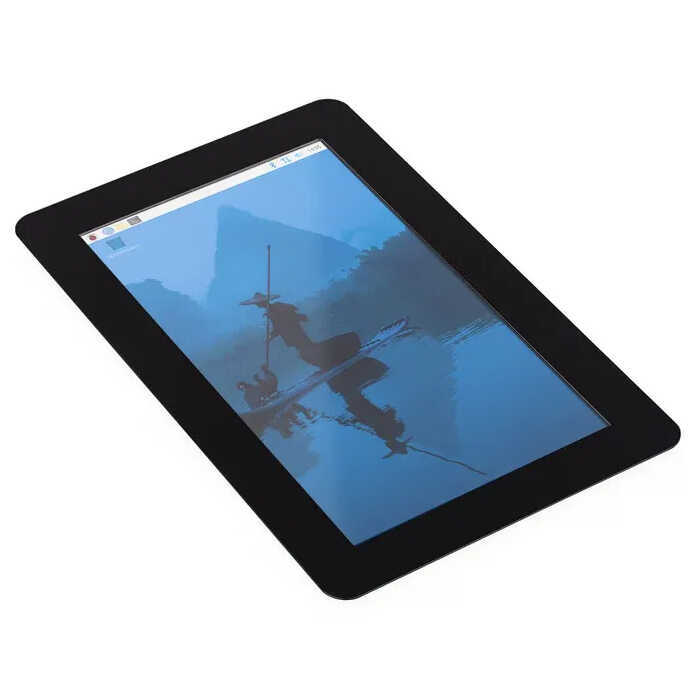

Raspberry Pi Touch Display 2

The Raspberry Pi Touch Display 2 is a 5-inch touchscreen with a resolution of 720x1280 designed for Raspberry Pi. It is ideal as a compact monitor for the Raspberry Pi OS desktop or for interactive projects like entertainment systems, home automation, and information panels. Raspberry Pi OS provides full functionality by offering five-finger capacitive touch support and an on-screen keyboard, eliminating the need to connect an external keyboard or mouse.

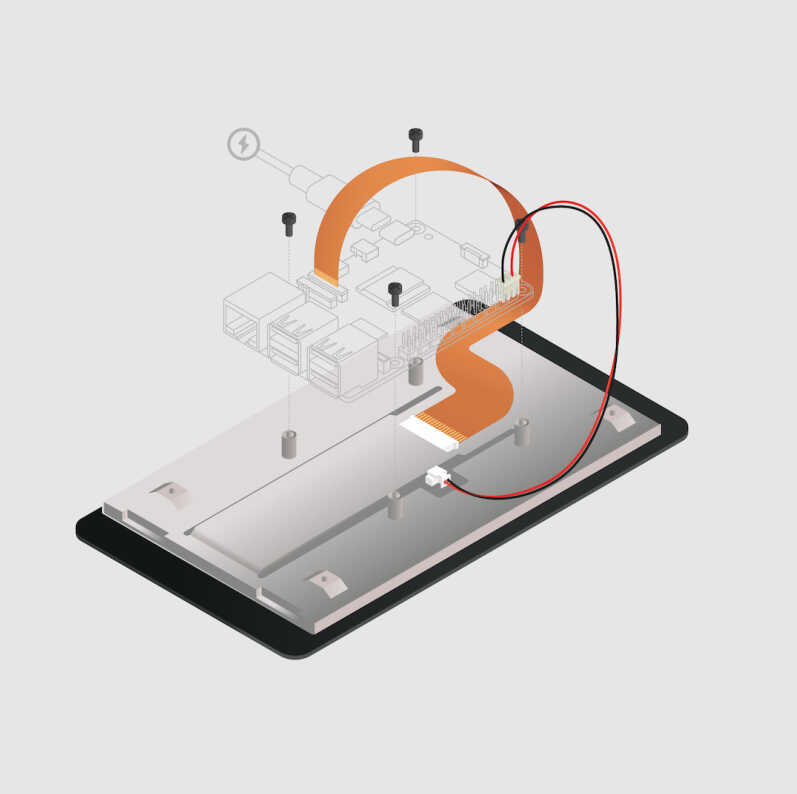

Connecting the display to the Raspberry Pi requires just two connections: power from the GPIO port and a ribbon cable that connects to the DSI port. The Raspberry Pi provides enough power to run the display, so no separate power supply is required.

Raspberry Pi Touch Display 2 Technical Specifications:

Mounting: Mounting points on the back of the display (screws included)
Dimensions: 189.32mm x 120.24mm
Display Size: 5 inches
Display Resolution: 720x1280 pixels (in portrait mode, can also be used in landscape mode via software)
Active Area: 88mm x 155mm
LCD Type: TFT, normally white, transmissive
Color Configuration: RGB-strip
Backlight Type: LED B/L (Backlight)

Raspberry Pi Touch Display 2 Connections:

DSI Connector: Compatible with all Raspberry Pi boards (except Raspberry Pi Zero and Pi 400 series)

Connections: Power from GPIO port and ribbon cable connected to the DSI port
Power Supply: The Raspberry Pi provides enough power to drive the display (no separate power supply needed)

Raspberry Pi Touch Display 2 Touch Features:

Five-finger capacitive touch support
True multi-touch support
Anti-glare surface coating

Compatible Models:

All Raspberry Pi models from Raspberry Pi 1B+ onwards (except Raspberry Pi Zero and Zero 2 W).

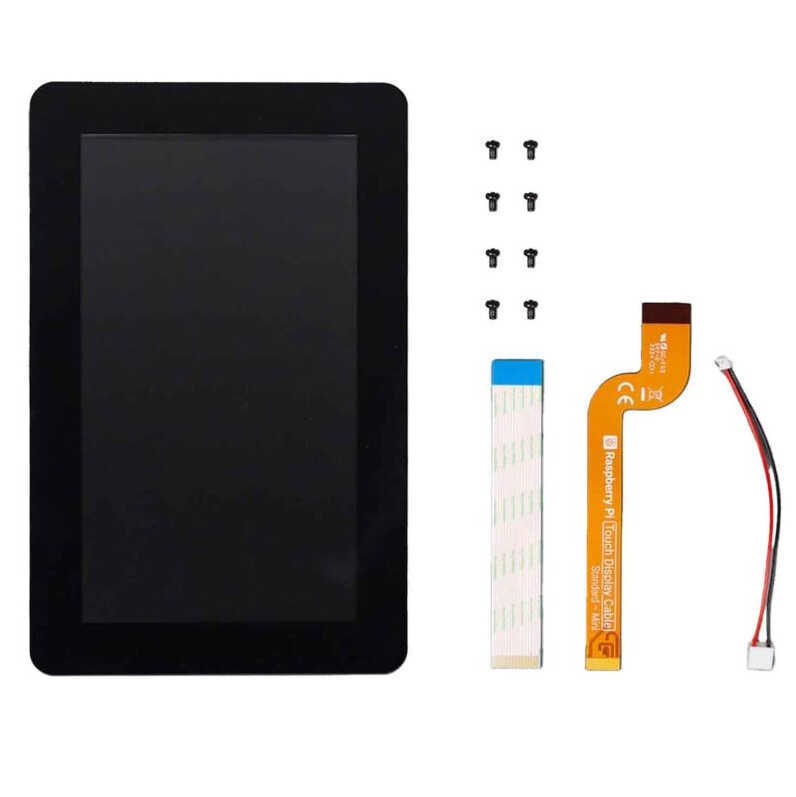

Raspberry Pi Touch Display 2 Package Contents:

1 x Raspberry Pi 5" Touch Display 2
8 x M2.5 screws
15-pin-15-pin FFC (Flexible Flat Cable)
22-pin-15-pin FFC for Raspberry Pi 5
GPIO connector cable
