74LS86 DIP-14 Quad 2-Input XOR Gate IC

74LS86 DIP-14 Quad 2-Input XOR Gate IC

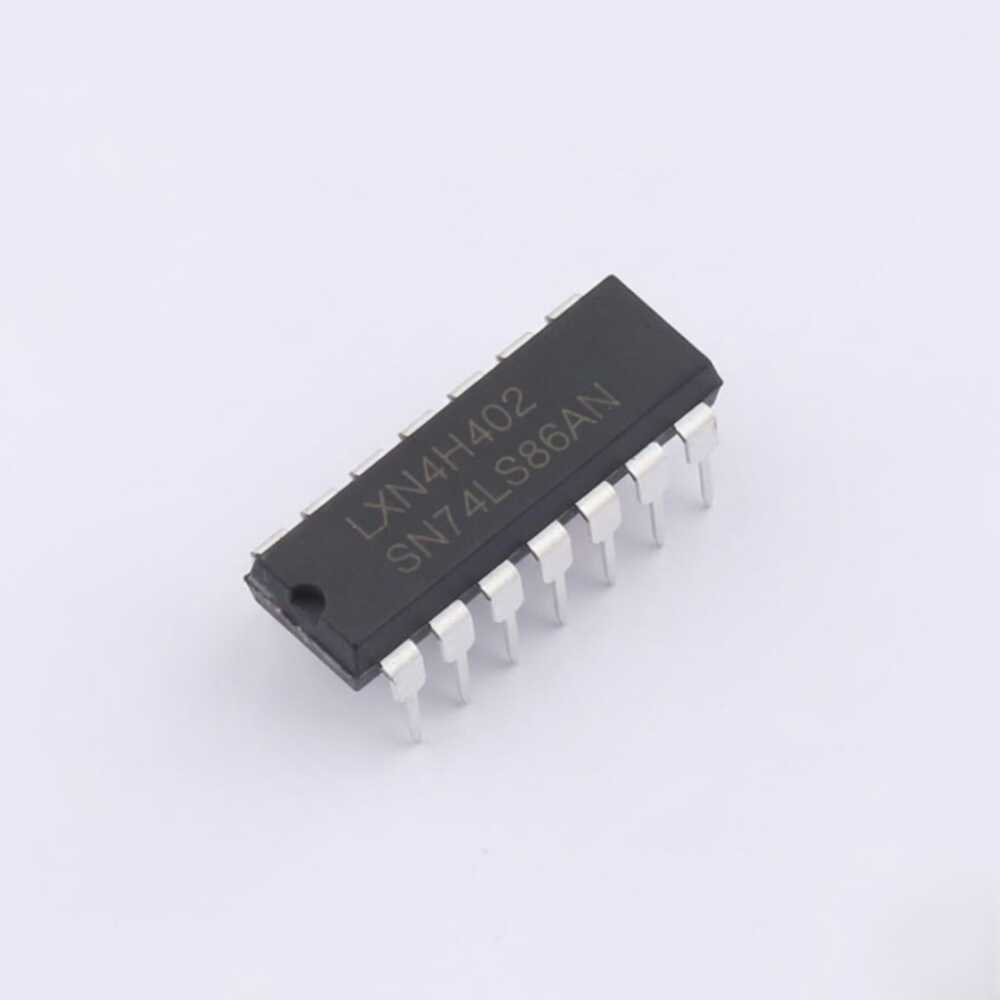

The 74LS86AN is a logic integrated circuit from the TTL-based 74LS series, containing four independent XOR (Exclusive-OR) logic gates. It is widely used in digital electronic circuits for comparison operations, adder circuits, error detection, and signal processing applications.

Thanks to its XOR gate functionality, the output is active when the two input signals are different. The DIP-14 package makes soldering and prototyping easy, making it suitable for educational, hobby, and development projects.

74LS86AN Technical Specifications:

• TTL logic family (74LS series)

• 4 XOR (Exclusive-OR) logic gates

• Supply voltage: 2V – 6V

• Typical propagation delay: 14ns @ 6V

• Input logic level (Low): 500mV – 1.8V

• Output logic level (Low): 100mV – 260mV

• Output current (High / Low): 5.2mA

• Quiescent current (Iq): 2µA

• Operating temperature: -40°C ~ +125°C

• Package type: DIP-14

Useful Links / Documents:

• Datasheet
• EasyEDA Model

Similar Products:

• TTL & CMOS Series ICs
