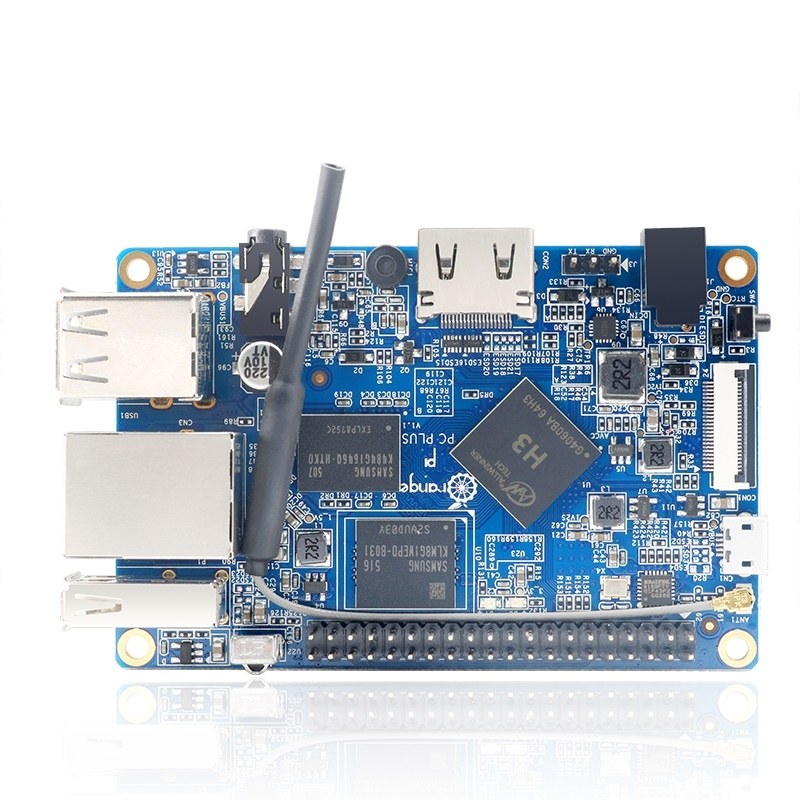

It’s an open-source single-board computer. It can run Android 4.4, Ubuntu, Debian, Rasberry Pi Image. It uses the AllWinner H3 SoC, and has 1GB DDR3 SDRAM.
The board can not be powered via the USB-OTG connector. You need to use Orange Pi Power Adapter.
Technical Specs:
- H3 Quad-core Cortex-A7 H.265/HEVC 4K
- Mali400MP2 GPU @600MHz (Supports OpenGL ES 2.0)
- 2GB DDR3 RAM (shared with GPU)
- 8GB eMMC memory
- Micro SD/TF card slot (max. 64GB)
- 10/100M ethernet
- Realtek RTL8189ETV, IEEE 802.11 b/g/n WiFi (u.FL antenna)
- On-board microphone
- On-board IR receiver
- Camera connector (CSI), supports 1080p 30 fps video
- 3.5mm TRRS (4 connectors) composite analog video/audio output
- HDCP and HDMI CEC supported HDMI
- 3x USB host
- 1x USB OTG
- Raspberry Pi B+/Pi 2/Pi 3/Zero compatible 40-pin GPIO
- TTL level UART for debug
- Power and status LEDs
- Supported OS:Linux Android, Ubuntu, Debian, Raspberry Pi Image
- Dimensions: 85 mm × 48mm
- Weight: 38gr
