Demedukit Education Kit

Demedukit Education Kit

DEMEDUKIT is a resource that will help you step into the exciting world of embedded systems. Embedded systems are systems that use microcontrollers and microcontrollers, which form the basis of almost every technological device today. This card and this documentation are designed for those who want to learn, apply, and experience the basics of embedded systems.

This development board includes ESP32 and STM32G030 microcontrollers. ESP32 stands out with its dual-core processor, WiFi and Bluetooth support, digital inputs/outputs, internal antennas, and luxurious analog features. STM32G030 stands out with its ARM Cortex-M0+ core, low power consumption, wide connection options, high-speed I/O pins, and flexible memory structure. These two microcontrollers form the basis of the board and offer wide potential for different application areas.

Demedukit Education Kit Technical Specifications:

• 48-LQFP package STM32G030 microcontroller
• ESP32 microcontroller
• Eleven LEDs: 5 digital output LEDs (LD2, LD3, LD4, LD5, LD6), 1 RGB LED (RGB1), 1 Power LED (LD1), 2 Micro USB LEDs (RX1, TX1), 2 digital output LEDs (ELD1, ELD2)
• Five buttons: 3 digital input buttons, 1 STM Reset Button, 1 ESP Reset Button
• Board power supply: Micro USB (5V), External Power Input (3.3V)
• On-board ST-LINK/V2 debugger and programmer with SWD connector
• 2 Trimpots (Analog Input)
• 3 External Sensor Inputs (Digital / Analog)
• 1 NTC (Analog Input)
• 1 LDR (Analog Input)
• 1 piece 3 Axis Accelerometer
• External I2C connection
• 1 Buzzer (Audible Alert)
• 1 Battery for RTC application

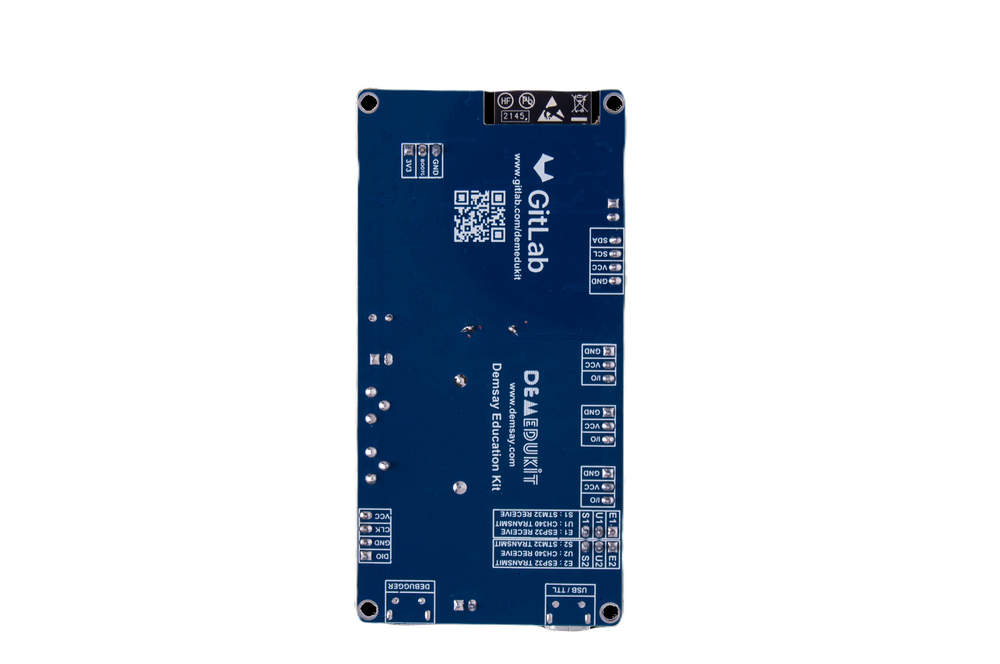

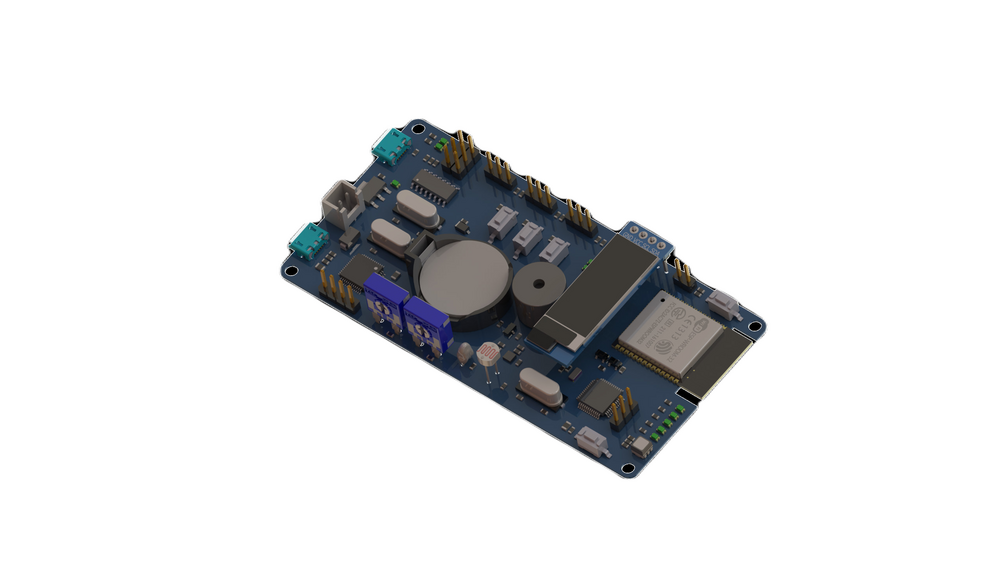

Hardware Layout:
